Basic Info

Model No.: BODA-074

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

1. Suction pressure ≤1.0MPa, or pump system maximum working pressure ≤1.6MPa, ie suction pressure + pump head ≤1.6MPa, pump static pressure test pressure ≤2.5MPa, please indicate system working pressure when ordering. When the working pressure of the pump system is greater than 1.6MPa, it should be separately proposed at the time of ordering, so that the over-flow part and the connecting part of the pump are made of cast steel material during manufacture.

2, explosion-proof centrifugal pump ambient temperature <40 ° C, relative humidity <40%.

3. The volume of solid particles in the medium to be transported does not exceed 0.1 per unit volume, and the particle size is <0.2 mm.

Note: If the medium is made of fine particles, please specify when ordering, so that the factory adopts wear-resistant mechanical seal.

Main purpose of explosion-proof centrifugal pump

1. ISG vertical explosion-proof centrifugal pump is used for conveying clean water and other liquids with physical and chemical properties similar to clean water. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire boosting, long-distance transportation, Heating and cooling cycle, bathroom and other cold and warm water circulation pressurization and equipment matching, the use temperature T <80 °C.

2. IRG vertical hot water explosion-proof centrifugal pump is suitable for metallurgical, chemical, textile, wood processing, papermaking, high temperature hot water pressurized circulation of boilers in hotels, bathrooms, hotels, etc., as well as pumps for urban housing heating and circulation. The temperature is 120 °C. the following.

3. GRG vertical high temperature explosion-proof centrifugal pump is widely used in: energy, metallurgy, chemical, textile, papermaking, high temperature hot water pressurized circulation of boilers, hotels, bathrooms, hotels, etc., as well as urban housing heating cycle pumps, using temperature 240 °C the following.

4. IHGB vertical stainless steel explosion-proof centrifugal pump for conveying liquids without solid particles, corrosive and viscosity similar to water, suitable for petroleum, chemical, metallurgy, electric power, paper, food, pharmaceutical and synthetic fiber sectors, use temperature It is -20 ° C ~ 120 ° C.

5. YG type pipeline oil pump for conveying petroleum products such as gasoline, kerosene and diesel oil. The temperature of the medium to be transported is -20 °C ~ + 120 °C.

6. IHGB vertical stainless steel explosion-proof centrifugal pump is suitable for conveying flammable chemical liquids.

7. ISGD, IRGD, GRGD, IHGH, YGD, IHGBD vertical low-speed centrifugal pumps are suitable for occasions where environmental noise requirements are low and air conditioning cycles.

Explosion-proof centrifugal pump features

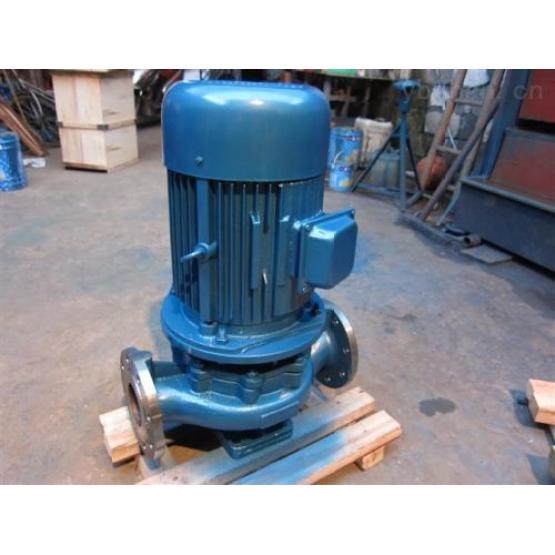

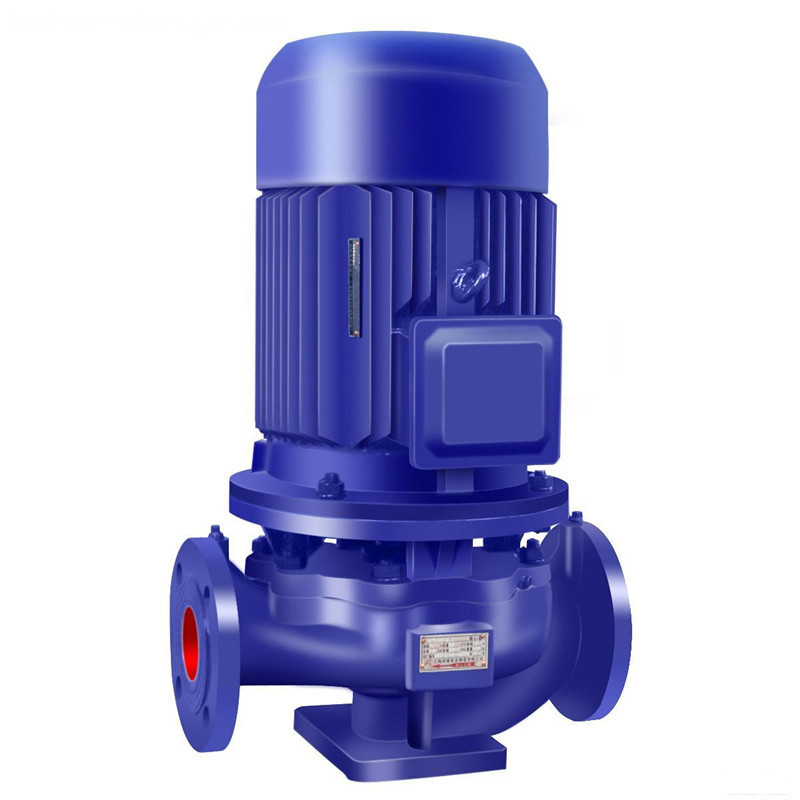

1. The explosion-proof centrifugal pump is of vertical structure, the inlet and outlet diameters are the same, and they are located on the same center line. They can be installed in the pipeline like a valve. The shape is compact and beautiful, the floor space is small, and the construction investment is low, such as protection. The cover can be placed outdoors.

2. The impeller is directly mounted on the long shaft of the motor. The axial dimension is short and the structure is compact. The pump and motor bearing are properly arranged, which can effectively balance the radial and axial loads generated by the pump operation, thus ensuring stable operation of the pump. Low vibration and low noise.

3. The shaft seal adopts mechanical seal or mechanical seal combination. It adopts imported titanium alloy seal ring, medium-sized high temperature resistant mechanical seal and hard alloy material. It is wear-resistant and seal, which can effectively extend the service life of mechanical seal.

4. Explosion-proof centrifugal pump is easy to install and repair, no need to dismantle the pipeline system, just remove the pump joint nut to extract all the rotor parts.

5. The series and parallel operation of the pump can be adopted according to the requirements of use, ie flow and head.

6. Explosion-proof centrifugal pumps can be installed in vertical and horizontal directions depending on the piping layout.

Explosion-proof centrifugal pump working conditions

1. Suction pressure ≤1.0MPa, or pump system maximum working pressure ≤1.6MPa, that is, suction pressure + pump head ≤1.6MPa, pump static pressure test pressure ≤2.5MPa, please indicate the system working pressure when ordering. When the working pressure of the pump system is greater than 1.6MPa, it should be separately proposed at the time of ordering, so that the over-flow part and the connecting part of the pump are made of cast steel material during manufacture.

2. Explosion-proof centrifugal pump ambient temperature <40 ° C, relative humidity <40%.

3. The volume of solid particles in the medium to be transported does not exceed 0.1 per unit volume, and the particle size is <0.2 mm.

Note: If the medium is made of fine particles, please specify when ordering, so that the factory adopts wear-resistant mechanical seal.
