Model No.: BODA-077

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

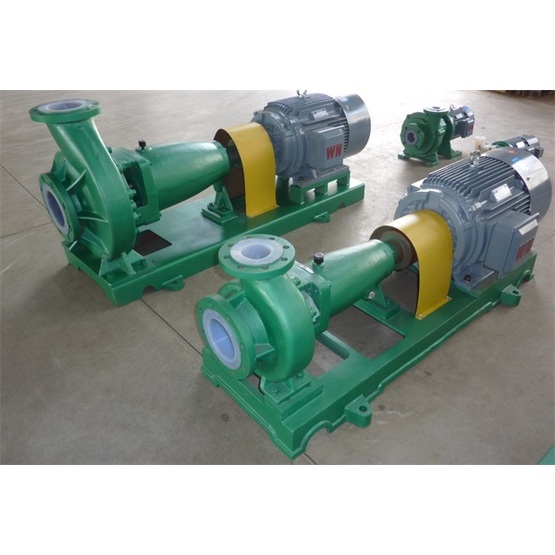

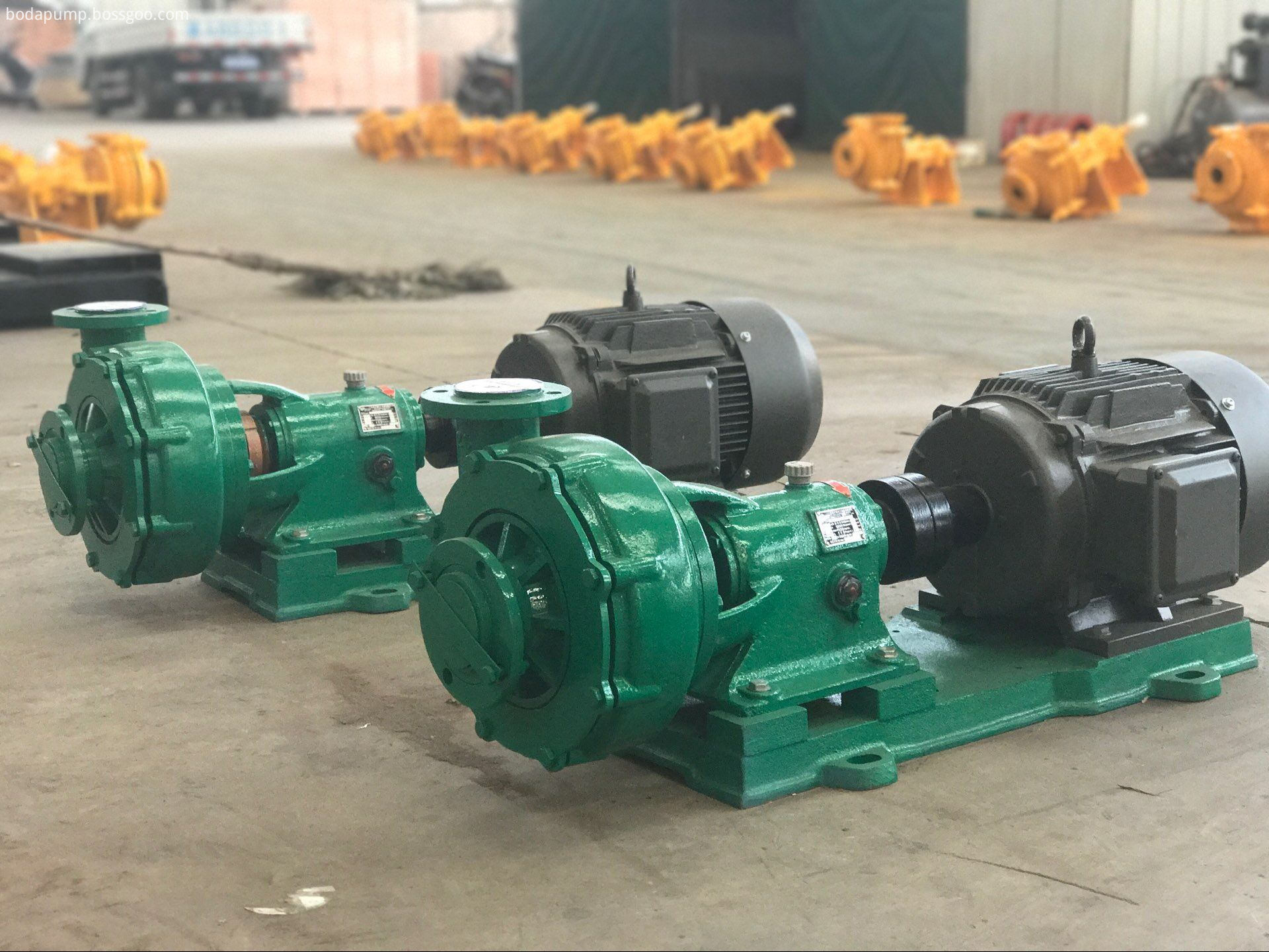

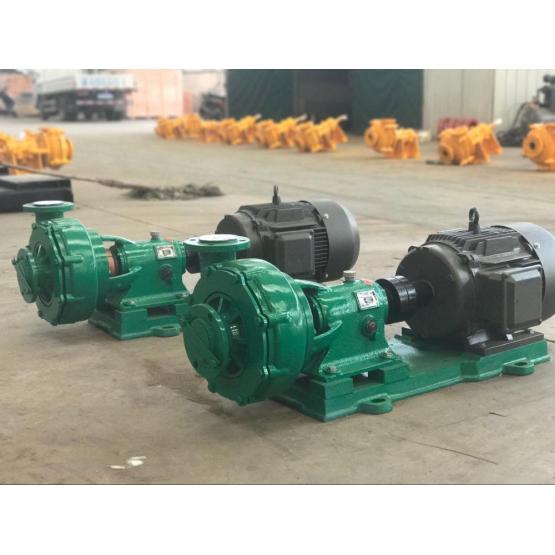

IH type stainless steel chemical centrifugal pump structural features

The pump cover of the IH stainless steel chemical centrifugal pump is fixed on the intermediate bracket through the stop, and then the pump cover is clamped in the middle by the connection of the pump body and the intermediate bracket stop. The pump body is axially sucked, radially discharged, and the foot is supported. Can be fixed directly to the base. The suspension component is fixedly secured to the intermediate bracket by a stop and supported on the base by a suspension bracket. For the convenience of disassembly, the extension coupling is designed, and the inlet and outlet connection pipes, the pump body and the electric motor can be omitted during maintenance. Simply remove the intermediate coupling of the coupling and exit the rotor assembly for service.

The direction of rotation of the IH stainless steel chemical centrifugal pump

The IH type stainless steel chemical pump is directly driven by the motor through the extension coupling, and rotates clockwise from the motor end.

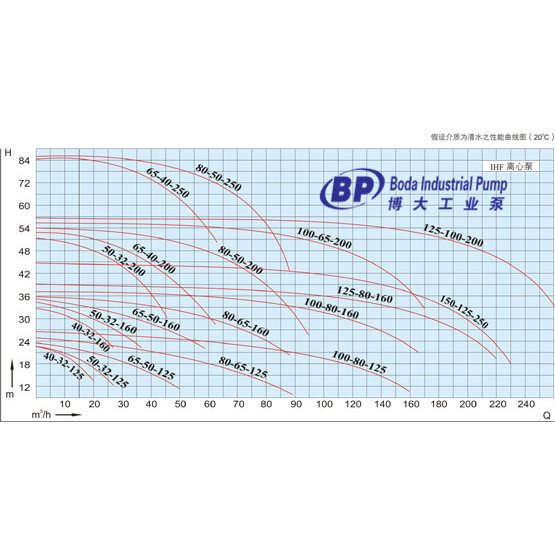

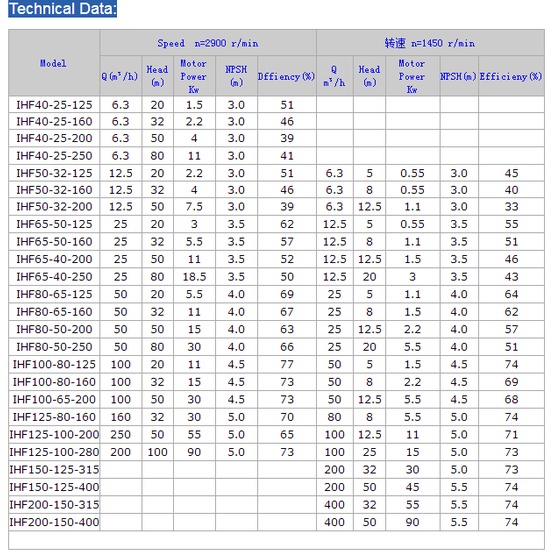

IH type stainless steel chemical centrifugal pump performance range

Flow rate Q: 6.3 ~ 400m3 / h

Head H: 5 ~ 132m

Speed n: 2900, 1450r/min

With power: 0.55 ~ 110KW

Import diameter: 50 ~ 200mm

High working pressure: 1.6Mpa

The IH type chemical pump has 29 basic types, of which 22 double speeds (2900, 1450r/min) have been cut into 112 specifications after A and B types of impeller diameter cutting.

IH type stainless steel chemical centrifugal pump use conditions

The high working design pressure of the IH stainless steel chemical pump is 1.6 MPa. The medium temperature is not higher than 80 °C. If necessary, double-face sealed cooling device can be used to transport the medium temperature from 20 °C to +280 °C.

Note: The user can select different materials for the main parts of the over-flow part of the pump according to the degree of corrosiveness of the medium to be transported.

Shaft seal type of IH stainless steel chemical centrifugal pump

Packing seal: There is a stuffing box inside the pump cover, which is sealed with soft packing. The packing box can be filled with water with a certain pressure for sealing, cooling, lubrication and cleaning.

Mechanical seal: single-end mechanical seal and double-face mechanical seal. The seal chamber is filled with a certain pressure of water, flushing both ends of the friction, and at the same time cooling.

 The seal type of the pump adopts packing seal or mechanical seal, which can be applied by users according to requirements. At the same time, it is allowed to adopt the shaft seal type suitable for ISO3069 and the other structure, such as mechanical seal with bellows and impeller seal. and many more.

IH type chemical pump transport medium temperature is -20 ° C ~ 105 ° C, when needed, double-face sealed cooling device, the medium temperature can be transported from 20 ° C to +280 ° C. Suitable for use in industries such as chemical, petroleum, metallurgy, power, paper, food, pharmaceutical, environmental, wastewater and synthetic fibers to transport a variety of corrosive or non-contaminating water-like media.
