Basic Info

Model No.: BODA-198

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

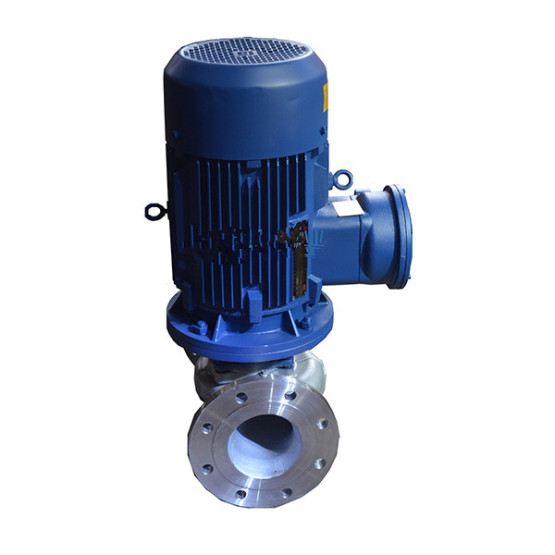

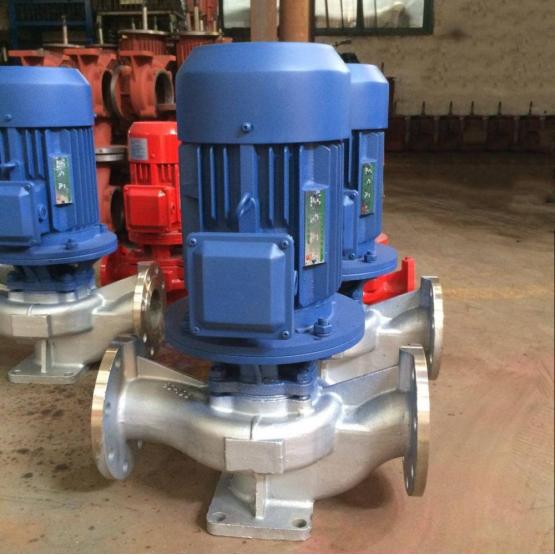

IHG stainless steel corrosion resistant pipeline pump

1. It is a vertical structure with the same diameter and diameter, and is located on the same center line. It can be installed in the pipeline like a valve. The shape is compact and beautiful, the floor space is small, and the building investment is low. Used outdoors.

2. The impeller is directly mounted on the long shaft of the motor. The axial dimension is short and the structure is compact. The pump and motor bearings are arranged reasonably, which can effectively balance the radial and axial loads generated by the pump operation, thus ensuring stable operation of the pump. Low vibration and low noise.

3. The shaft seal adopts mechanical seal or mechanical seal combination. It adopts imported titanium alloy seal ring, medium-sized high temperature resistant mechanical seal and hard alloy material, wear-resistant seal, which can effectively extend the service life of mechanical seal.

4, installation and maintenance is convenient, no need to dismantle the pipeline system, as long as the pump joint body nut is removed to extract all the rotor components.

5. The series and parallel operation modes of the pump can be adopted according to the requirements of use, that is, the flow and the head.

6. The vertical and horizontal installation of the pump can be used according to the requirements of the pipeline arrangement.

Stainless steel pipeline pump product features

1. The stainless steel pipeline pump is a vertical structure with the same diameter and diameter, and is located on the same centerline. It can be installed in the pipeline like a valve. The shape is compact and beautiful, the floor space is small, and the construction investment is low, such as protection. The cover can be placed outdoors.

2. The stainless steel pipeline pump impeller is directly mounted on the long shaft of the motor. The axial length is short and the structure is compact. The pump and motor bearings are arranged reasonably, which can effectively balance the radial and axial loads generated by the pump operation, thus ensuring the pump. Smooth operation, low vibration and low noise.

3, stainless steel pipe pump shaft seal uses mechanical seal or mechanical seal combination, using imported titanium alloy seal ring, medium-sized high temperature mechanical seal and hard alloy material, wear-resistant seal, can effectively extend the service life of mechanical seal.

4, stainless steel pipeline pump installation and maintenance is convenient, no need to dismantle the pipeline system, as long as the pump joint body nut can be removed to extract all the rotor components.

5, stainless steel pipeline pump can be used according to the requirements of use, that is, the flow and head requirements of the pump series, parallel use.

6, stainless steel pipeline pump can be used according to the requirements of pipeline layout vertical and horizontal installation of the pump.

Stainless steel pipeline pump main use

1. ISG vertical pipeline centrifugal pump is used for conveying clean water and other liquids with physical and chemical properties similar to clean water. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire boosting, long distance transportation, warm Through the refrigeration cycle, bathroom and other cold and warm water circulation pressurization and equipment, the use temperature T <80 °C.

2, IRG type hot water pipe centrifugal pump is widely used in: energy, metallurgy, chemical, textile, paper, and hotels and other high-temperature hot water pressurized circulating pump and urban heating system circulating pump, IRG type use temperature T <120 °C, GRG type use temperature T <240 °C.

3, IHG stainless steel pipe centrifugal pump, for transporting solids without solid particles, corrosive, viscosity similar to water, suitable for petroleum, chemical, metallurgy, electric power, paper, food and pharmaceutical and synthetic fiber sectors, the use temperature is -20 ° C ~ 120 ° C.

4. YG vertical pipeline centrifugal oil pump is used to transport petroleum products such as gasoline, kerosene and diesel. The temperature of the medium to be transported is -20 °C ~ + 120 °C.

5. IHGB vertical explosion-proof chemical pump delivers body fluids that are free of solid particles and are corrosive and have a viscosity similar to water and are flammable and explosive. Applicable to textile, petroleum, chemical, metallurgy, mining, pharmaceutical and synthetic fiber departments, the use temperature -20 ° C ~ 120 ° C.

Note: stainless steel pipeline pump suction pressure ≤1.0MPa, or pump system high working pressure ≤1.6MPa, that is, suction pressure + pump head ≤1.6MPa, pump static pressure test pressure ≤2.5MPa, please indicate system working pressure when ordering . When the working pressure of the pump system is greater than 1.6MPa, it should be separately proposed at the time of ordering, so that the over-flow part and the connecting part of the pump are made of cast steel material during manufacture. Ambient temperature <40 ° C, relative humidity <95.

Stainless steel pipeline pump model meaning

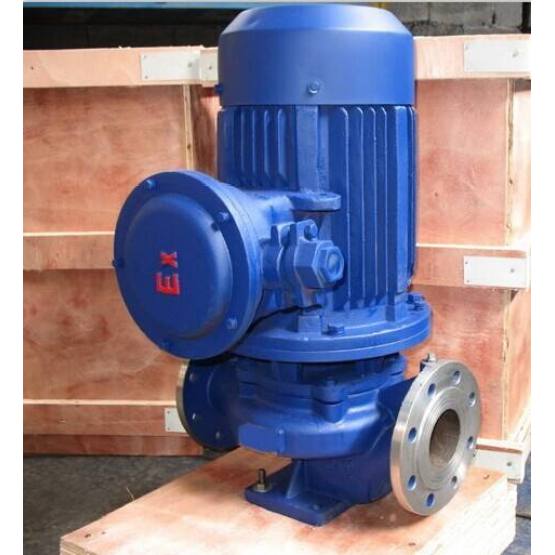

IHGB vertical stainless steel explosion-proof pipe centrifugal pump

Example: ISG50-160(I)A

IHGB-Vertical single-stage pipeline centrifugal pump

IHGB-Vertical single-stage hot water pipe centrifugal pump

IHGB-Vertical single-stage hot water pipe centrifugal pump

IHG-Vertical single-stage stainless steel chemical pump
