Basic Info

Model No.: BODA-197

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

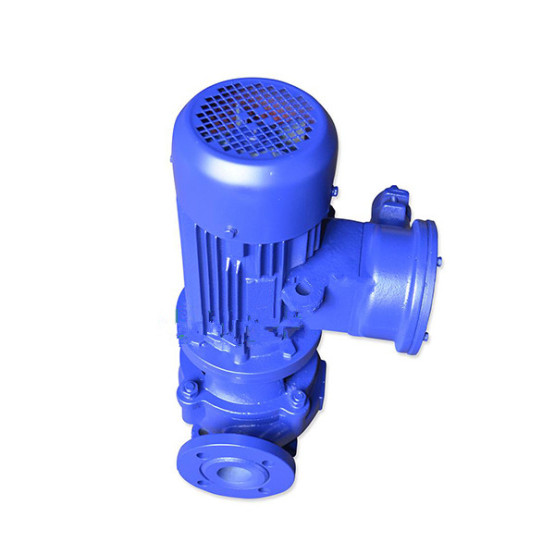

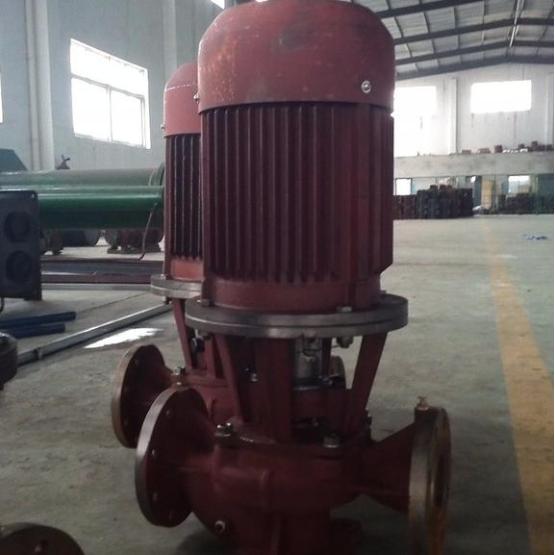

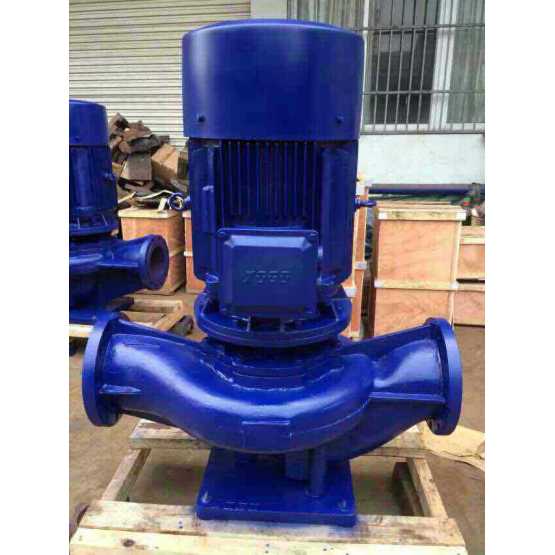

IGF type explosion-proof lining fluorine pipeline pump

Flow rate (Q) 2.5-400m3/h

Head (H) 15-80m

Working pressure (P) 2.5MPa

product description

      Fluoroplastics is an excellent corrosion-resistant material in the world today. The Yangtze River pump industry uses the IGF-type fluorine-lined pipeline pump produced by this material. In combination with the domestic excellent hydraulic model and the performance parameters of the IS-type centrifugal pump, it is designed ingeniously on the basis of the general vertical pump. This product has excellent corrosion resistance and can replace precious metals such as 316L stainless steel and titanium alloy, and it has the advantages of energy saving, low noise and reliable performance.

Features

1. The pump is of vertical structure, the inlet and outlet are the same, and they are located on the same center line. If the protective cover is added, it can be used outdoors.

2. The impeller is directly installed in the motor bearing arrangement, which can effectively balance the radial and axial loads generated by the pump operation, thus ensuring the balance of the pump operation and low vibration noise.

3. The shaft seal adopts the combination of ordinary type and particle-resistant mechanical seal and mechanical seal, which is wear-resistant and corrosion-resistant, and can effectively increase the service life of the mechanical seal.

4. The series and parallel operation modes of the pump can be adopted according to the requirements of use, that is, the flow and the head.

Scope of use

IGF type lining fluorine pipeline pump is suitable for long-term delivery of acid, alkali, oxidant and other corrosive liquids at temperatures ranging from -85 °C to +200 °C. GF is used in petroleum, chemical, metallurgy, electric power, paper, flue gas desulfurization, dust removal, food and pharmaceutical and synthetic fiber sectors.

Performance parameter

Flow rate (Q) 2.5-400m3/h

Head (H) 15-80m

Working pressure (P) 2.5MPa

Design Features

(1) The pump is of vertical structure, the inlet and outlet are the same diameter, and they are located on the same center line. They can be installed in the pipeline like a valve. The shape is compact and beautiful, the floor space is small, and the construction investment is low, such as adding a protective cover. Can be used outdoors.

(2) The impeller is directly mounted on the extension shaft of the motor. The axial dimension is short and the structure is compact. The pump and motor bearings are arranged reasonably, which can effectively balance the radial and axial loads generated by the pump operation, thus ensuring smooth operation of the pump. The vibration noise is very low.

(3) The shaft seal adopts mechanical seal or mechanical seal combination. It adopts imported titanium alloy seal ring, medium-sized high temperature resistant mechanical seal and hard alloy material. It is wear-resistant and seal, which can effectively increase the service life of mechanical seal.

(4) It is convenient to install and repair, no need to dismantle the pipeline system, just remove the pump joint nut to extract all the rotor parts.

(5) The series and parallel operation modes of the pump can be adopted according to the requirements of use, that is, the flow rate and the head.

(6) The vertical and horizontal installation of the pump can be used according to the requirements of the pipeline arrangement.
