Basic Info

Model No.: BODA-134

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Verticaljoint Surface Pump

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pump

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

1. Applicable to urban environmental protection, construction, fire protection, chemical, pharmaceutical, dye, printing and dyeing, brewing, electric power, electroplating, paper making, petroleum, mining, equipment cooling, oil tanker unloading, etc.

2. It is suitable for clear water, sea water and chemical medium liquid with acidity and alkalinity and slurry with general paste (media viscosity ≤100 centipoise, solid content up to 30%).

3. Install the rocker-type nozzle, and then spray the water into the air, and then spray it into small raindrops. It is a good tool for farms, nurseries, orchards and tea gardens.

4. It can be used with any type and specification of filter press, and the slurry is sent to the filter machine for pressure filtration.

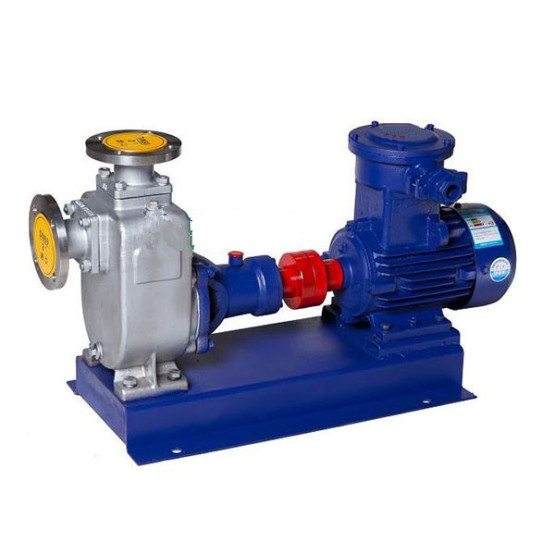

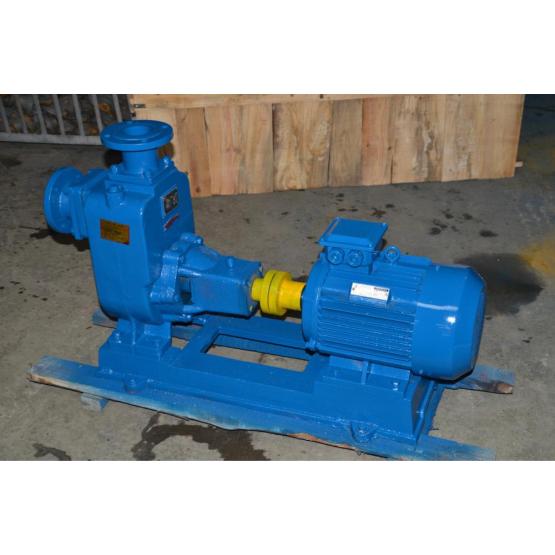

Explosion-proof self-priming pump product features

1. The stainless steel explosion-proof self-priming pump has a self-priming function. It is not necessary to install a bottom valve in the pipeline. It is only necessary to ensure that the pump body has a quantitative liquid introduction before the work, and it has the function of [primary drainage and self-priming for life". This simplifies the piping system and improves working conditions.

2. The explosion-proof self-priming pump has compact structure, convenient operation, stable operation, easy maintenance, high efficiency and long service life.

Explosion-proof self-priming pump product use

1. Applicable to urban environmental protection, construction, fire protection, chemical, pharmaceutical, dye, printing and dyeing, brewing, electric power, electroplating, paper making, petroleum, mining, equipment cooling, oil tanker unloading, etc.

2. It is suitable for clear water, sea water and chemical medium liquid with acidity and alkalinity and slurry with general paste (media viscosity ≤100 centipoise, solid content up to 30%).

3. Install the rocker-type nozzle, and then spray the water into the air, and then spray it into small raindrops. It is a good tool for farms, nurseries, orchards and tea gardens.

4. It can be used with any type and specification of filter press, and the slurry is sent to the filter machine for pressure filtration.

Explosion-proof self-priming pump working conditions

Flow rate: 3~500m3/h

Head: 10 ~ 80m

Ambient temperature ≤ 50 ° C

Medium temperature ≤100°C

Medium density ≤1.24×103kg/m3
