Basic Info

Model No.: BODA-209

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

Rated flow rate 5L/s~200L/s

Rated pressure 0.30MPa~1.5MPa

Speed 2900r/min; 1450r/min; 980r/min

Pump inlet pressure ≤0.3MPa

Pump working pressure ≤1.6MPa

Pump inlet and outlet caliber 65~350mm

Product Usage

The XBD series pumps are designed to deliver liquids below 80 °C that contain no solid particles or physicochemical properties similar to clean water, as well as lightly corrosive liquids.

This series of pumps is mainly used for the water supply of fixed fire protection systems (fire hydrant fire extinguishing systems, automatic sprinkler systems and water spray fire extinguishing systems) for industrial and civil buildings.

The performance parameters of the XBD series pump meet the requirements of the working (production) water supply condition under the premise of meeting the fire fighting conditions. The product can be used for the independent fire water supply system, and can also be used for the fire water, living (production) shared water supply system, and also available. For construction, municipal, industrial and mining water supply and drainage, and boiler feed water.

Product performance

Rated flow rate 5L/s~200L/s

Rated pressure 0.30MPa~1.5MPa

Speed 2900r/min; 1450r/min; 980r/min

Pump inlet pressure ≤0.3MPa

Pump working pressure ≤1.6MPa

Pump inlet and outlet caliber 65~350mm

Product Features

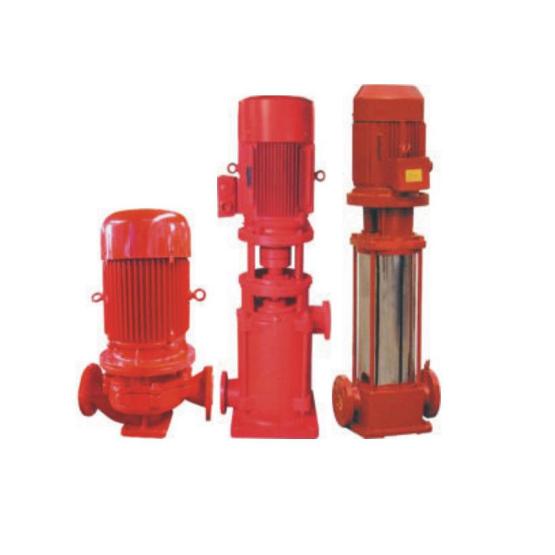

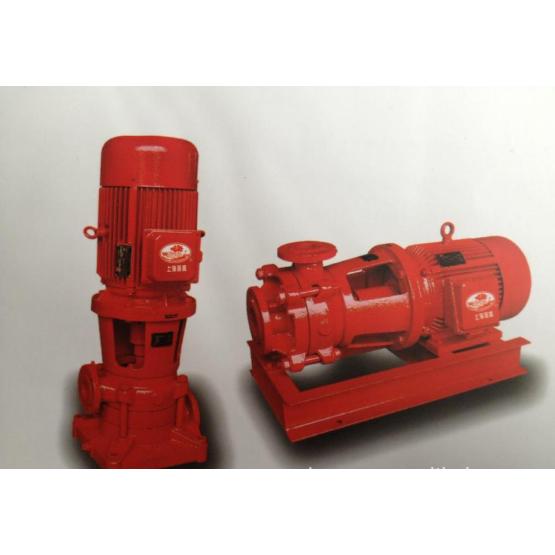

1. The pump is a single-stage single-suction centrifugal pump, and the installation form is vertical or horizontal.

2. It can be installed according to the conditions of use on site and in multiple ways. And rely on the flow, the head requires the use of, and serially increase the required flow, head.

3. The bearing adopts low-noise closed bearing. The grease has been injected at the factory to ensure continuous operation for more than two years.

4. The component has high concentricity, the pump impeller has excellent dynamic balance, and the operation is vibration-free, which improves the use environment.

5. The pump shaft seal is a mechanical seal, which solves the serious leakage of the conventional centrifugal pump packing, increases the service life, and ensures that the operating site is clean and tidy.

6. Parts that may generate friction when the pump rotates are made of wear-resistant, corrosion-resistant and highly resistant to the combination of materials to ensure reliable operation, reduce noise, avoid rust water, block spray and other fire-fighting devices, and greatly extend the service life. And rust and seizure after shutdown.
