Basic Info

Model No.: BODA-207

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

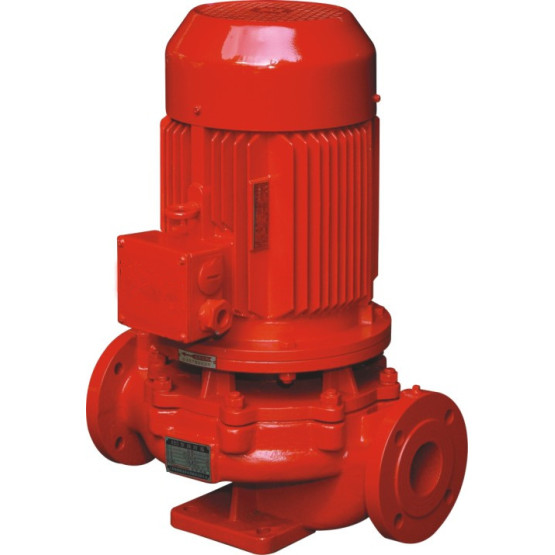

XBD (I) type fire rated pump product overview

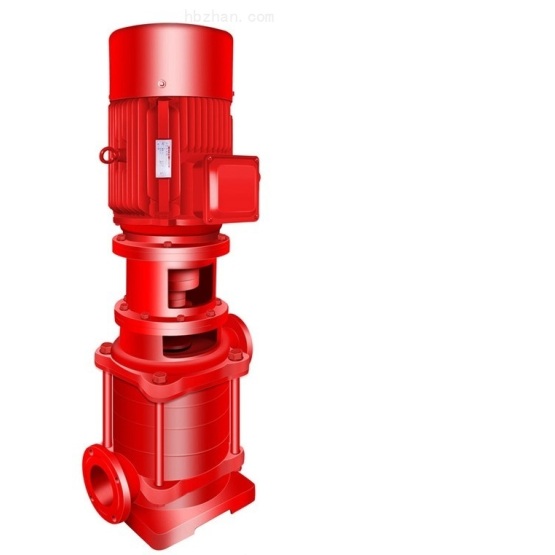

      The XBD(I) type fire-stabilized pump is a vertical multi-stage fire pump for conveying clean water without solid particles and liquid with physical and chemical properties similar to water. It is mainly used for pressurized water supply in fire protection systems, and can also be used for water supply and drainage of factories and mines. The flow rate of the transported liquid is 5 to 80 L/S, the pressure range is 0.2 to 2.25 MPa, the supporting power range is 1.5 to 200 KW, and the diameter range is φ50 to φ200 m.

      The XBD(I) type fire pump has the characteristics of energy saving, small floor space, convenient installation and stable performance. The jacket is made of 1Cr18Ni9Ti high-quality stainless steel. The shaft seal is wear-resistant mechanical seal, no leakage and long service life. The pump solves the axial force with hydraulic balance, so the pump runs smoothly, low noise, and the installation condition is better than the XBD-DL fixed multi-stage fire pump can be easily installed in the middle of any horizontal pipeline.

XBD (I) type fire rated pump product features

1. The multi-stage fire pump mechanism is compact, small in size and beautiful in appearance. Its vertical mechanism determines the installation area is small, and its center of gravity coincides with the center of the pump foot, thus enhancing the running stability and service life of the pump.

2. The multi-stage fire pump suction port and the spout outlet are horizontal, which simplifies the connection of the pipeline.

3, according to needs, the suction port and the spout can be installed in the same direction or 90 °, 180 °, 270 ° several different directions to meet different connection occasions.

4. The multi-stage fire pump pressure can be increased or decreased according to the need to increase the number of pump stages and cut the outer diameter of the impeller without changing the installation footprint, which is not available in other pumps.

5. The multi-stage fire pump rotor has a small degree of winding, stable operation, low vibration, low noise and long service life.

XBD (I) type fire rated pump product use

XBD-L fire pump is mainly used for pressurized water supply in fire protection system. It can also be applied to industrial and urban water supply and drainage, high-pressure building water supply, long-distance water supply, heating, bathroom, boiler, cold and warm water circulation, pressurized air conditioning and refrigeration system. Equipment and other occasions.
