Basic Info

Model No.: BODA-129

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Verticaljoint Surface Pump

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pump

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

1. Ambient temperature ≤ 45 ° C, medium temperature ≤ 60 ° C.

2. The medium PH value of the cast iron pump is 6-9, and the stainless steel pump is 1~14.

3, through the large diameter of the particles is 60% of the pump diameter, the fiber length is 5 times the diameter

4. The total weight of impurities in the medium does not exceed 15% of the total weight of the medium, and the specific gravity of the medium does not exceed 1240 kg/m3.

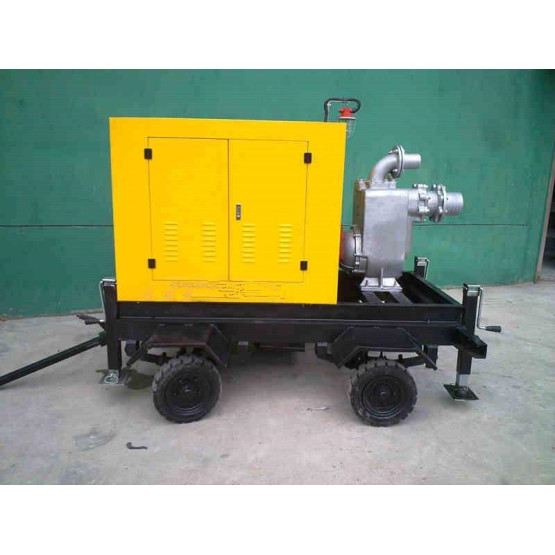

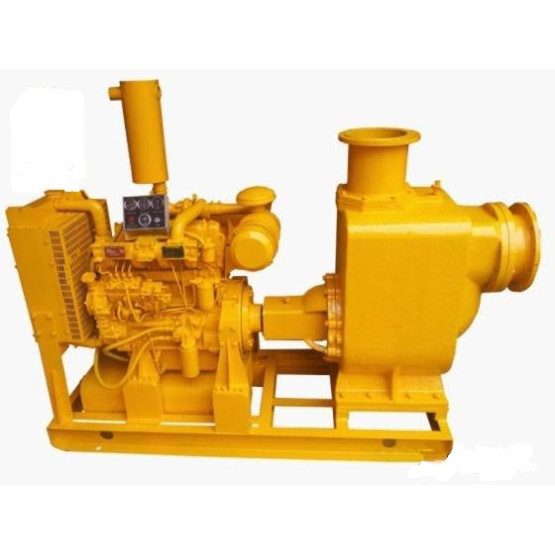

Overview of XBC diesel self-priming sewage pump

      XBC diesel-type self-priming sewage pump-diesel self-priming pump combines self-priming and non-blocking sewage discharge. It can be used as a general clean water self-priming pump without the need for a bottom valve, without the need for irrigation water, and can be pumped with large particles. Solid block, long fiber dirt, sediment waste minerals, manure treatment and all engineering sewage materials completely reduce the labor intensity of workers, and are easy to use, move, install, rarely repaired, and have stable performance. In combination with the mobility of the diesel engine, there is no need to quote the wire, and the flexibility of the pump is improved.

XBC diesel engine self-priming sewage pump detailed introduction

      The Yangzijiang XBC diesel-type self-priming sewage pump integrates self-priming and non-blocking sewage discharge. It can be used as a general clean water self-priming pump without the need for a bottom valve, without the need to pump water, and can also absorb large solid blocks containing particles. Long fiber dirt, sediment waste minerals, manure treatment and all engineering sewage materials completely reduce the labor intensity of workers, and are easy to use, move, install, rarely repaired, and have stable performance. In combination with the mobility of the diesel engine, the need to refer to the wire does not require the flexibility of the pump.

1XBC diesel engine self-priming sewage pump - diesel engine self-priming pump ambient temperature ≤ 45 ° C, medium temperature ≤ 60 ° C.

2XBC diesel engine self-priming sewage pump - diesel engine self-priming pump medium PH value cast iron pump is 6 ~ 9, stainless steel pump is 1 ~ 14. The particle diameter is 60% of the pump diameter, and the fiber length is 5 times of the diameter.

4XBC diesel self-priming sewage pump - the total weight of impurities in the diesel self-priming pump medium does not exceed 15% of the total weight of the medium, and the specific gravity of the medium does not exceed 1240 kg / cubic meter.
