Basic Info

Model No.: BODA-118

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Verticaljoint Surface Pump

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pump

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

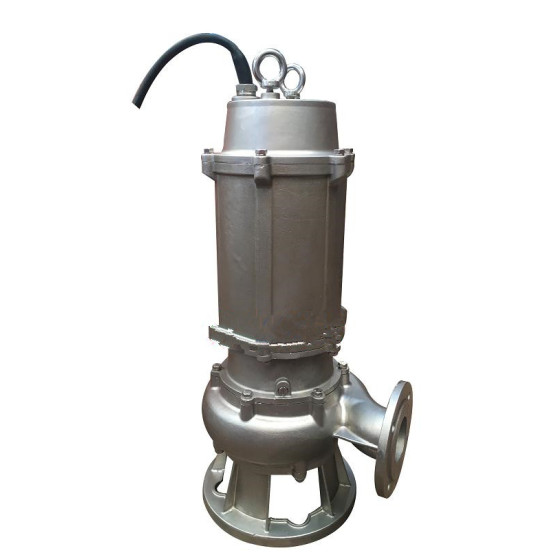

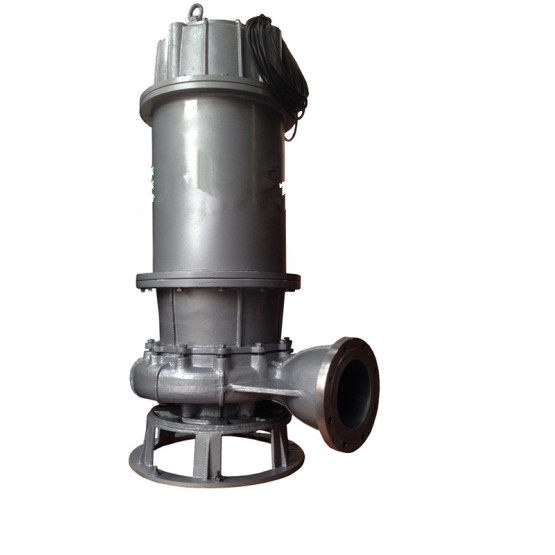

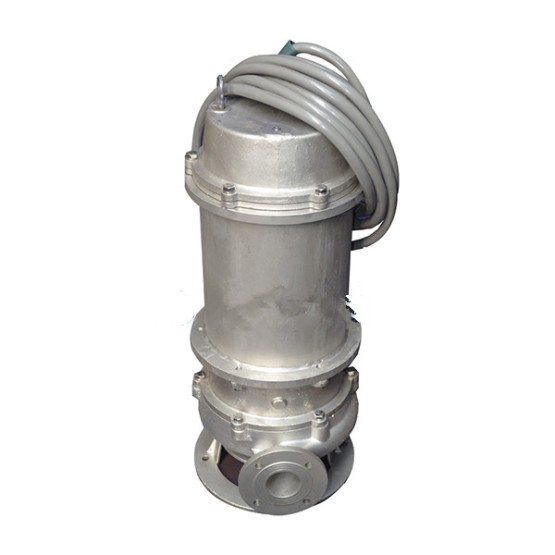

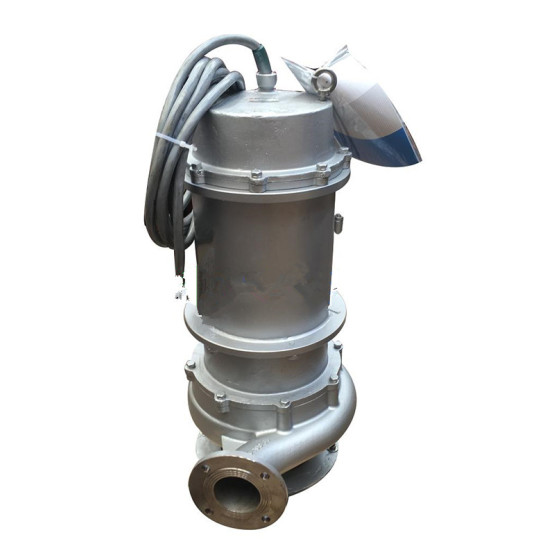

WQP stainless steel submersible sewage pump overview

      WQ stainless steel submersible sewage pump is a new generation of pump products developed on the basis of introducing foreign advanced technology and combining the characteristics of domestic water pumps. It has remarkable energy saving effect, anti-winding, no clogging, automatic installation and automatic control. . It has a unique effect in discharging solid particles and long fiber waste. The pumps feature a unique impeller structure and a new mechanical seal that efficiently transports solids and long fibers. Compared with the conventional impeller, the impeller is in the form of a single flow channel or a double flow channel. It is similar to a curved pipe of the same cross-section. It has very good over-flow and is equipped with a reasonable volute to make the pump efficient. High and impeller dynamic and static balance test, so that the pump has no vibration during operation.

WQP stainless steel submersible sewage pump product features

1.WQP series stainless steel submersible sewage pump adopts large-flow anti-blocking hydraulic component design, which greatly improves the ability of dirt to pass, and can effectively pass 5 times of fiber material of pump diameter and solid particles with diameter of about 50% of pump diameter.

2. The design is reasonable, the matching motor is reasonable, the efficiency is high, and the energy saving effect is remarkable.

3. The mechanical seal adopts double-channel series sealing. The material is hard wear-resistant tungsten carbide. It has the characteristics of durability and wear resistance, which can make the pump run safely for more than 8000 hours.

4. The pump is compact in structure, small in size, convenient to move, easy to install, no need to build a pump room, and can work in submerged water, greatly reducing the project cost.

5. There is an oil-water probe in the pump oil chamber. When the mechanical seal on the pump side is damaged, the water enters the oil chamber, and the probe generates a signal to protect the pump.

6. It can be equipped with automatic safety protection control cabinet according to user needs to monitor the leakage, leakage, overload and over temperature of the pump to ensure reliable and safe operation of the pump.

7. Double-rail automatic coupling installation system brings great convenience to the installation and maintenance of the pump installation, and people do not have to enter and exit the sump for this purpose.

8. The float switch can vary depending on the desired water level. Automatically control the pump to stop, no need to take care of.

9. Ensure that the motor is not overloaded during the use of the lift range.

10. According to the use occasion, the motor can adopt the water jacket type external third-party circulation cooling system to ensure the safe operation of the electric pump in the dry (dry) state.

11. The installation method has two types: fixed automatic coupling installation and mobile free installation, which can meet different use occasions.

WQP stainless steel submersible sewage pump structure description

      WQP series stainless steel submersible sewage pump consists of two parts: motor and pump. The two are separated by oil isolation chamber and mechanical seal assembly. It is a mechatronic product. The motor and pump are used in the same shaft (rotor). The whole pump has a short length and compact structure. Equipped with a variety of protection devices, the pump operates reliably and its main components function as follows:

Signal line 1: equipped with full protection pump control cabinet, all-round protection of the pump, including leakage, phase failure, short circuit, overheating, motor overload and other items. Motor stator 8: Class B or F insulation.

Leakage probe 11: The component is installed in the oil chamber. When the mechanical seal is damaged, the water enters the oil chamber, and the probe can send a signal to protect the pump by the control system.

Mechanical seal 13: It adopts double-channel series sealing and adopts new hard and corrosion-resistant tungsten carbide material, which has the characteristics of reliable sealing, wear resistance and long service life.

Impeller 17: The impeller adopts single-flow or double-channel structure, which has strong passing ability and can reduce the clogging and winding faults through large materials and fiber waste.

Pump body 15: Used with the impeller to make the pump highly efficient.

Sealing ring 18: Installed at the mouth ring of the pump body. When the impeller wears due to the operation, the sealing ring can be replaced to ensure the pump runs at a good efficiency.

WQP type stainless steel submersible sewage pump model meaning

For example: 50WQP15-30-3

50-exhaust exit diameter (mm)

WQP-submersible non-blocking sewage pump

P-stainless steel (P)

15-flow (m3/h)

30-lift (m)

3-With power (KW)
