Basic Info

Model No.: BODA-101

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Verticaljoint Surface Pump

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pump

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

product description

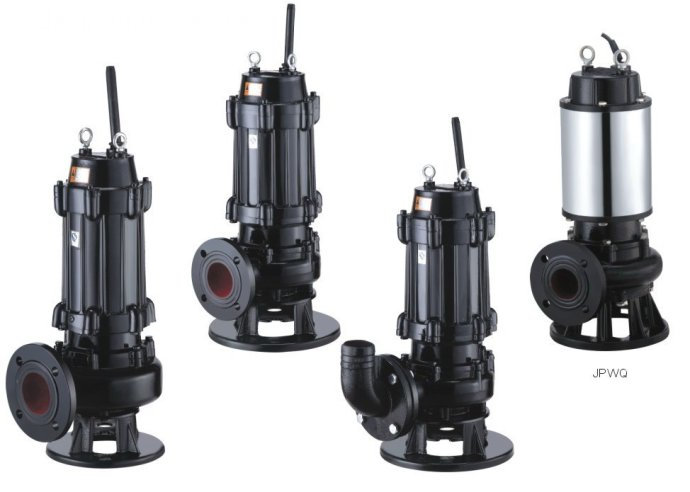

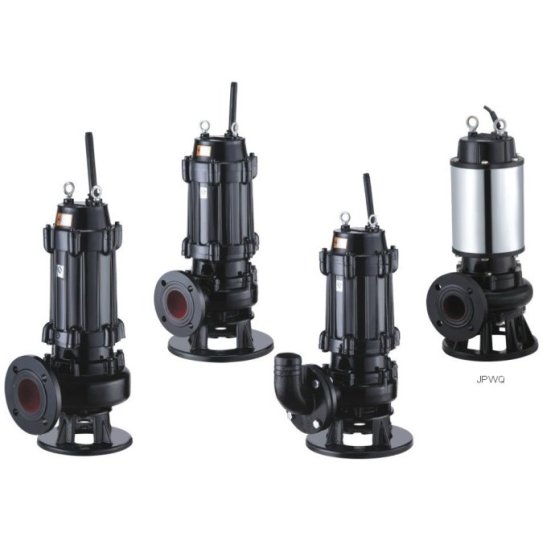

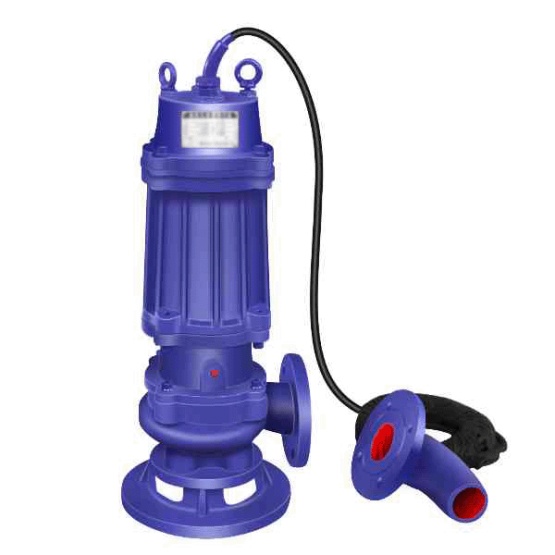

  WQ sewage pump is a new generation of pump products developed on the basis of the introduction of foreign advanced technology and combined with the characteristics of domestic water pumps. It has the characteristics of remarkable energy saving effect, anti-winding, no clogging, automatic installation and automatic control. It has a unique effect in discharging solid particles and long fiber waste.

The WQ submersible sewage pump uses a unique structure and a new mechanical seal to efficiently transport solids and long fibers. Compared with the conventional impeller, the impeller is in the form of a single flow channel or a double flow channel. It is similar to a curved pipe of the same cross-section. It has very good over-flow and is equipped with a reasonable volute to make the pump efficient. High and impeller dynamic and static balance test, so that the pump has no vibration during operation.

Model and meaning

Features

1. Adopting a unique single-piece or two-piece impeller structure, which greatly improves the dirt passing ability, and can effectively pass through 5 times of fiber diameter of the pump and solid particles with a diameter of about 50% of the pump diameter.

2. The mechanical seal adopts a new type of hard and corrosion-resistant titanium tungsten material, which can make the pump run safely for more than 8000 hours.

3, the overall structure is compact, small size, low noise, significant energy-saving effect, easy maintenance, no need to build a pump room, can work in submerged water, greatly reducing the project cost.

4. The pump sealing oil chamber is equipped with a high-precision anti-interference water leakage detecting sensor. The thermal resistance component is embedded in the stator winding, and the pump motor is automatically protected.

5, can be equipped with automatic control cabinet according to user needs, automatic protection of the pump leakage, leakage, overload and over-temperature, improve the safety and reliability of the product.

6. The float switch can automatically control the start and stop of the pump according to the required liquid level change. It does not require special care and is extremely convenient to use.

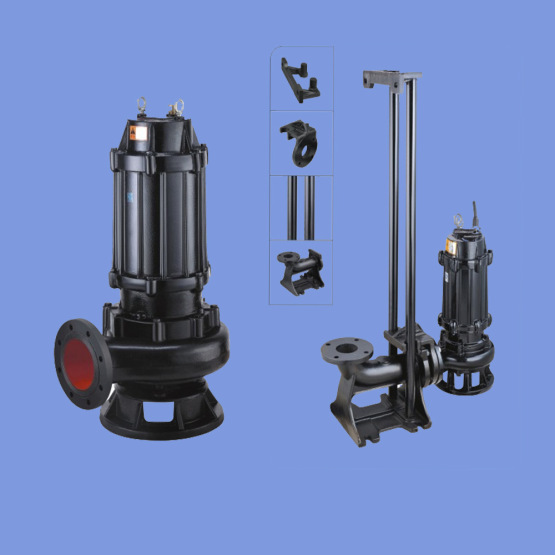

7. WQ submersible sewage pump can be equipped with double-rail automatic coupling installation system according to user needs. It brings more convenience to installation and maintenance, and people do not have to enter the sump for this purpose.

8, can be used in the full lift, and ensure that the motor will not overload.

9, there are two different installation methods, fixed automatic coupling installation system, mobile free installation.

The main purpose

WQ submersible sewage pump is suitable for chemical, petroleum, pharmaceutical, mining, paper industry, cement plants, steel mills, power plants, coal processing industries, as well as urban sewage treatment plant drainage systems, municipal engineering, construction sites and other industries. Sewage and dirt can also be used to pump clean water and corrosive media.
