Basic Info

Model No.: BODA-017

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Horizontal Split Pumps

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pumps

Product Name: BHR Rubber Lined Slurry Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

we  are  Shijiazhuang Boda Industrial Pump Co.,Ltd  from  china .

we mainly operates pump & pump driven equipments, pump parts & resistance wearing castings, others hydraulic machinery, accessories etc. The products contain slurry pumps, API 610 petrol-oil & chemical pumps, waters pumps which have tens of series , more than one hundred varieties , thousands of models. They are widely used in mining, metallurgy, coal mining, electric power, petroleum, chemical , water supply and drainage industry and so on. Our company have senior engineers and classic technicians, have one slurry pump factory in shijiazhuang city , one API610 pump factory in Shenyang city, one chemical pumps factory in Dalian city .

if you have any needing on pump ,or have any needing on pump Components ,please feel free contact with us . we like to offer your our best price and best service for you .

Looking forward to cooperate with you .

Product Description

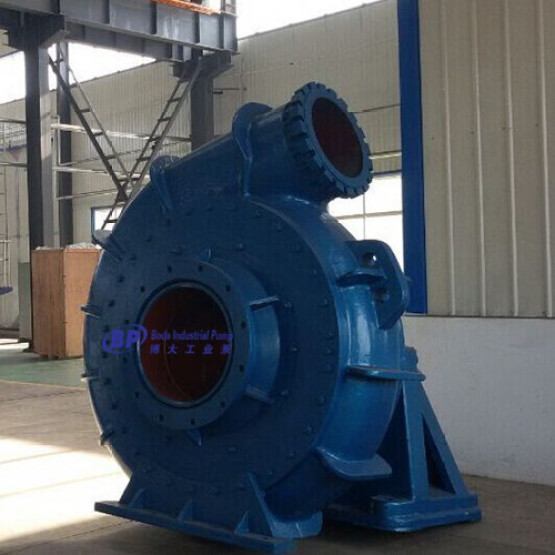

WN Slurry Dredging Pump

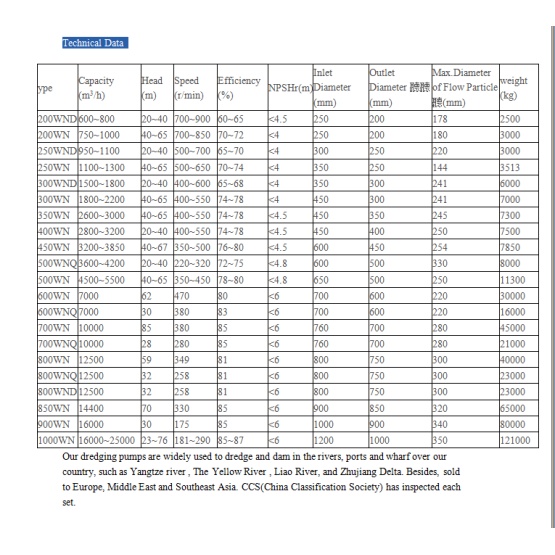

Specifications

1.WN pump

2.long life serve

3.excellent anti-wear performance

4.high efficiency

5.reliable bearing lining

Descrrption:
Dredging pump is a new type of WNpump researched & manufactured by our company,aiming at rivers and seas out of repair. Dredging pump is a single-stage single suction cantilever horizontal centrifugal pump with advantages of light weight, good wear-resistan, super dredging performance, perfectly suited for the dredge on the whole construction, high multiple economy benefits, etc.. It throughout meets requirements of the dredge to dredging pumps.
Application:

Function Introduction:

1. This pump is of horizontal cantilevered single-casing centrifugal pump.

2. Construction of this pump is of single casing connected by means of clamp bands and the discharge direction of pump can be oriented in any direction of 360. the type of pump possesses the advantages of easy installation.

3. The cylinder –type bearing assembly with oil lubrication is adopted by the pump. It is suit for adjusting the distance between impeller and pump. The bearing assembly uses oil lubrication.

4. Three kinds of shaft seal---mechanical seal, expeller seal and packing seal

5. Wide passage , good performance of NPSH, anti-wearing and anti-corrosion, and high efficiency,

6. The type of driver just have v belt driver, gearbox driver, elastic coupling driver, fluid couplings driver, frequency conversion driver, silicon controlled rectifier speed regulation etc.
