Basic Info

Model No.: boda-064

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Horizontal Split Pumps

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pumps

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

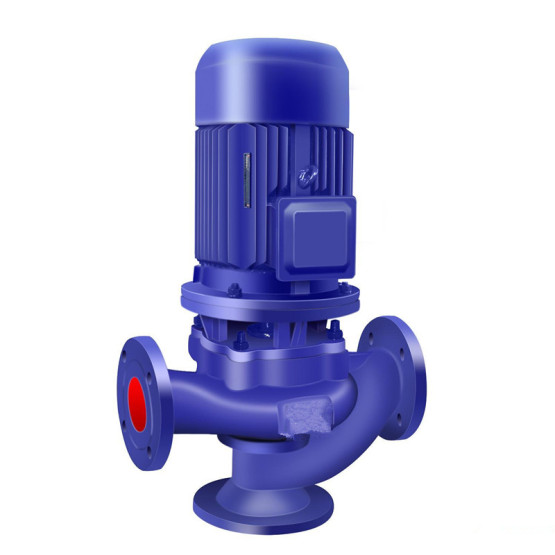

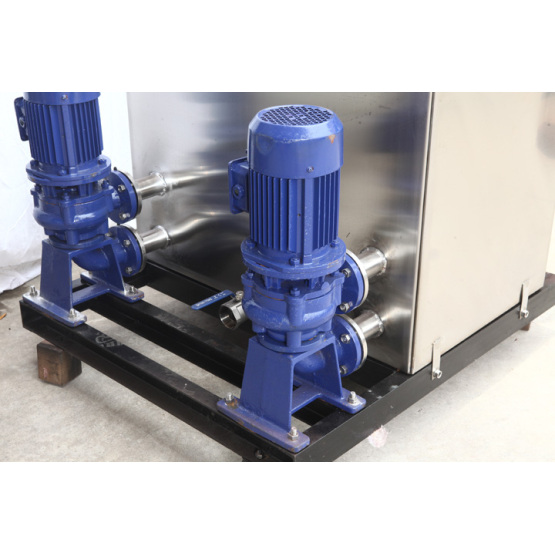

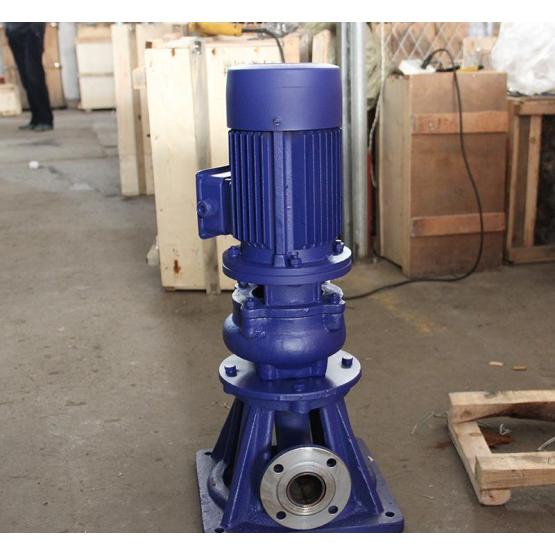

LW Vertical non-clogging sewage pump
name: LW Vertical non-clogging sewage pump
flow:5-3000m3/h

head:5-80m
rotary speed :980-2900r/min
caliber:25-500

Product Description:

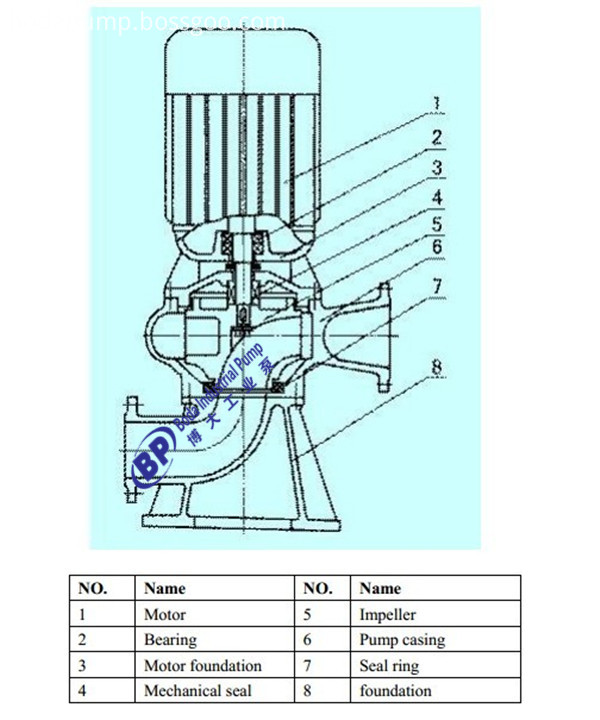

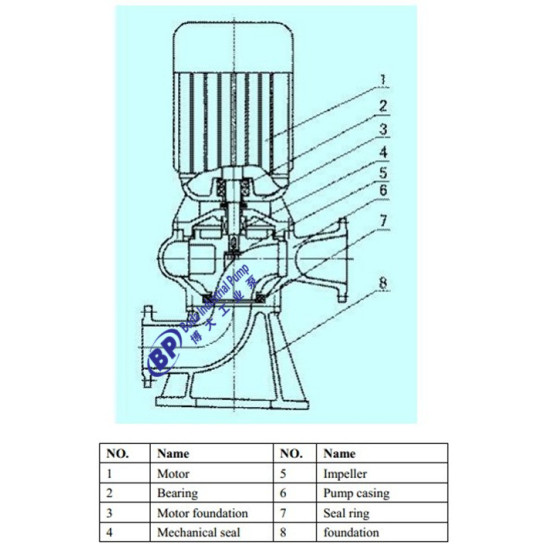

LW series vertical non-block sewage pump is a single-suction volute type pump and inside of it an impeller of a non-block wrapping-proof single big flow-path is set, leaving a good passing capacity. Two type of structure:1.both pump and motor are directly linked and coaxial; 2. use a clutch to link, the motor is a standard vertical one. Two foundation connectin type with each type of structure: 1.levelly suck-in at the inlet, of angle-rotating function, i.e. The placing angle at the inlet can be 0 º, 90 º, 180 º, 270 º for the sake of pipe-line connection; 2.axial suck-in at the inlet for the sake of vertical installation.
