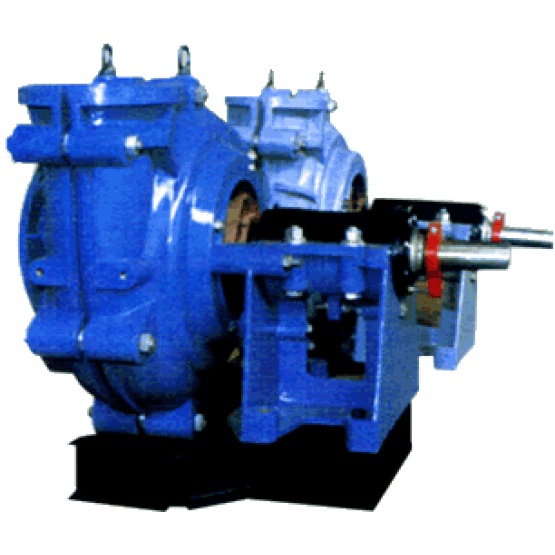

TZ L series Slurry Pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: BODA-022

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Horizontal Split Pumps

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pumps

Product Name: DT Series Desulphurization Pump


Additional Info


Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai


Product Description


we  are  Shijiazhuang Boda Industrial Pump Co.,Ltd  from  china .

we mainly operates pump & pump driven equipments, pump parts & resistance wearing castings, others hydraulic machinery, accessories etc. The products contain slurry pumps, API 610 petrol-oil & chemical pumps, waters pumps which have tens of series , more than one hundred varieties , thousands of models. They are widely used in mining, metallurgy, coal mining, electric power, petroleum, chemical , water supply and drainage industry and so on. Our company have senior engineers and classic technicians, have one slurry pump factory in shijiazhuang city , one API610 pump factory in Shenyang city, one chemical pumps factory in Dalian city .

if you have any needing on pump ,or have any needing on pump Components ,please feel free contact with us . we like to offer your our best price and best service for you .

Looking forward to cooperate with you .


Product Description



The most reliable design technique

The most reliable model design of shaft seal

The most compatible model design for drive

The superior material & technique of wear-resistant

A Brand New Design Principle:

With the principle of satisfying the customers needs, the thought of design for the customers in the whole process and the modern design method of modularization and combination, we create the characteristic superior products to satisfy the different needs of the different customers furthest so as to provide better services for them.

Characteristics:

The brand new design principle, aims at different characteristics and needs of the different usage for customer and adopts the different reasonable configurations.

The function modularization are well-found which have strong compatibility and can satisfy various requirements of technique.

All hydraulic models have been tested in laboratory and verified in the industry spots so as to insure good hydraulic performance, high efficiency and low wear rate.

Whole machine construction is reasonable, all function modularization have been verified in the industry spots.The operation is reliable and maintenance is easy.

The manufacturing is precise to provide high-quality service in whole process.

Application Field:

Metallurgy and mine:Transport black and colored course-mine, fine-mine and slurry of end-mine, etc.

Electric power:Transport ash mud&slurry in electric power, etc.

Coal:Transport various course & fine coal mud, etc.

.Contructional material: Transport various slurry contain mud&sand, etc.

Chemical industry departments: Transport every kinds of abrasive and corrosive slurry in the phosphorus and kalium manufactories, etc.

Environmental protection: Flue gas desulfuration and transportation of gypsum mortar, etc.

Application of CFD technique:

(computational Fluid Dynamics), which has been already put to use successfully in

devepment & design of pumps in our company, is a new brand technique that apply

the computor technique to the analysis & calculation of fluid mechanics performance.

According to the require of customers and usage field circumstances previous of slurry pump,

technicians analyze and calculate the internal fluid field ( velocity field and pressure parameters field, etc.) of type TZ pump, predict the performance

parameters and then begin to optimize design method according to the result so as to

achieve to improve their performance all the time.

CAE technique application:

For solving the casting fault during the procession, enhancing the casts quantity,

prolonging the litetime of the flow parts, our company applied the CAE casting technique

to casting technics successfully, calculated & analyzed the packing speed field and

temperature field of casting process for key parts, simulated casting & freezing process

and accurately predicted the casting deficiency of shrink porosity, shrink cavity, gas

entrainment and slag inclusion, so as to improve technics, eliminate deficiency, or

transfer the deficiency to a place which would not influence usage for customers

and achieve to improve product quantity continually.

The most reliable design technique:

The most advanced model design for pump head:

The pump head can be divided into two constructions, single pump casing and

double pump casings, according to its construction. The construction of single

pump casing have advantages of light weight and small dimension, etc. The construction

of double pump casings have advantages of hign bearing pressure, and is used for

single stage or multistage in series.

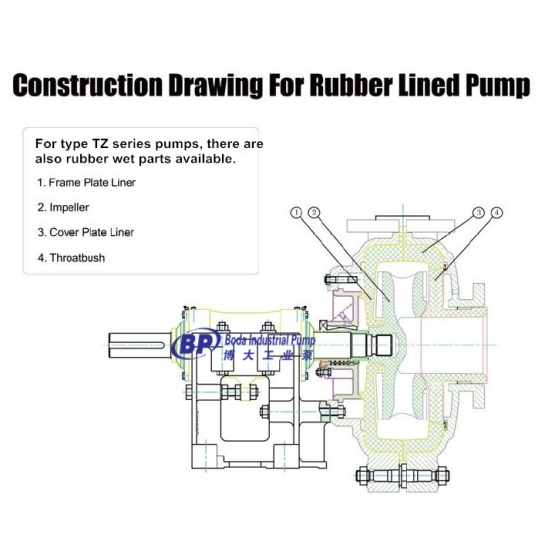

The construsion of double pump casings can be divided into metal liner type and

rubber (nonmetal) liner type.The metal liner type used different alloy materials of

wearresistant & corrosionresistant. It can be used in transporting all sorts of abrasive

& corrosive slurry. The rubber liner type is more suitable for transporting various

grain medium of abrasion & corrosion.

The superior material & technique of wear-resistant:

Hydraulic adopted hydraulic design, wear abrasion of pump parts can be improved

effectively. It is most important for the lifetime of pump that if selected material is fit for

the liquid. According to the concrete circumstance of each conditions, our limited

analyzes seriously its basic wear mechanism & wear regulation, selects suitable serial

A material of wear-resistant & corrosion-resistant or other metal & nonmetal wear-resistant material for wear flow parts so as to combine the operation request of pump

and the select parts best to get super operation benefit.



The wear abrasion is various.Usually serials A material of wear- resistant & corrosionresistant is selected to transport liquid according to its quality,

grain diameter, corrosive performance, temperature and etc. It is serials antiwear

material which is introduced and developed by ourselves according to practice

experience of 50 years. Its hardness is HRC35-68, and has more than 30 types such as type antiwear, type antiwash, type anticorrosion,

type special acid and etc.They can be selected by customers.

Among others, our company based on the introduced technique, associates with

internal firstclass colleges and institutes to develop wearresistant alloy cast iron of

A05, A07 and etc. Anti-wear can be enhanced 30% than regular similar materials.

In addition, the methods of rubber, wearing coat, ceramic spray weld, etc also can

be adopted in wearing materials.

3

2

1

44
