Tunnel Shield Pipe jacking Gravel Pumps

Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Min. Order:	1 Set/Sets
Delivery Time:	20 Days

Contact Now

Basic Info

Model No.: TZG(H)

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Origin: Shijiazhuang

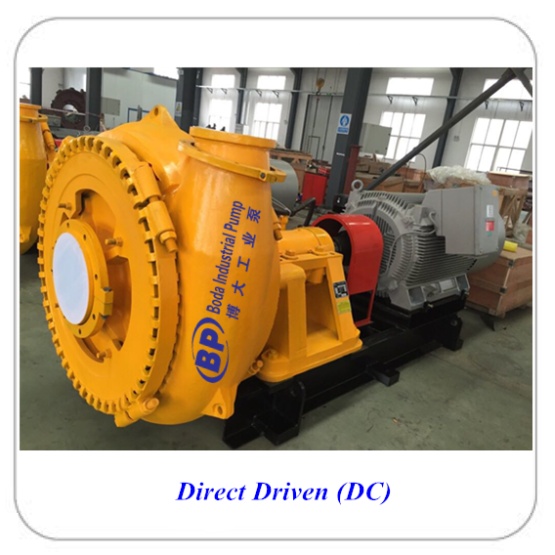

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Model No.: TZG(H)

Additional Info

Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Certificate: ISO

Product Description

Product Description:

The TZG(H) Heavy duty centrifugal sand gravel pump is single-stage single-suction horizontal
centrifugal pump, connected by belt. It is light, good anti-cavitation performance and easy to install.
It is applied to conveying of sands, mud and slurry with bigger solid particles.
Gravel pump is consisted by casing, seal devices, bearing devices and frame. It is lubricated by grease. The materials of working parts are wear-resistance alloy or alloy steel, the hardness is no less than 58HRC.

Features:

1. Horizontal, cantilevered, single-casing structure, centrifugal pump.
2. Wide passage , good performance of NPSH, anti-wearing and anti-corrosion, high efficiency
3. Easy installation, discharge outlet can be adjusted at any direction of 360.

Application:

Series TZG(H) sand dredge pump is widely used in the sand excavation, dredging, mining, coal washery, power plant, metallurgy, suction hopper, petrochemical and other industrial departments, etc.

Gravel Slurry Pump Structure:

Gravel Slurry Pump Performance Table:

Type	Capacity (l/s)	Head (m)	Speed (r/min)	Efficiency (%)	NPSHr (m)	Inlet Size (mm)	Outlet Size (mm)	Max.Diameter of flowed particle (mm)
100TZG-PD	10-70	3.5-51	600-1400	30-50	2.5-3.5	150	100	82
150TZG-PE	38-160	10-48	800-1400	50-60	3-4.5	200	150	127
200TZG-PS	60-272	13-50	500-1000	45-65	3-7.5	250	200	178
200TZGH-PS	100-360	28-80	500-950	60-72	2-5	250	200	180
250TZG-PF	100-420	11-58	400-850	50-70	2-4.5	300	250	220
250TZGH-PG	170-620	28-78	350-700	60-73	2-8	300	250	210
300TZG-PG	140-880	6-66	300-700	60-68	2-8	350	300	241
400TZG-PT	240-1060	9-48	250-500	60-72	3-6	450	400	254
