Submersible Pump Double Suction Centrifugal Pump
| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: GDL
OEM:: Yes
Origin: Shijiazhuang
Color: As Your Requirement
Power: Electric Or Diesel
Theory:: Centrifugal Pump
Position Of Pump Shaft: Vertical Pump
Material: Cast Iron, Stainless Steel, Etc
Structure:: Multistage Pump
Application:: Delivery Hot Water ,clear Water, Chemical Liquid
Model No.: GDL
Additional Info
Packaging: In Wooden case or as your requirement
Productivity: 300sets/month
Brand: Boda
Transportation: Ocean,Land,Air
Place of Origin: Shijiazhuang
Certificate: ISO
Product Description
Submersible Pump Double Suction Centrifugal Pump
Introduction:
Multi stage water pump is a new pump meeting JB/TQ6435-92 standard.
It is designed based on foreign excellent pump type, user's requirement and fire related standards.
Advantages:
Inlet and outlet are lying on the same line.
The rotor consists of a shaft, impeller, impeller block sets, bushings and other parts.
Inlet section, middle section and outlet section are joined together with stretching bolt.
Seal with mechanical seal got lubrication and cooling with pressure water in the balance chamber.

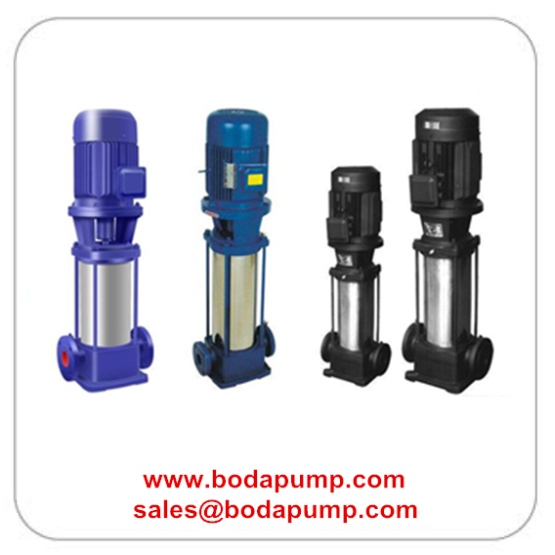

multi stage water pump
Our products are designed and optimized with computer technology.
Our company has strong technical forces, mature production experience and perfect inspection. It ensures the good quality of the products.
Application:
1. Widely used in the high-pressure operating system of the circulation and booster.
2. Water supply in high-rise building with multiple pumps.
3. Fire fighting.
multi stage water pump
4. Boiler feed water.
5. Cooling water system.
6. Transport of flushing fluid.
Material:
HT200, 201, 304.
Feature:
1. Advanced hydraulic model.
High efficiency, wide range of performance.
2. Easy installation and maintenance.
Pipe type installation, inlet and outlet can be installed in any position and any direction of the valve.
multi stage water pump
3. Nice appearance.
Use good quality of stainless steel.
4. Less cost on operation and maintenance.
High quality mechanical seal, Wear resistance, No leakage, Long service life, Low failure rate.
Technical Data:
| Model No. | Capacity (m3/h) | Head (m) | Suction Lift (m) | Power (KW) |
| 50GDL18-15*4 | 18 | 60 | 7 | 5.5 |
| 50GDL18-15*5 | 18 | 75 | 7 | 7.5 |
| 50GDL18-15*6 | 18 | 90 | 7 | 7.5 |
| 50GDL18-15*7 | 18 | 105 | 7 | 11 |
| 50GDL18-15*8 | 18 | 120 | 7 | 11 |
| 50GDL18-15*9 | 18 | 135 | 7 | 15 |
| 50GDL18-15*10 | 18 | 150 | 7 | 15 |
| 65GDL24-12*2 | 24 | 24 | 6 | 3 |
| 65GDL24-12*3 | 24 | 36 | 6 | 4 |
| 65GDL24-12*4 | 24 | 48 | 6 | 5.5 |
| 65GDL24-12*5 | 24 | 60 | 6 | 7.5 |
| 65GDL24-12*6 | 24 | 72 | 6 | 7.5 |
| 65GDL24-12*7 | 24 | 84 | 6 | 11 |
| 65GDL24-12*8 | 24 | 96 | 6 | 11 |
| 65GDL24-12*9 | 24 | 108 | 6 | 15 |
| 65GDL24-12*10 | 24 | 120 | 6 | 15 |
| 80GDL36-12*2 | 36 | 24 | 5.5 | 4 |
| 80GDL36-12*3 | 36 | 36 | 5.5 | 5.5 |
| 80GDL36-12*4 | 36 | 48 | 5.5 | 7.5 |
| 80GDL36-12*5 | 36 | 60 | 5.5 | 11 |
| 80GDL36-12*6 | 36 | 72 | 5.5 | 11 |
| 80GDL36-12*7 | 36 | 84 | 5.5 | 15 |
| 80GDL36-12*8 | 36 | 96 | 5.5 | 15 |
| 80GDL36-12*9 | 36 | 108 | 5.5 | 18.5 |
| 80GDL36-12*10 | 36 | 120 | 5.5 | 18.5 |
| 80GDL54-14*2 | 54 | 28 | 5 | 7.5 |
| 80GDL54-14*3 | 54 | 42 | 5 | 11 |
| 80GDL54-14*4 | 54 | 56 | 5 | 15 |
| 80GDL54-14*5 | 54 | 70 | 5 | 18.5 |
| 80GDL54-14*6 | 54 | 84 | 5 | 18.5 |
| 80GDL54-14*7 | 54 | 98 | 5 | 22 |
| 100GDL72-14*2 | 72 | 28 | 4.5 | 11 |
| 100GDL72-14*3 | 72 | 42 | 4.5 | 15 |
| 100GDL72-14*4 | 72 | 56 | 4.5 | 18.5 |
| 100GDL72-14*5 | 72 | 70 | 4.5 | 22 |
| 100GDL72-14*6 | 72 | 84 | 4.5 | 30 |
| 100GDL72-14*7 | 72 | 98 | 4.5 | 30 |
