Slurry Pumps Used in Mining Chemical Applications

Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Min. Order:	1 Set/Sets
Delivery Time:	20 Days

Contact Now

Basic Info

Model No.: BM BH

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Model No.: BM BH

Additional Info

Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Certificate: ISO

Product Description

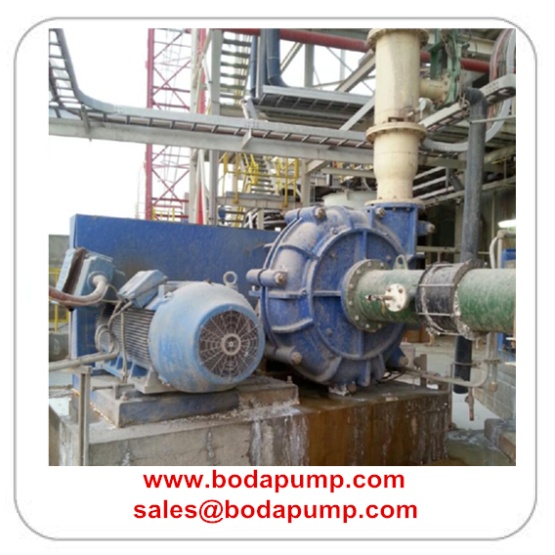

Slurry Pumps Used in mining chemical applications:

Type BH, BHH pump are cantilevered, horizontal, centrifugal slurry water pumps, outlet from 25mm to 450mm. They are also named as heavy slurry pump because of bear-abrasive parts and heavy base.

The Features:
1. The frame plates for BH pumps have replaceable wear-resistant metal liners or rubber liners. The impellers are made of wear-resistant metal or rubber. The frame plate liner and impeller for BHH pump are adoptable of hard metal only.
2. Bearing assembly use cylindrical structure,adjusting the space between impeller and front liner easily, being removed completely when being repaired. Bearing assembly use grease lubrication.
3. The shaft seal could use the packing seal, expeller seal and mechanical seal.
4. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.
5. There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, frequency conversion drive devices.
6. Wide performance, good NPSH and high efficiency. The pump of this type may be installed in multistage series to meet the delivery for long distance.

Application:
BH, BHH pumps are used to pump high-hardness, strong-corrosion and high-concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones and etc. in the industries of metallurgy, mining, coal, power, building material and etc. The temperature of the pumped solid-liquid mixture should be ≤80oC, and the weight concentration should be ≤60.

Slurry Pump Construction

Pump Body: Cast Iron/Grey Iron
Front Cover: High Chrome alloy/ Rubber lined

Impeller: High Chrome alloy/ Rubber lined
Mechanical Seal: Carbon/Ceramic/Stainless Steel
Motor Housing: Alloy Aluminum
Shaft: Carbon Steel/Stainless Steel/High Frequency Wedding Shaft
Insulation: Class B / Class F
Protection: IP54 / IP55/IP67
Cooling: water cooling

Mining Tailing Slurry Pump Performance Table:

Type	Allowable Mating Max.Power(kw)	Clear Water Performance						Impeller
		Capacity Q		Head H (m)	Speed n (r/min)	Max EFF η(%)	NPSH) (m)	No of Vanes	Impel Dia(mm)
		(m3/h)	(L/S)
1.5/1B-BH	15	12.6-28.8	3.5-8	6-68	1200-3800	40	2-4	5	152
2/1.5B-BH	15	32.4-72	9-20	6-58	1200-3200	45	3.5-8	5	184
3/2C-BH	30	39.6-86.4	11-24	12-64	1300-2700	55	4-6	5	214
4/3C-BH	30	86.4-198	24-55	9-52	1000-2200	71	4-6	5	245
4/3D-BH	60
6/4D-BH	60	162-360	45-100	12-56	800-1550	65	5-8	5	365
6/4E-BH	120
6/4D-BH	60	180-396	50-110	7-61	600-1600	55	3-8	4	372
6/4E-BH	120
8/6E-BH	120	360-828	100-230	10-61	500-1140	72	2-9	5	510
8/6R-BH	300
8/6E-BH	120	360-828	100-230	7-52	400-1000	70	2.5-6	4	536
8/6R-BH	300	360-828	100-230	7-52	400-1000	70	2.5-6	4	536
10/8ST-BH	560	612-1368	170-380	11-61	400-850	71	4-10	5	686
12/10ST-BH	560	936-1980	260-550	7-68	300-800	82	6	5	762
14/12ST-BH	560	1260-2772	350-770	13-63	300-600	77	3-10	5	965
16/14ST-BH	560	1368-3060	380-850	11-63	250-550	79	4-10	5	1067
16/14TU-BH	1200
10/8E-BM	120	540-1440	150-400	14-60	600-1100	73	4-10	5	549
