Basic Info

Model No.: BODA-028

Product Name: DT Series Desulphurization Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

we  are  Shijiazhuang Boda Industrial Pump Co.,Ltd  from  china .

we mainly operates pump & pump driven equipments, pump parts & resistance wearing castings, others hydraulic machinery, accessories etc. The products contain slurry pumps, API 610 petrol-oil & chemical pumps, waters pumps which have tens of series , more than one hundred varieties , thousands of models. They are widely used in mining, metallurgy, coal mining, electric power, petroleum, chemical , water supply and drainage industry and so on. Our company have senior engineers and classic technicians, have one slurry pump factory in shijiazhuang city , one API610 pump factory in Shenyang city, one chemical pumps factory in Dalian city .

if you have any needing on pump ,or have any needing on pump Components ,please feel free contact with us . we like to offer your our best price and best service for you .

Looking forward to cooperate with you .

Product Description

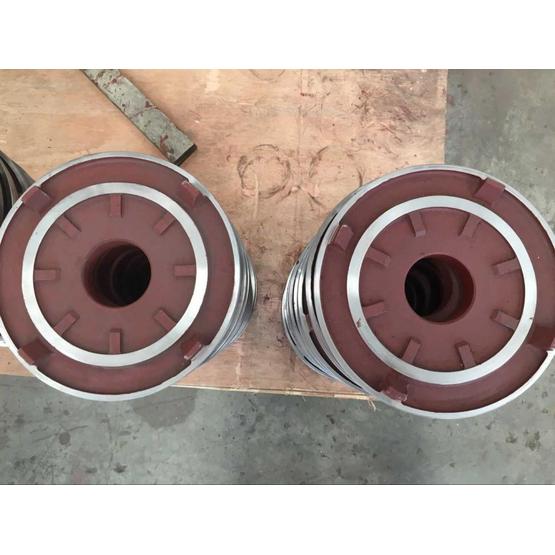

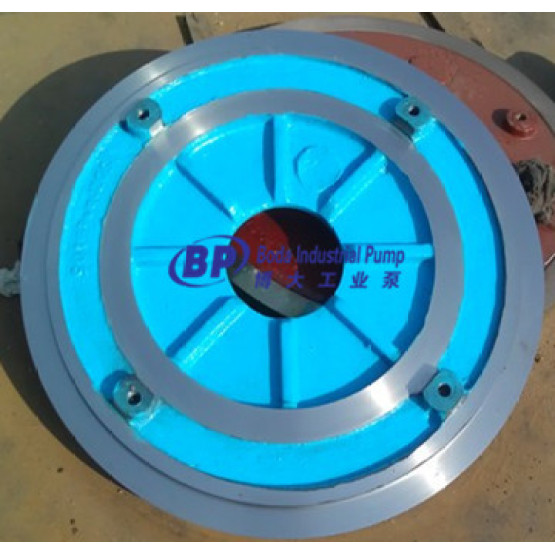

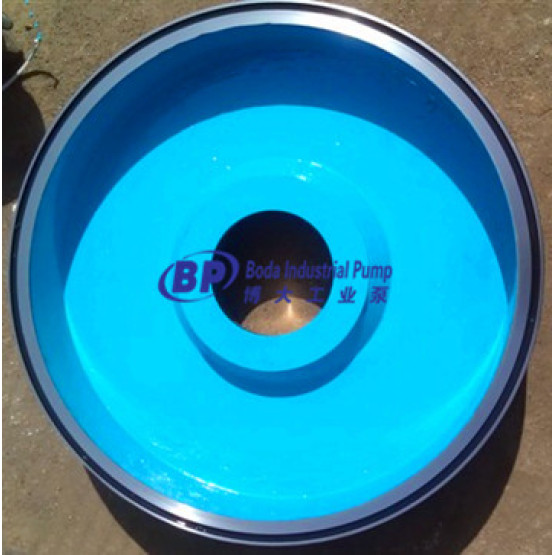

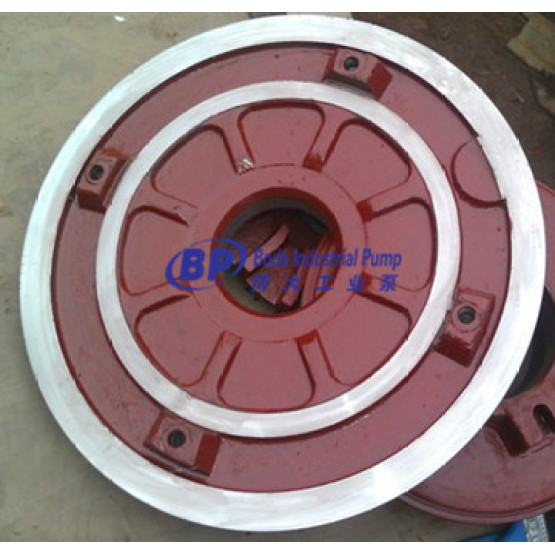

Slurry Pump Frame Plate Liner Insert

Slurry Pump Frame Plate Liner Insert 100% interchangeable with Warman Slurry Pumps.

Slurry Pump Frame Plate Liner Insert Material

1. A05 is a wear resistant white iron that offers excellent performance under erosive conditions. The alloy can be effectively used in a wide range of slurry types. The high wear resistance of alloy A05 is provided by the presence of hard carbides within its micro-structure. Alloy A05 is particularly suited to applications where mild corrosion resistance, as well as erosion resistance is required.

2. A07 Marten-sic white iron with moderate erosion resistance.

3. A49 is suitable for low pH corrosion duties, where erosive wear is also a problem. The alloy is particularly suitable for Flue Gas Desulphu-rization(FGD) and other corrosive applications, where the pH is less than 4. The alloy can also be used in other mildly acidic environments.A49 has an erosion resistance similar to that of Ni-Hard 1.

slurry pump frame plate liner insert Range

BH Series Heavy Duty Slurry Pump

1.5/1B-BH Slurry Pump frame plate liner insert code: B1041

2/1.5 B-BH Slurry Pump frame plate liner insert code: B15041

3/2 C-BH Slurry Pump frame plate liner insert code: C2041

4/3 C-BH Slurry Pump frame plate liner insert code: D3041

4/3 D-BH Slurry Pump frame plate liner insert code: D3041

6/4 D-BH Slurry Pump frame plate liner insert code: E4041

6/4 E-BH Slurry Pump frame plate liner insert code: E4041

8/6 E-BH Slurry Pump frame plate liner insert code: F6041

8/6 F-BH Slurry Pump frame plate liner insert code: F6041

10/8 F-BH Slurry Pump frame plate liner insert code: F8041

10/8 ST-BH Slurry Pump frame plate liner insert code: G8041

12/10 ST-BH Slurry Pump frame plate liner insert code: G10041

14/12 ST-BH Slurry Pump frame plate liner insert code: G12041

BV Series Vertical Slurry Pump

40PV-BV Vertical Slurry Pump code: SP4041

65QV-BV Vertical Slurry Pump code: SP65041

100RV-BV Vertical Slurry Pump code: SP10041

150SV-BV Vertical Slurry Pump code: SP15041

200SV-BV Vertical Slurry Pump code: SP20041

BG Series Sand Gravel Pump

6/4D-BG Sand Gravel Pump frame plate liner insert code: DG4041

8/6E-BG Sand Gravel Pump frame plate liner insert code: EG6041

10/8F-BG Sand Gravel Pump frame plate liner insert code: FG8041

12/10G-BG Sand Gravel Pump frame plate liner insert code: FG10041

14/12G-BG Sand Gravel Pump frame plate liner insert code: GG12041
