Basic Info

Model No.: TZG

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Model No.: BM BH

Additional Info

Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Supply Ability: 100 sets/ month

Certificate: ISO

HS Code: 8413709990

Port: Tianjin,SHANGHAI,As Your Request

Product Description

Name:Sewage Application Sand Suction Dredger Pump Gravel Pump     Dredger Pump      Use Electric Diesel Pump    Horizontal Pump

Basic Info
Model No.: TZG(H)
Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump
Impeller: Closed
Material: A05 A07 A49
Origin: Shijiazhuang
Drive Type:: CV, DC, Zv, Cr
Color: As Your Requirement
Package: In Woodenc Case Or As Your Requirement
Power: Electric Or Diesel
Model No.: TZG(H)
Additional Info
Packaging: In Wooden case or as your requirement
Productivity: 300sets/month
Brand: Boda
Transportation: Ocean,Land,Air
Place of Origin: Shijiazhuang
Certificate: ISO
Product Description

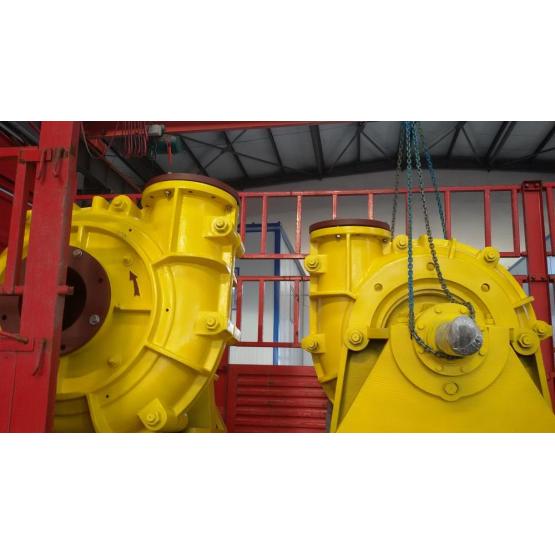

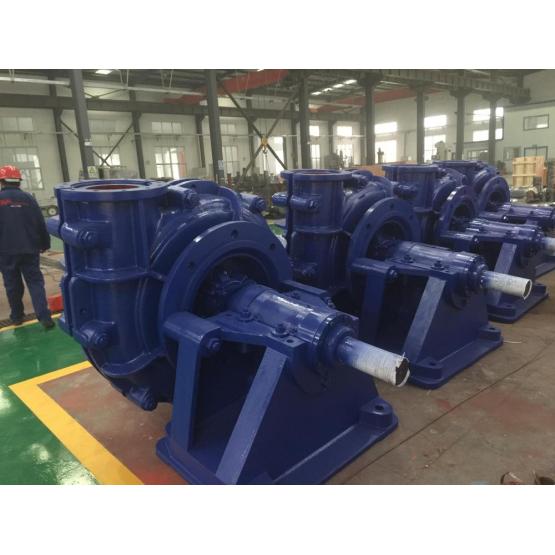

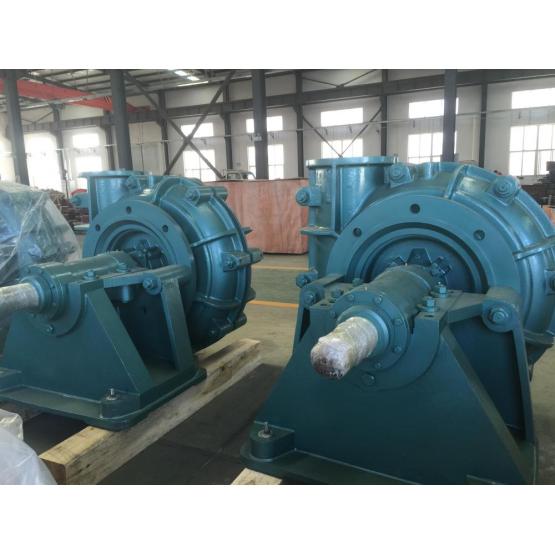

Slurry Pump (Dredge Pump for Sand and Gravel)
Technical Specifications
Size: 4-16 inches
Flow rate: 36-5040 m3/h
Head: 5-80m
Materials: Cr27,Cr28
Sealing methods: Packing seal, vice-impeller seal and mechanical seal
The dredge slurry pump, also named the gravel pump, is a horizontal centrifugal slurry pump which has a single casing. Of a large 360° rotating discharge opening, this industrial slurry pump adopts a unique clamped-style pump body and cover, quite easy to install and operate.
Features of Gravel  Slurry Pumps
This slurry pump enjoys the following features:
1) All the bearings of this slurry pump adopt the cylinder structure which makes it easier to adjust the interval between impeller and the pump body and remove the parts during maintenance or inspection. Additionally, those bearings could be lubricated with grease;
2) The available sealing methods for the shaft seal of this sand pump are packing seal, vice-impeller seal and mechanical seal;
3) Designed with a wide flow passage, this slurry handling unit enjoys sound cavitation performance, high efficiency and strong resistance to abrasion;
4) Such transmission types as V-belt drive, flexible coupling transmission, gear reducer transmission, hydraulic coupling transmission, variable frequency drive are available for this slurry pump;
5) All parts of its flow passage are made of high-hardness cast alloy iron which is highly resistant to abrasion;
6) Designed with multiple optional operation speeds and transformation models, this industrial pumping equipment could work well in various conditions, especially the harsh conditions, and enjoy a long service lifespan, helping you gain more benefits.
Application of  Slurry Dredge Pump
This slurry pump could be used to transfer abrasive or corrosive grains of bigger size that are not suitable for ordinary slurry pump. Given this, it has been widely used in mining, dredging, metallurgical industrials and sand conveyance and so on.
