Basic Info

Model No.: BODA-068

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Horizontal Split Pumps

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pumps

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

SCCY Long Shaft Submerged Pump

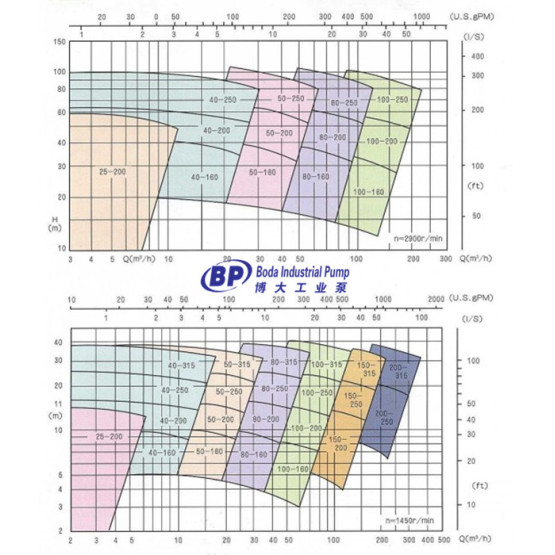

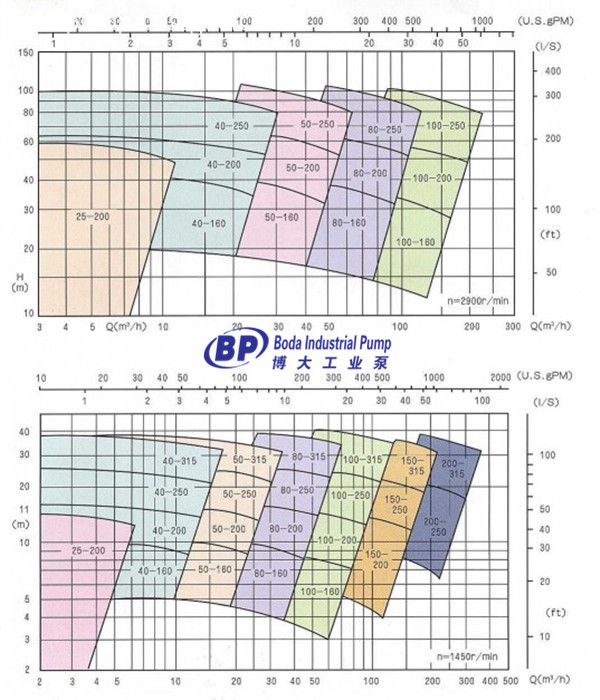

Performance Scope:

Capacity:Q2-400m3/h

Head: H5-100m

Working Temperature: T-20~+200℃

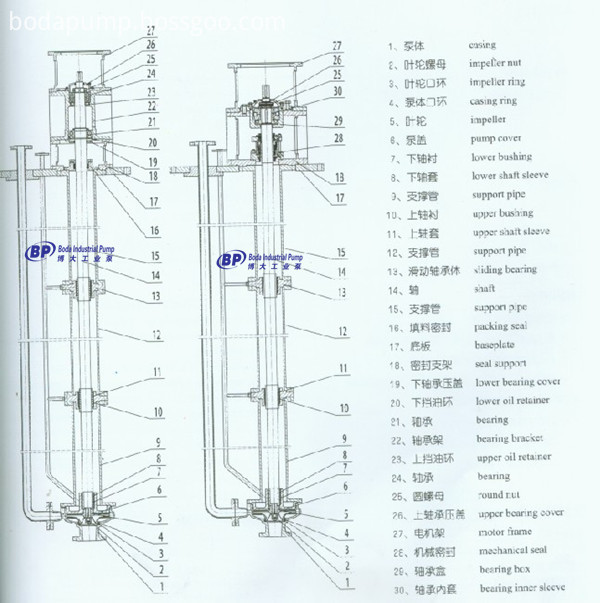

Structural Characteristics:

■safe and reliable connecting shaft structure

■Adopt multi-points support for the rotor component and pump rus safely and reliably.

■Adopt external or self-lubrication for sliding bearing.

■The impeller has submerged into medium when the pump begins to run, so startup become easy without air evacuation.

■Adopt two-runner casings(the diameter is greater than 80mm).It is small of radial force of rotors component, of shafts deflection and of wear and tear from sliding bearings, so long service life.

■ The pump runs clockwise looking from the motor end.

Application:

SCCY model power station sewage pumps are of vertical, single stage and single sunction, long shaft submerged pumps, available for all kinds of sewage conveying from power plants, chemical factories and waste water treatment plants.

It is mainly used in:

■ Thermal power factory

■ Chemical factory

■ Wastewater treatment factory

■ Steel factor, steels rolling mill

■ Paper mill

■ Cement factory
