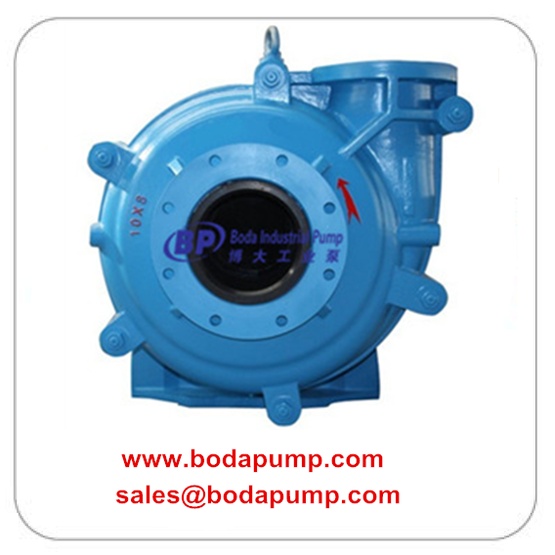

Sand Water Usage Slurry Pump
Payment Type: | L/C,T/T,Western Union |
---|---|
Incoterm: | FOB,CFR,CIF |
Min. Order: | 1 Set/Sets |
Delivery Time: | 20 Days |
Basic Info
Model No.: BM BH
Working Pressure: High Pressure Pump
Position Of Pump Shaft: Horizontal Pump
Impeller: Closed
Material: A05 A07 A49
Origin: Shijiazhuang
Drive Type:: CV, DC, Zv, Cr
Color: As Your Requirement
Package: In Woodenc Case Or As Your Requirement
Power: Electric Or Diesel
Model No.: BM BH
Additional Info
Packaging: In Wooden case or as your requirement
Productivity: 300sets/month
Brand: Boda
Transportation: Ocean,Land,Air
Place of Origin: Shijiazhuang
Certificate: ISO
Product Description
Description:
Sand slurry pump is designed for the continuous pumping of highly abrasive, high density slurries with minimal maintenance requirements. The BH series will maintain high efficiencies over the wear life of its components.
Features
1. Material
The wet parts material for standard BH series pump is high-chrome alloy. This kind of material is wear resistant and has excellent performance under erosive conditions.
2. Shaft Seal
There are three standard shaft seal methods:Packing seal, Expeller seal, Mechanical seal.
3. Bearing Assembly
Convenient to adjust the space between impeller and front liner and can be removed completely.
4. Driven types
DCZ, CRZ, CV, ZVZ
Applications of Slurry Pump
Typical Applications
Chemical Process
Heavy Minerals
Paper and Pulp
Mill Discharge
Sugar Beet
Horizontal Abrasion & Corrosion Resistant Slurry Pump Performance Table:
Type
|
Allowable Mating Max.Power(kw)
|
Clear Water Performance
|
Impeller
|
||||||
Capacity Q
|
Head
H
(m) |
Speed
n
(r/min) |
Max EFF η(%)
|
NPSH)
(m) |
No of Vanes
|
Impel Dia(mm)
|
|||
(m3/h)
|
(L/S)
|
||||||||
1.5/1B-BH
|
15
|
12.6-28.8
|
3.5-8
|
6-68
|
1200-3800
|
40
|
2-4
|
5
|
152
|
2/1.5B-BH
|
15
|
32.4-72
|
9-20
|
6-58
|
1200-3200
|
45
|
3.5-8
|
5
|
184
|
3/2C-BH
|
30
|
39.6-86.4
|
11-24
|
12-64
|
1300-2700
|
55
|
4-6
|
5
|
214
|
4/3C-BH
|
30
|
86.4-198
|
24-55
|
9-52
|
1000-2200
|
71
|
4-6
|
5
|
245
|
4/3D-BH
|
60
|
||||||||
6/4D-BH
|
60
|
162-360
|
45-100
|
12-56
|
800-1550
|
65
|
5-8
|
5
|
365
|
6/4E-BH
|
120
|
||||||||
6/4D-BH
|
60
|
180-396
|
50-110
|
7-61
|
600-1600
|
55
|
3-8
|
4
|
372
|
6/4E-BH
|
120
|
||||||||
8/6E-BH
|
120
|
360-828
|
100-230
|
10-61
|
500-1140
|
72
|
2-9
|
5
|
510
|
8/6R-BH
|
300
|
||||||||
8/6E-BH
|
120
|
360-828
|
100-230
|
7-52
|
400-1000
|
70
|
2.5-6
|
4
|
536
|
8/6R-BH
|
300
|
360-828
|
100-230
|
7-52
|
400-1000
|
70
|
2.5-6
|
4
|
536
|
10/8ST-BH
|
560
|
612-1368
|
170-380
|
11-61
|
400-850
|
71
|
4-10
|
5
|
686
|
12/10ST-BH
|
560
|
936-1980
|
260-550
|
7-68
|
300-800
|
82
|
6
|
5
|
762
|
14/12ST-BH
|
560
|
1260-2772
|
350-770
|
13-63
|
300-600
|
77
|
3-10
|
5
|
965
|
16/14ST-BH
|
560
|
1368-3060
|
380-850
|
11-63
|
250-550
|
79
|
4-10
|
5
|
1067
|
16/14TU-BH
|
1200
|
||||||||
10/8E-BM
|
120
|
540-1440
|
150-400
|
14-60
|
600-1100
|
73
|
4-10
|
5
|
549
|
* Dimensionally Interchangeable with:
BM ≈Warman®M
BH≈Warman®AH
Horizontal Abrasion & Corrosion Resistant Slurry Pump Structure:
Horizontal Abrasion & Corrosion Resistant Slurry Pump Application:
