Basic Info

Model No.: BODA-185

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

1. Medium temperature: -15°C~+120°C.

2. Large ambient temperature: +40 °C.

3, the pressure of the environment: 10bar.

4. The pressure on large imports is limited by the pressure of the environment.

5. When the density or viscosity of the transport medium is greater than water, consider using a motor with a higher power.

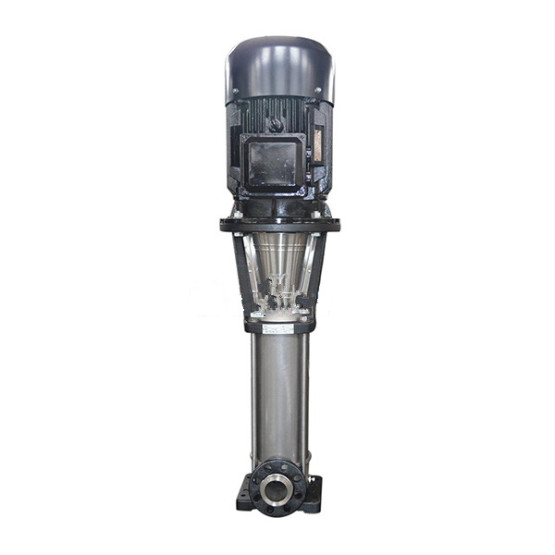

Vertical stainless steel multistage pump overview

      The QDLF vertical stainless steel multistage pump is designed according to the advantages of our ISG vertical centrifugal pump and DL vertical multistage centrifugal pump. The structure adopts vertical and segmented forms, and the suction and discharge ports of the pump are designed in a straight shape below, and a good hydraulic model is adopted. The axial force of the pump is solved by the hydraulic balance method, and the residual axial force is received by a ball bearing, so the operation is stable, the noise is low, the floor space is small, and the decoration is convenient. The outer cylinder of the vertical stainless steel multi-stage pump is made of stainless steel and has beautiful appearance. It is especially suitable for parallel use of multiple pumps in high-rise buildings to reduce the power of the single-pump unit and simplify the electronic control equipment. It is suitable for fire protection, domestic water supply, air conditioning unit circulation, cooling water transportation, etc. for houses, hospitals, hotels, department stores, office buildings, etc. in high and low-rise buildings.

Stainless steel multi-stage pump product features

1. Adopt excellent hydraulic model and advanced manufacturing process to greatly improve the performance and service life of the pump.

2. Since the shaft seal is made of a mechanical seal of cemented carbide and fluororubber, the reliability of the pump operation and the temperature of the transport medium can be improved.

3. The over-flow part of the pump is stamped and welded with stainless steel plate, which makes the pump suitable for mild corrosive media.

4. The overall structure is compact, small in size, light in weight, low in noise, remarkable in energy saving effect, and convenient in maintenance.

5. The water inlet and outlet of the pump are on the same horizontal line of the pump base and can be directly used in the pipeline.

6, using a standard motor, the user can easily equip the motor as needed.

7. It can be equipped with intelligent protector according to the user's needs to effectively protect the pump from dry running, phase loss and overload.

Vertical stainless steel multi-stage pump product use water supply

Water plant filtration and transportation, water plant district water supply, supercharged supercharged, high-rise building supercharged.

Industrial pressurization: process water system, cleaning system, high pressure flushing system, fire fighting system.

Industrial liquid transport: cooling and air conditioning systems, boiler feed water and condensing systems, machine tool packages, and acidic and alkaline media delivery.

Water treatment: water treatment systems for ultrafiltration systems, reverse osmosis systems, distillation systems, separators and swimming pools.

Irrigation: irrigation, sprinkler irrigation, drip irrigation.

Vertical stainless steel multistage pump conditions

1. Medium temperature: -15°C~+120°C.

2. Large ambient temperature: +40 °C.

3, the pressure of the environment: 10bar.

4. The pressure on large imports is limited by the pressure of the environment.

5. When the density or viscosity of the transport medium is greater than water, consider using a motor with a higher power.

Conveying medium

1. A non-flammable and explosive medium that is thin, clean, and free of solid particles or fibers.

2. Such as mineral water, softened water, pure water, clear oil and other light chemical media.

3. The main material of the vertical stainless steel multi-stage pump is stainless steel, which can be used to pump mild corrosive media.

The motor is motorized as a fully enclosed, air-cooled two-pole standard motor protection class: IP55 Insulation class: F Standard voltage (50Hz): single-phase 220V, three-phase 220V/380V

Model meaning

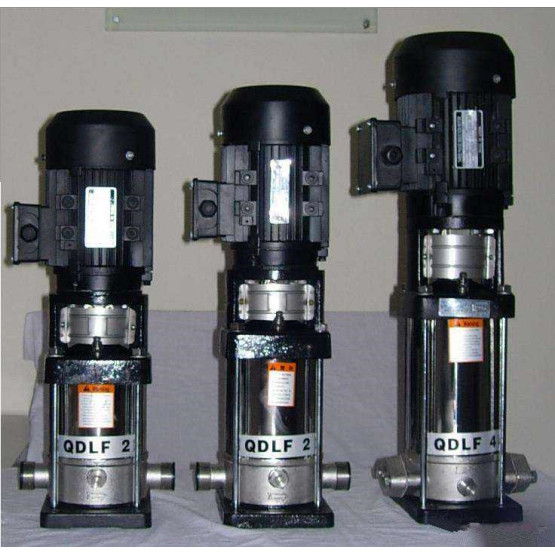

For example: QDLF8-160*10

QDLF-vertical multi-stage ram pump

8-rated flow

160-level *10
