Basic Info

Model No.: BODA-154

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

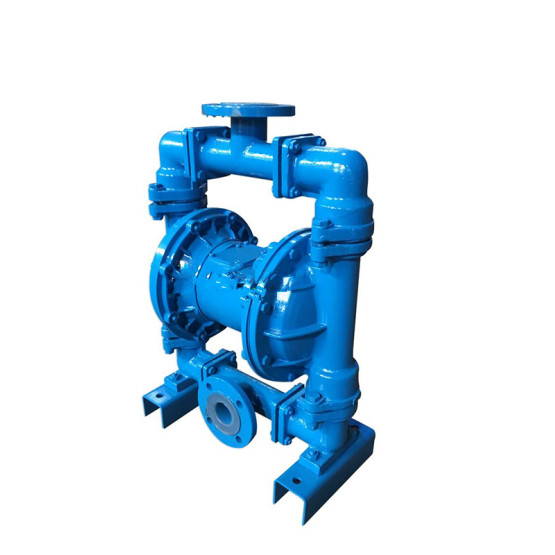

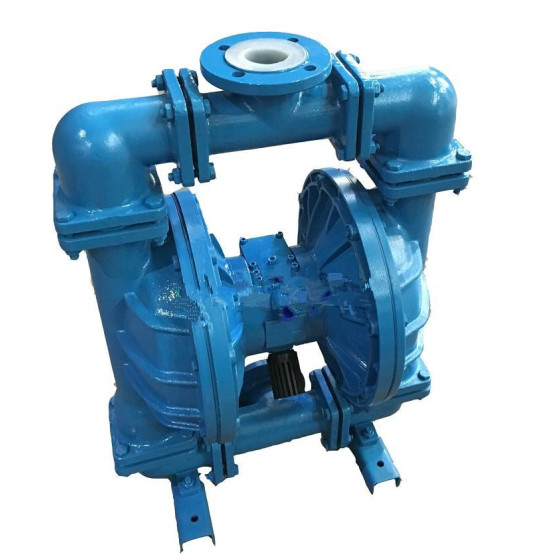

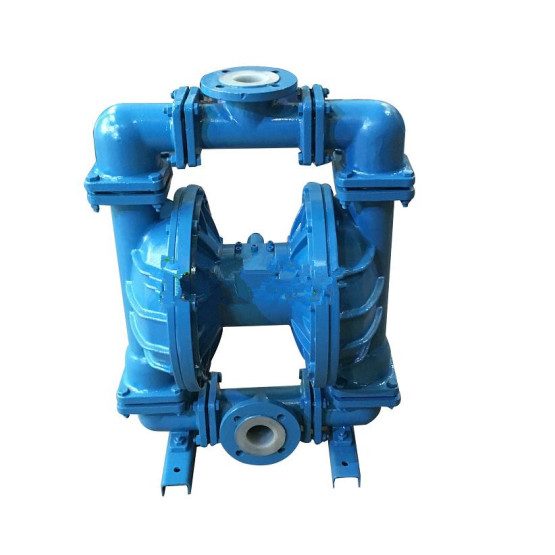

Lining PTFE anti-corrosion pneumatic diaphragm pump | Corrosion resistant diaphragm pump

1. No need to irrigate water, the suction stroke is up to 2-7m, the lift is up to 50m, and the outlet pressure is ≥6kgf/c m2.

2, large particles, up to 10mm in diameter When pumping mud, impurities, the pump wears little.

3. The head and flow can be adjusted steplessly through the opening of the valve. (The air pressure is adjusted between 1-7kg/c m2).

4. The pump has no rotating parts. Without the shaft seal diaphragm, the pumped medium is completely separated from the moving parts of the pump and the working medium, and the transported medium will not leak outward. Therefore, when pumping toxic, volatile or corrosive media, it will not cause environmental pollution and endanger personal safety.

5. It is not necessary to use electricity, and it is safe and reliable to use in flammable and explosive places.

6, can be submerged in the medium to work.

Features

1. No need to irrigate water, the suction stroke is up to 2-7m, the lift is up to 50m, and the outlet pressure is ≥6kgf/c m2.

The flow is wide and the performance is good. It allows the QBY pneumatic diaphragm pump to pump both the flowing liquid and the non-flowable medium. It has self-priming pump, submersible pump, shield pump, mud pump and impurity pump. Many advantages.

2, large particles, up to 10mm in diameter When pumping mud, impurities, the pump wears little.

3. The head and flow can be adjusted steplessly through the opening of the valve. (The air pressure is adjusted between 1-7kg/c m2).

4. The pump has no rotating parts. Without the shaft seal diaphragm, the pumped medium is completely separated from the moving parts of the pump and the working medium, and the transported medium will not leak outward. Therefore, when pumping toxic, volatile or corrosive media, it will not cause environmental pollution and endanger personal safety.

5. It is not necessary to use electricity, and it is safe and reliable to use in flammable and explosive places.

6, can be submerged in the medium to work.

7. Easy to use and reliable in operation. The pump can be opened and closed simply by opening and closing the gas valve. Even if there is no medium running or sudden stop due to unexpected conditions, the pump will not be damaged. Once overloaded, the pump will be damaged. It will automatically stop and have self-protection performance. When the load returns to normal, it can automatically start running.

8. Simple structure and less wearing parts. The pump has simple structure, convenient installation and maintenance. The medium transported by the pump will not touch the valve parts, linkages and other moving parts, unlike other types of pumps due to rotors, pistons and gears. The wear of the blades and the like causes the performance to gradually decrease.

9, can transport a more viscous liquid. (viscosity below 10,000 centipoise)

10. The pump does not need to be lubricated with oil. Even if it is idling, it has no effect on the pump. This is a major feature of the pump.

1. Compressed air is the power.

2. It is a volumetric pump caused by the reciprocating deformation of the diaphragm. The working principle is similar to that of the plunger pump. Due to the working principle of the diaphragm pump, the diaphragm pump has the following characteristics:

(1) The pump will not overheat: the compressed air is used as the power, and it is a process of expansion and heat absorption when exhausting. When the pneumatic pump works, the temperature is reduced, and no harmful gas is discharged.

(2) No spark is generated: the pneumatic diaphragm pump does not use electric power for power, and prevents static sparks after grounding.

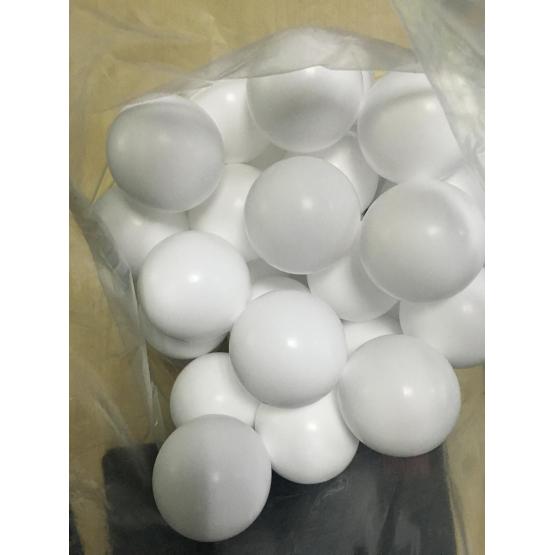

(3) It can pass through the liquid containing particles: because it is volumetric and the inlet is a ball valve, it is not easy to be blocked.

(4) The shearing force on the material is extremely low: how to suck in when working, so the agitation of the material is small, suitable for the transportation of unstable substances.

(5) The flow rate can be adjusted, and a throttle valve can be added at the material outlet to adjust the flow rate.

(6) It has the function of self-priming.

(7) It can be run empty without danger.

(8) You can work diving.

(9) The fluids that can be transported are extremely wide, from low viscosity to high viscosity, and viscous from corrosive.

(10) There is no complicated control system, no cables, fuses, etc.

(11) Small size, light weight and easy to move.

(12) It is easy to maintain without lubrication, and it will not pollute the working environment due to dripping.

(13) The pump is always efficient and will not be degraded by wear.

(14) 100% energy utilization, when the outlet is closed, the pump automatically stops, equipment moves, wears, overloads, heat

(15) There is no dynamic seal, and maintenance is easy to avoid leakage. There is no dead point when working.
