Basic Info

Model No.: BODA-201

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

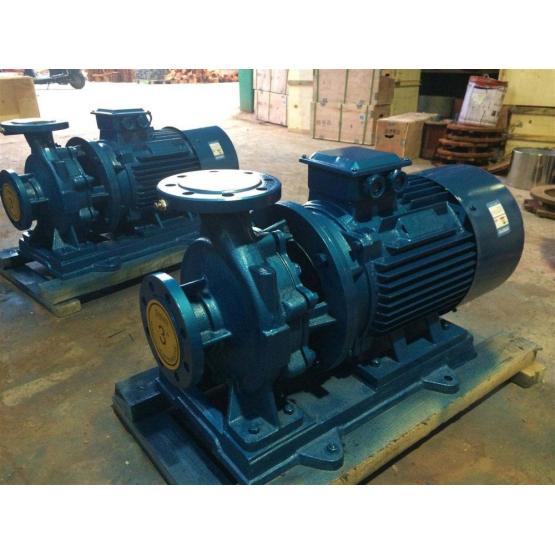

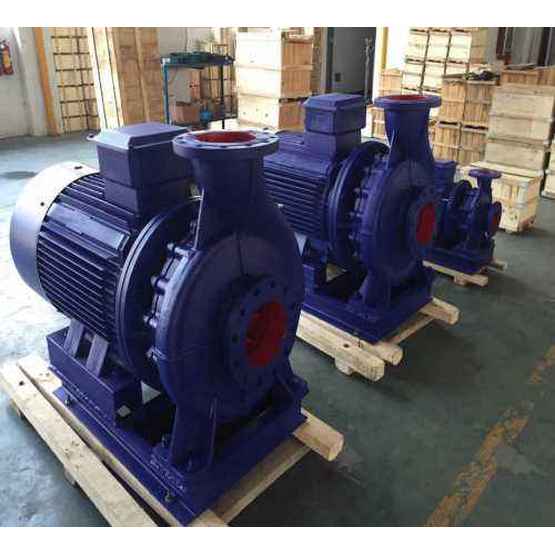

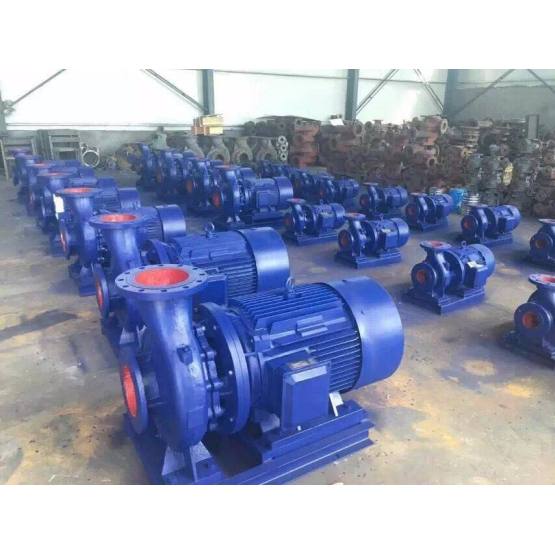

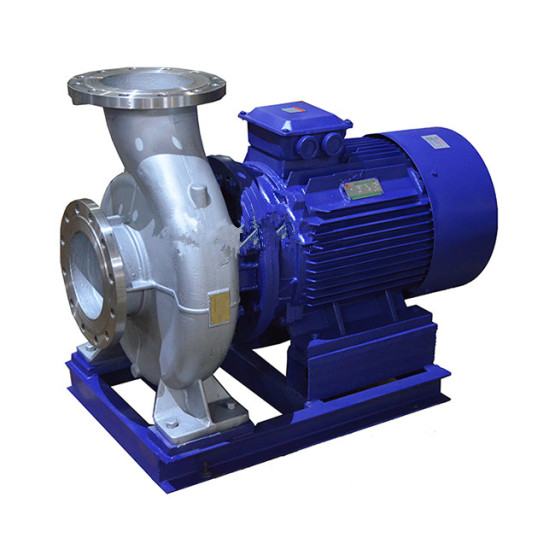

ISWH horizontal stainless steel pipe centrifugal pump for conveying liquids without solid particles, corrosive and viscosity similar to water, suitable for petroleum, chemical, metallurgy, electric power, paper, food, pharmaceutical and synthetic fiber sectors, the temperature is - 20 ° C ~ +105 ° C.

ISWH horizontal stainless steel pipe centrifugal pump product working conditions

1. Suction pressure ≤1.6MPa, or pump system high working pressure ≤1.6MPa, ie pump suction pressure + pump head ≤1.6MPa, pump static pressure test pressure is 2.5MPa, please indicate system work when ordering pressure. When the working pressure of the pump system is greater than 1.6 MPa, it should be separately proposed at the time of ordering, so that the over-flow part and the connecting part of the pump are made of cast steel at the time of manufacture.

2. Ambient temperature <40 ° C, relative humidity <95%.

3. The volume of solid particles in the medium to be transported does not exceed 0.1% of the unit volume, and the particle size is <0.2 mm.

Note: If the medium is used with small particles, please specify when ordering, so that the manufacturer can wear a wear-resistant mechanical seal.

ISWH horizontal stainless steel pipe centrifugal pump product features

Smooth operation: the absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation and no vibration.

Drip water does not leak: Carbide seals of different materials ensure that there is no leakage in the transportation of different media.

Low noise: The water pump supported by two low-noise bearings runs smoothly. Except for the weak sound of the motor, there is basically no noise.

The failure rate is low: the structure is simple and reasonable, and the key parts adopt the world-class quality; the matching, the trouble-free working time of the whole machine is greatly improved.

Convenient maintenance: replacement of seals, bearings, easy and convenient.

It occupies more land: the exit can be left, right and up, which is convenient for pipeline installation and space saving.
