Basic Info

Model No.: BODA-195

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

Smooth operation: the absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation and no vibration.

Drip water does not leak: Carbide seals of different materials ensure that there is no leakage in the transportation of different media.

Low noise: The water pump supported by two low-noise bearings runs smoothly. Except for the weak sound of the motor, there is basically no noise.

The failure rate is low: the structure is simple and reasonable, and the key parts adopt the world-class quality; the matching, the trouble-free working time of the whole machine is greatly improved.

Convenient maintenance: replacement of seals, bearings, easy and convenient.

It occupies more land: the exit can be left, right and up, which is convenient for pipeline installation and space saving.

Pipeline hot water pump overview

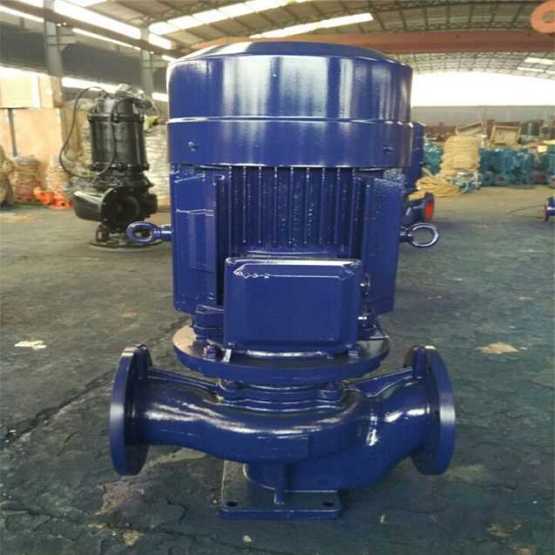

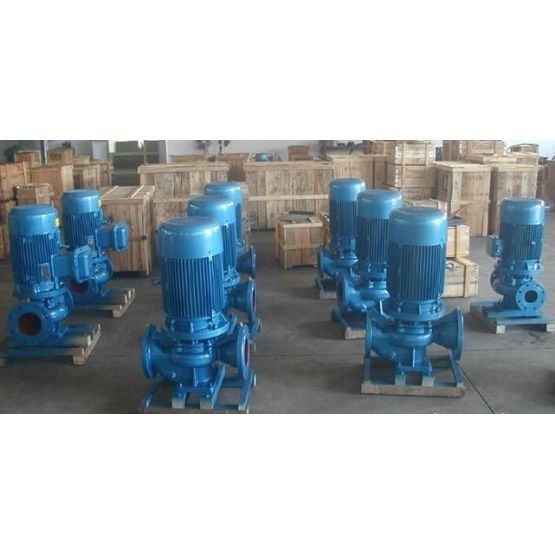

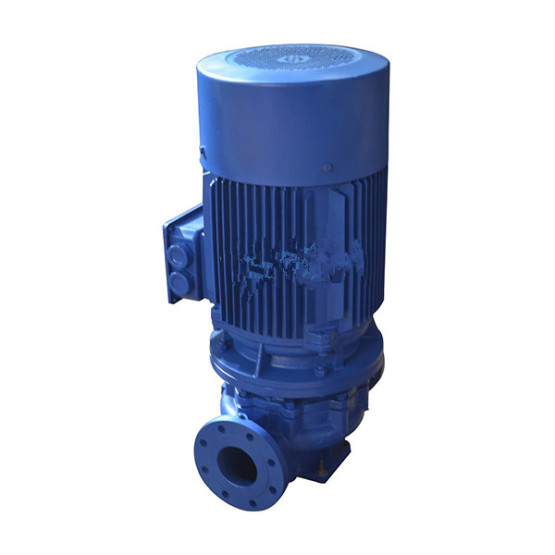

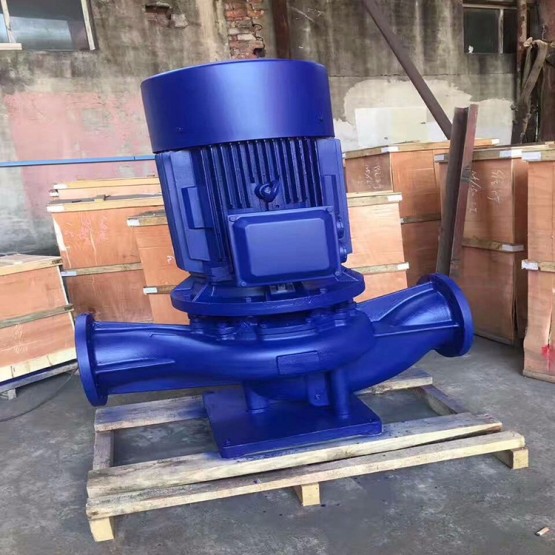

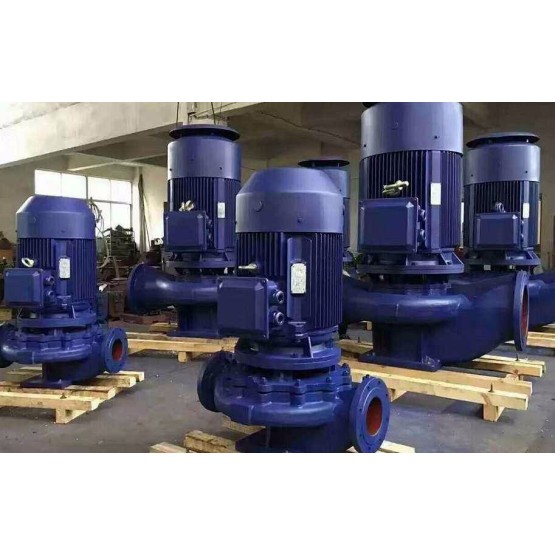

      ISG series single-stage single-suction vertical centrifugal pump is the second generation high-efficiency energy-saving product designed by our company with reference to the performance parameters stipulated by international ISO2858 and national standard JB/T6878.2-93, combined with years of production experience of the company. Ideal for conventional pumps such as SG-type centrifugal pumps, IS-type centrifugal pumps, and D-type multistage centrifugal pumps. The series flow range is 1.5~1600m3/h, and the lift range is 5~125m. It is divided into basic type, split type and cutting type. According to the medium and temperature of the use, the material change and structural change of the over-current part, design and manufacture the IRG type hot water pump with the same performance parameters, IHG type pipeline chemical pump, YG vertical pipeline oil pump, make the use of this series of products popular, completely Can be used in place of conventional centrifugal pumps. IRG vertical single-stage single-suction heat pump is a new generation energy-saving and environment-friendly vertical hot water centrifugal pump researched and developed on the basis of ISG type. This series of pumps has excellent performance, high reliability, long life, reasonable structure, beautiful appearance and industry leading level. IRG vertical single-stage single-suction heat pump is a new generation energy-saving and environment-friendly vertical hot water centrifugal pump researched and developed on the basis of ISG type. This series of pumps has excellent performance, high reliability, long life, reasonable structure, beautiful appearance and industry leading level.

Pipeline hot water pump use

IRG vertical single-stage single-suction heat pump is suitable for metallurgical, chemical, textile, wood processing, papermaking, high-temperature hot water pressurized circulation of boilers, hotels, bathrooms, hotels, etc., and urban housing heating cycle pumps. The operating temperature is below 105 °C. .

Pipeline hot water pump working conditions

1. Suction pressure ≤1.6MPa, or pump system high working pressure ≤1.6MPa, ie pump suction pressure + pump head ≤1.6MPa, pump static pressure test pressure is 2.5MPa, please indicate system work when ordering pressure. When the working pressure of the pump system is greater than 1.6 MPa, it should be separately proposed at the time of ordering, so that the over-flow part and the connecting part of the pump are made of cast steel at the time of manufacture.

2. Ambient temperature <40 ° C, relative humidity <95%.

3. The volume of solid particles in the medium to be transported does not exceed 0.1% of the unit volume, and the particle size is <0.2 mm.

Note: If the medium is used with small particles, please specify when ordering, so that the manufacturer can wear a wear-resistant mechanical seal.

Pipeline hot water pump product features

Smooth operation: the absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation and no vibration.

Drip water does not leak: Carbide seals of different materials ensure that there is no leakage in the transportation of different media.

Low noise: The water pump supported by two low-noise bearings runs smoothly. Except for the weak sound of the motor, there is basically no noise.

The failure rate is low: the structure is simple and reasonable, and the key parts adopt the world-class quality; the matching, the trouble-free working time of the whole machine is greatly improved.

Convenient maintenance: replacement of seals, bearings, easy and convenient.

It occupies more land: the exit can be left, right and up, which is convenient for pipeline installation and space saving.

Pipeline hot water pump use range

1. ISG vertical centrifugal pump is used for conveying clean water and other liquids with physical properties like clear water. The medium temperature is not more than 80 °C. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler, fire boosting Long-distance water supply, heating, bathroom and other cold and warm water circulation pressurization and equipment support.

2, IRG vertical hot water circulation pump, suitable for energy, metallurgy, wood processing, chemical, textile, paper and restaurant, bathroom, hotel and other boiler hot water pressurized circulation and urban heating system circulation pump, the use of medium temperature is not More than 120 ° C.

3, IHG vertical chemical pump, suitable for light textile, petroleum, chemical, pharmaceutical, health, food, oil refining and other industries to transport chemical corrosive liquid, medium temperature is -20 ° C ~ +120 ° C.

4. YG vertical pipeline oil pump is used to transport petroleum products such as gasoline, kerosene and diesel oil. The temperature of the medium to be transported is -20 °C ~ +120 °C.

Pipeline hot water pump working conditions

1. Suction pressure ≤1.6MPa, or pump system high working pressure ≤1.6MPa, ie pump suction pressure + pump head ≤1.6MPa, pump static pressure test pressure is 2.5MPa, please indicate system work when ordering pressure. When the working pressure of the pump system is greater than 1.6 MPa, it should be separately proposed at the time of ordering, so that the over-flow part and the connecting part of the pump are made of cast steel at the time of manufacture.

2. Ambient temperature <40 ° C, relative humidity <95%.

3. The volume of solid particles in the medium to be transported does not exceed 0.1% of the unit volume, and the particle size is <0.2 mm.

Note: If the medium is used with small particles, please specify when ordering, so that the manufacturer can wear a wear-resistant mechanical seal.
