Basic Info

Model No.: BODA-094

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

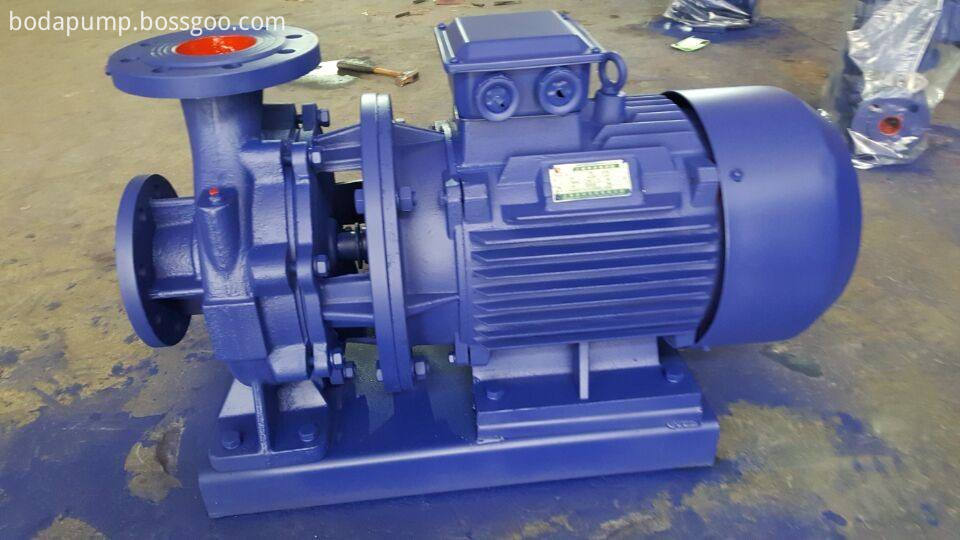

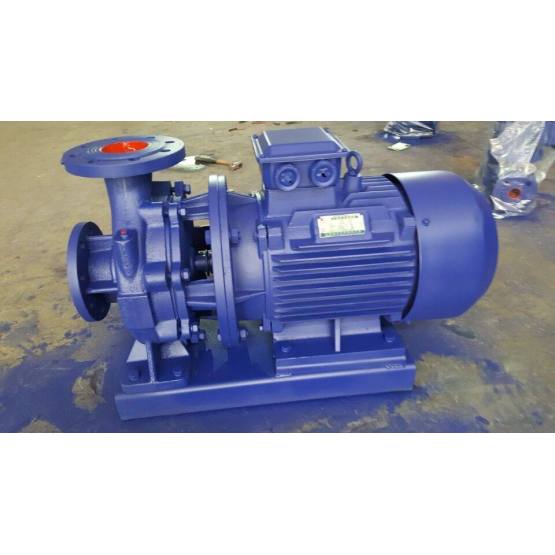

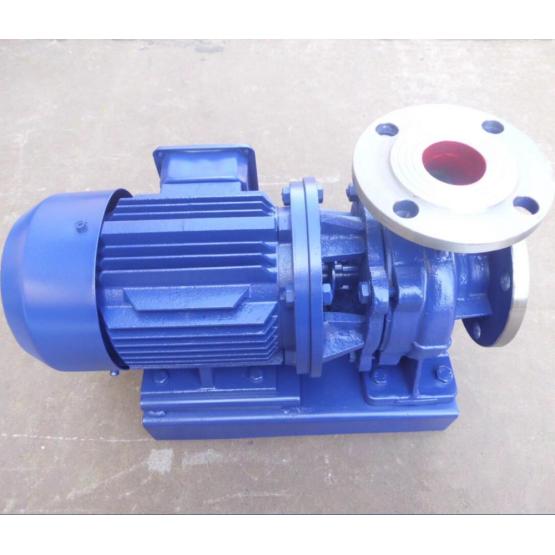

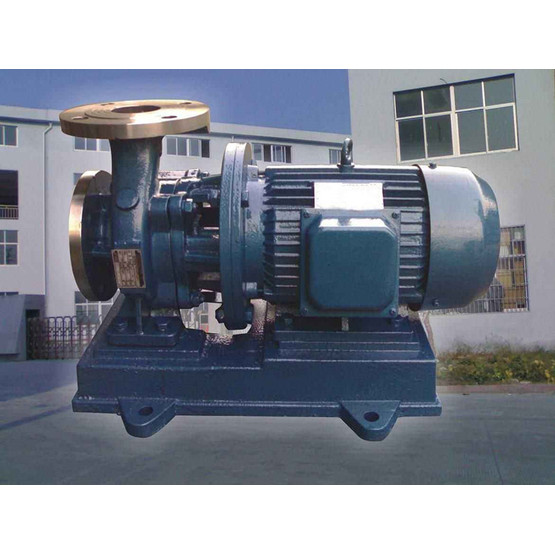

IHW stainless steel horizontal pipeline centrifugal pump overview

IHW type stainless steel horizontal pipeline centrifugal pump is marked with the rated performance point and size equivalent to the international standard ISO2858-1975 (E), is an energy-saving product to replace the F-type corrosion-resistant pump replacement, suitable for chemical, petroleum, Metallurgy, power station, food, pharmaceutical, synthetic fiber and other departments transport corrosive media with temperatures between -20 ° C and 105 ° C or media with physical and chemical properties similar to water.

IHW type stainless steel horizontal pipeline centrifugal pump use

1. IHW horizontal stainless steel pipeline centrifugal pump is used for conveying clean water and other liquids with physical and chemical properties similar to clean water. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden irrigation, fire boosting and equipment matching. , use temperature T: ≤ 80 ° C.

2, ISWR (WRG) type hot water (high temperature) circulation pump is widely used in energy, metallurgy, chemical, textile, paper, and hotels and other high temperature hot water pressurized circulation pump and urban heating system circulation pump, ISWR use temperature T: ≤ 120 ° C, WRG use temperature T: ≤ 240 ° C.

3, ISWH horizontal chemical pump for transporting solid particles, corrosive, viscosity similar to water, suitable for petroleum, chemical, metallurgy, electric power, paper, food, pharmaceutical and synthetic fiber sectors, temperature: -20°C-120°C

4, ISWB horizontal oil pump for the delivery of gasoline, diesel, kerosene and other petroleum products, the use temperature T: -20 ° C -120 ° C.

IHW type stainless steel horizontal pipeline centrifugal pump working conditions

1. Suction pressure ≤1.0Mpa, or pump system high working pressure ≤1.6Mpa, ie pump suction pressure + pump head ≤ 1.6Mpa, pump static pressure test pressure is 2.5Mpa, please indicate system working pressure when ordering. When the working pressure of the pump system is greater than 1.6Mpa, it should be separately submitted at the time of ordering. In order to manufacture, the overcurrent components and the coupling portion of the pump are made of cast steel.

2. Ambient temperature <40 ° C, relative humidity <95%.

3. The volume of solid particles in the medium to be transported does not exceed 0.1% of the unit volume, and the particle size is <0.2 mm.

Note: If the medium is used with fine particles, please specify when ordering so that a wear-resistant mechanical seal is used.
