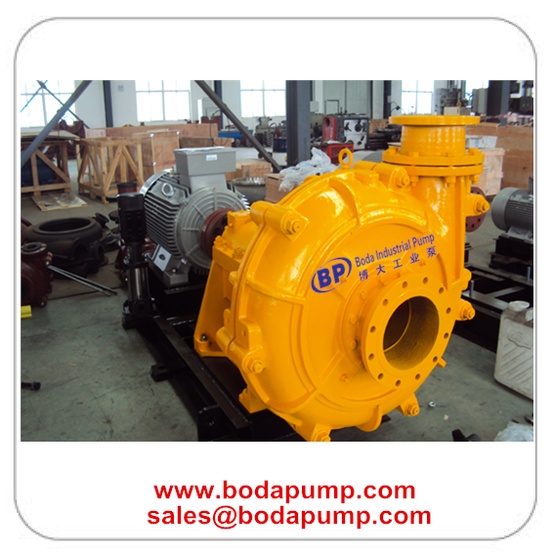

Horizontal Centrifugal Slurry Pump
| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: ZJ
Model No.: ZJ
Working Pressure: High Pressure Pump
Position Of Pump Shaft: Horizontal Pump
Impeller: Closed
Material: A05 A07 A49
Discharge Diameter: 65-450mm
Origin: Shijiazhuang
Drive Type:: CV, DC, Zv, Cr
Color: As Your Requirement
Package: In Woodenc Case Or As Your Requirement
Additional Info
Packaging: In Wooden case or as your requirement
Productivity: 200sets/month
Brand: Boda
Transportation: Ocean,Land,Air
Place of Origin: Shijiazhuang
Certificate: ISO
Product Description
Coal and Power Plant Ash Pump Introduction
1)Type ZJ slurry pumps are widely used in the mining, metallurgy, power, chemistry, and construction industry to pump slurries with high abrasive and corrosive. It is suitable for handing slurry with maximum weight concentration of 45%(ash) or 60%(ore). It can be driven with direct driven belt, hydraulic, or variable frequency speed control methods. It also can be operated in serials or parallel connection.
2)ZJ series solid and liquid slurry pumps are a kind of effective wearable slurry pump they adopt the newest solid -liquid two phase flow velocity theory published internationally by now. ZJ Pumps are widely used in construction industry to pump high abrasive and corrosion slurry, chemical industry, building material.
Features:
The discharge outlet can be adjusted at eight directions with intervals of 45 degree to adapt various operating environments
1. High chrome alloy lining allows for various abrasive material handling;
2. Large handling size means fewer clogged impellers;
3. Robust design allows it to be in difficult application environments;
4. High efficiency enables it save large energy;
5. Strong abrasive resistance material means long life cycle and low maintenance cost;
6. Replaceable wear metal liner means simple maintenance.
Application:
It is used in electric power, metallurgy, coal, building materials, chemical industry.
Technical Data:
Outlet Diameter: 40-350 (mm)
Capacity: 4.5-2339 (m3 / h)
Head: 6.0-133 (m)
Horizontal Centrifugal Slurry Pump Technical Data:
| Type | Speed | Capacity | Head | NPSH |
| rpm | m³/h | m | m | |
| 300ZJ-I-100A | 490/590 | 758-1826 | 40.9-65.2 | 3-4.1 |
| 300ZJ-I-95A | 490/590 | 720-1735 | 36.9-58.8 | 3-4.1 |
| 300ZJ-I-90A | 590/730 | 745-1844 | 46.2-79.9 | 3.9-5.7 |
| 300ZJ-I-85A | 590/730 | 704-1742 | 41.2-71.3 | 3.8-5.6 |
| 300ZJ-I-70A | 730/980 | 945-2333 | 35.5-76.8 | 3.9-7 |
| 300ZJ-I-65A | 730/980 | 877-2166 | 30.6-66.2 | 3.7-6.6 |
| 300ZJ-I-56A | 730/980 | 588-1568 | 21.5-46 | 3.5-5.5 |
| 250ZJ-103A | 590/730 | 593-1573 | 64.6-110.5 | 2.8-4.3 |
| 250ZJ-I-96A | 590/730 | 595-1466 | 55.2-93.7 | 3.5-5.5 |
| 250ZJ-I-90A | 590/730 | 558-1374 | 48.5-82.4 | 3.4-5.3 |
| 250ZJ-I-85A | 730/980 | 560-1504 | 66.8-128.7 | 3.5-5.5 |
| 250ZJ-I-83A | 730/980 | 547-1469 | 63.7-122.7 | 3.5-5.5 |
| 250ZJ-I-80A | 730/980 | 527-1416 | 59.2-114 | 3.4-5.4 |
| 250ZJ-I-78A | 730/980 | 514-1380 | 56.3-108.4 | 3.2-5.1 |
| 250ZJ-I-75A | 730/980 | 447-1480 | 46.2-97.5 | 3-4.1 |
| 250ZJ-I-73A | 730/980 | 435-1441 | 43.8-92.4 | 3-4.1 |
| 250ZJ-I-70A | 730/980 | 417-1381 | 40.2-84.9 | 2.9-3.9 |
| 250ZJ-I-68A | 730/980 | 405-1342 | 38-80.1 | 2.7-3.7 |
| 250ZJ-I-65A | 730/980 | 445-1249 | 34.1-71 | 3-4.5 |
| 250ZJ-I-63A | 730/980 | 431-1211 | 32-66.7 | 3-4.5 |
| 250ZJ-I-60A | 730/980 | 411-1153 | 29.1-60.5 | 2.8-4.2 |
| 200ZJ-I-85A | 730/980 | 329-907 | 71-133.7 | 2.8-5 |
| 200ZJ-I-75A | 730/980 | 335-900 | 50.5-102.9 | 3-4.5 |
| 200ZJ-I-73A | 730-980 | 326-876 | 47.8-97.5 | 3-4.5 |
| 200ZJ-I-70A | 730/980 | 305-976 | 43.1-86.4 | 2.8-3.8 |
| 200ZJ-I-68A | 730/980 | 296-948 | 40.7-81.5 | 2.8-3.8 |
| 200ZJ-I-65A | 730/980 | 350-950 | 36.4-72 | 2.5-4.3 |
| 200ZJ-I-63A | 730/980 | 339-921 | 34.2-67.6 | 2.5-4.3 |
| 200ZJ-I-60A | 730/980 | 324-870 | 30.8-62 | 2.5-4 |
| 200ZJ-I-58A | 730/980 | 313-841 | 28.8-57.9 | 2.5-4 |
| 150ZJ-I-70A | 730/980 | 139-401 | 44.3-91.2 | 2-3 |
| 150ZJ-I-65A | 730/980 | 223-600 | 38.5-75.7 | 2.5-4 |
| 150ZJ-I-63A | 730/980 | 216-582 | 36.2-71.1 | 2.5-4 |
| 150ZJ-I-60A | 730/980 | 201-550 | 32.6-63.5 | 2.5-3.8 |
| 150ZJ-I-58A | 730/980 | 194-532 | 30.5-59.3 | 2.5-3.8 |
| 150ZJ-I-55A | 730/980 | 184-504 | 27.4-53.4 | 2.3-3.5 |
| 150ZJ-I-58C | 730/980 | 200-596 | 28.4-61 | 2-3.2 |
| 150ZJ-I-57A | 730/980 | 142-427 | 29.4-56.3 | 1.8-2.9 |
| 150ZJ-I-50A | 730/980 | 171-460 | 21-43.1 | 2.5-3 |
| 150ZJ-I-48A | 730/980 | 164-442 | 19.4-39.7 | 2.5-3 |
| 150ZJ-I-42C | 980/1480 | 199-550 | 23.8-62.8 | 2.2-4.5 |
| 100ZJ-I-50A | 980/1480 | 119-360 | 40.2-100.2 | 2.5-4.5 |
| 100ZJ-I-46A | 980/1480 | 109-331 | 34-84.8 | 2.3-4.2 |
| 100ZJ-I-42A | 980/1480 | 93-275 | 28.7-70.8 | 2.5-4 |
| 100ZJ-I-39A | 980/1480 | 86-255 | 24.7-61 | 2.4-3.8 |
| 100ZJ-I-42B | 980/1480 | 64-205 | 24.7-70.7 | 1.8-2.8 |
| 100ZJ-I-36A | 980/1480 | 86-245 | 19-49.5 | 2-3.5 |
| 100ZJ-I-33A | 980/1480 | 79-225 | 16-41.6 | 1.8-3.2 |
| 80ZJ-I-52A | 980/1480 | 71-242 | 43.4-109.8 | 2.1-4.3 |
| 80ZJ-I-42A | 980/1480 | 86-204 | 28.1-70.4 | 2.5-4.2 |
| 80ZJ-I-39A | 980/1480 | 80-189 | 24.3-60.7 | 2.4-4 |
| 80ZJ-I-36A | 980/1480 | 65-190 | 18.7-51.4 | 2.5-3.7 |
| 80ZJ-I-33A | 980/1480 | 60-174 | 15.7-43.2 | 2.3-3.4 |
| 65ZJ-I-30A | 980/1480 | 31-79 | 13.8-34.8 | 2-3 |
| 65ZJ-I-27A | 980/1480 | 28-71 | 11.2-28.2 | 1.8-2.7 |
| 50ZJ-I-50A | 980/1480 | 38-111 | 43.8-110.7 | 3-3.8 |
| 50ZJ-I-46A | 980/1480 | 31-94 | 34.3-85.8 | 1.4-2.9 |
| 50ZJ-I-33A | 980/1480 | 17-54 | 14.5-42.5 | 2.9-6 |
| 40ZJ-I-17A | 1400/2900 | 4-23 | 9.1-44.6 |
2.5-4.5 |
Horizontal Centrifugal Slurry Pump Application:
