Basic Info

Model No.: WN

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Model No.: BM BH

Additional Info

Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Supply Ability: 100 sets/ month

Certificate: ISO

HS Code: 8413709990

Port: Tianjin,SHANGHAI,As Your Request

Product Description

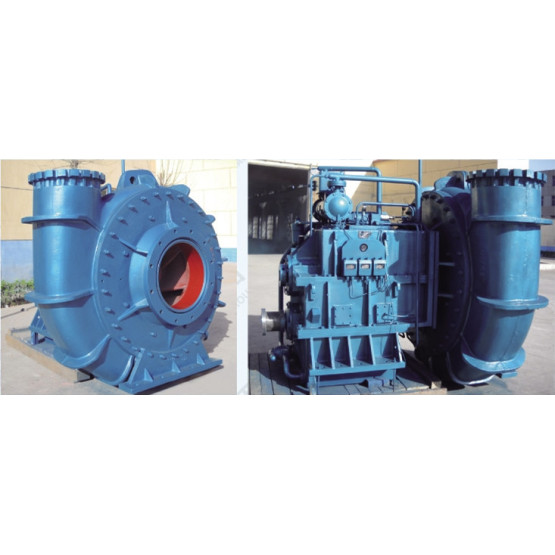

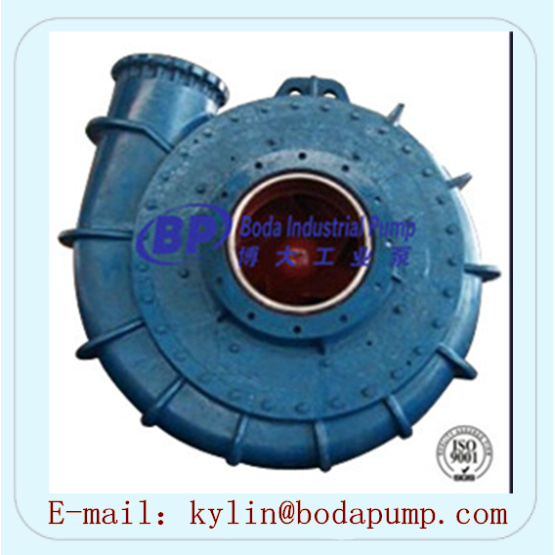

Name:Horizontal Cantilevered Dredging Pump (WN)      WN      Dredger Pump         Dredger Pump       Gravel Pump

Descrrption:
Dredging pump is a new type of WNpump researched & manufactured by our company,aiming at rivers and seas out of repair. Dredging pump is a single-stage single suction cantilever horizontal centrifugal pump with advantages of light weight, good wear-resistan, super dredging performance, perfectly suited for the dredge on the whole construction, high multiple economy benefits, etc.. It throughout meets requirements of the dredge to dredging pumps.

Application:
Our dredging pumps are widely used to dredge and dam in the rivers, ports and wharf over our country, such as Yangtze river , The Yellow River , Liao River, and Zhujiang Delta. Besides, sold to Europe, Middle East and Southeast Asia. CCS(China Classification Society) has inspected each set.

Function Introduction:

1. This pump is of horizontal cantilevered single-casing centrifugal pump.
2. Construction of this pump is of single casing connected by means of clamp bands and the discharge direction of pump can be oriented in any direction of 360. the type of pump possesses the advantages of easy installation.
3. The cylinder type bearing assembly with oil lubrication is adopted by the pump. It is suit for adjusting the distance between impeller and pump. The bearing assembly uses oil lubrication.
4. Three kinds of shaft seal---mechanical seal, expeller seal and packing seal
5. Wide passage , good performance of NPSH, anti-wearing and anti-corrosion, and high efficiency,

6. The type of driver just have v belt driver, gearbox driver, elastic coupling driver, fluid couplings driver, frequency conversion driver, silicon controlled rectifier speed regulation etc.
