Basic Info

Model No.: BHP

Impeller Number: Single-Stage Pump

Working Pressure: Low Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Horizontal Split Pumps

Mounting Height: Suction Centrifugal

Impeller: Closed

Usage: Pumps

Application: Mining, Steel Factory, Sand Transportation

Material:: A05, A07, A49

Theory:: Centrifugal Pump

Shaft Seal:: Packing Seal, Mechanical Seal, Expeller Seal

Application 1:: Mine And Miner Processing

Medium Concentration: Max Cv Or CW 80% At Heavy Duty

Fuel:: Electric Or Fuel Driven By Engine

Power:: Electric

Usage:: Slurry, Sludge, Mud And Dirty Water In Mining

Pump Name: Horizontal Centrifugal Heavy Duty Mining Slurry Pu

Additional Info

Packaging: In wooden case

Productivity: 500 sets per month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 300 sets per month

Certificate: ISO90001

HS Code: 8413709990

Port: Xingang,Horgos,SHANGHAI

Product Description

Application:

Surry pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, chemical and general industry applications. The horizontal slurry pumps are designed for heavy duty applications such as mill discharge, power sector and tailings as well as specialty applications, which are used for continuous pumping of high abrasive, high density slurry.

Gravel Dredger Pump Product description:

Gravel Dredger Pump are designed for continously handling the most difficult hype BG(H) gigher abrasive slurries which contain too big solids to be pumped by common pump.They are suitable for delivering slurries in Mining, Explosive sludge in metal melting.Dredging in dredger and course of rivers, and other fields.Type BGH pumps are of high head ones.

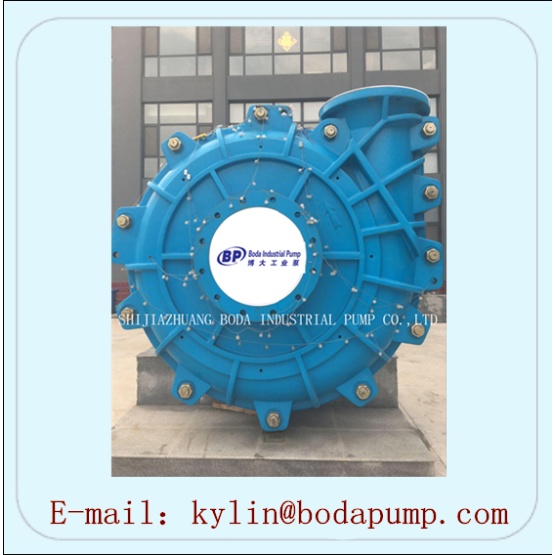

Construction of Gravel Dredger Pump  is of single casing connected by means of clamp bands and wide wet passage.The wet parts are made of Ni-hard and high chromium abrasion-resistance alloys.The discharge direction of Gravel Dredger Pump can be oriented in any direction of 360 degree.This type of Gravel Dredger Pump possesses the advantages of easy installation and operation, good performance of NPSH and abrasion-resistance.

BG(H)  Gravel Dredger Pump Performance Table
Pump Model	Allowable Max. Power	Clear Water Performance
		Capacity Q		Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	Impeller  Dia.
		m 3 /h	l/s
100G-GH	60	36-250	10-70	5-52	600-1400	58	2.5-3.5	378
150G-GH	120	126-576	35-160	6-45	800-1400	60	3-4.5	378
200G-GH	560	216-936	60-260	8-52	500-1000	65	3-7.5	533
200G-GH	560	180-1440	50-400	24-80	500-950	72	2.5-5	711
250G-GH	600	360-1440	100-400	10-60	400-850	65	1.5-4.5	667
250G-GH	600	288-2808	80-780	16-80	350-700	73	2-10	950
300G-GH	600	576-3024	160-840	8-70	300-700	68	2-8	864
350G-GH	600	720-3600	200-1000	18-44	300-500	70	3-9	1016
350G-GH	1200	324-3600	90-1000	26-70	300-500	72	3-6	1270
