Basic Info

Model No.: BODA-045

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Double-Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Horizontal Split Pumps

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pumps

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

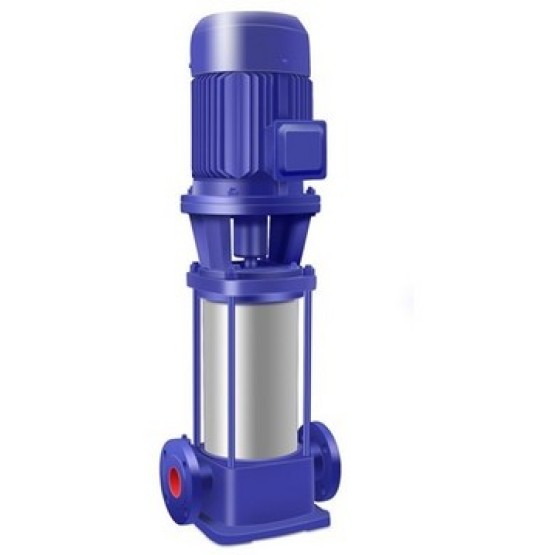

GDL Multi Stage Vertical Centrifugal Pump
Material:SUS 304/Cast Iron
Multi stage pump for Circulation System
High Head Delivery

Description:
This type of pump is suitable for the circulation and pressurization of cold and hot clean water in high-pressure operation system, water supply under parallel operation of several pumps in high-rise constructions, water supply for fire control and boilers, cooling water system, and the delivery of various washing liquids.
Specification:
1. Flow rate up to 72 m3/h
2. Delivery head up to 150 m
3. Power up to 30 kw 2900r/min Volt=380V/50HZ Three-phase power supply
4. Suitable Medium:Water or Similar Liquid
5.Operation Temperature: -20°C-120°C
6.Easy maintenance and spare parts changing
7.Mechanical Seal
Materials:
Flow-Through:Cast Iron/Stainless Steel
Body: Stainless Steel
