Basic Info

Model No.: BODA-072

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Horizontal Split Pumps

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pumps

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

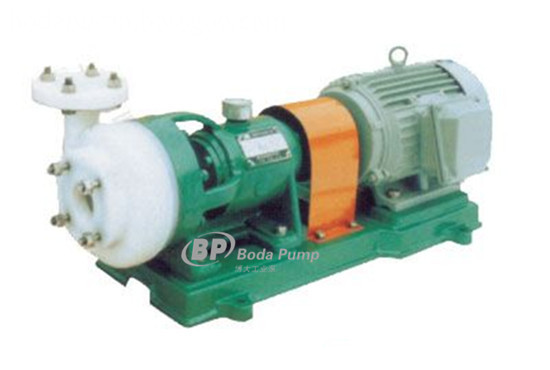

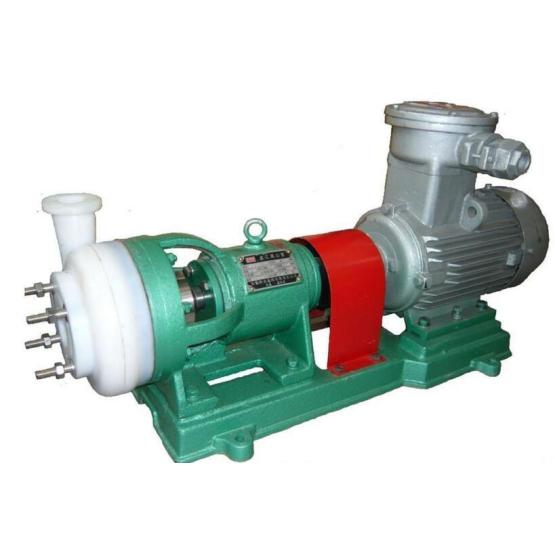

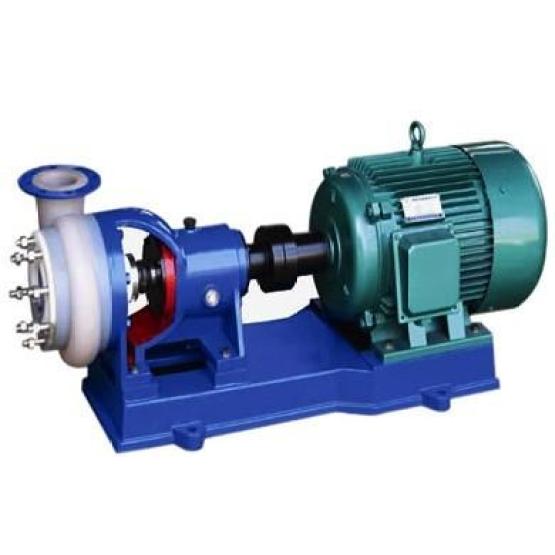

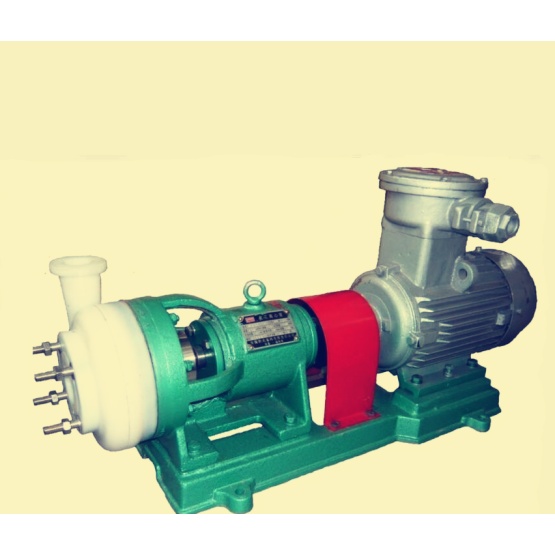

FSB fluoroplastics centrifugal Chemical pump

Specifications

FSB type fluoroplastics chemical pump

1. open impeller ,no clogging

2. flour-plastic liner

3.CE.ISO.

4acid-resistant.

Specifications

FSB type fluoroplastics chemical pump

1. open impeller ,no clogging

2. flour-plastic liner

3.CE.ISO.

4acid-resistant.

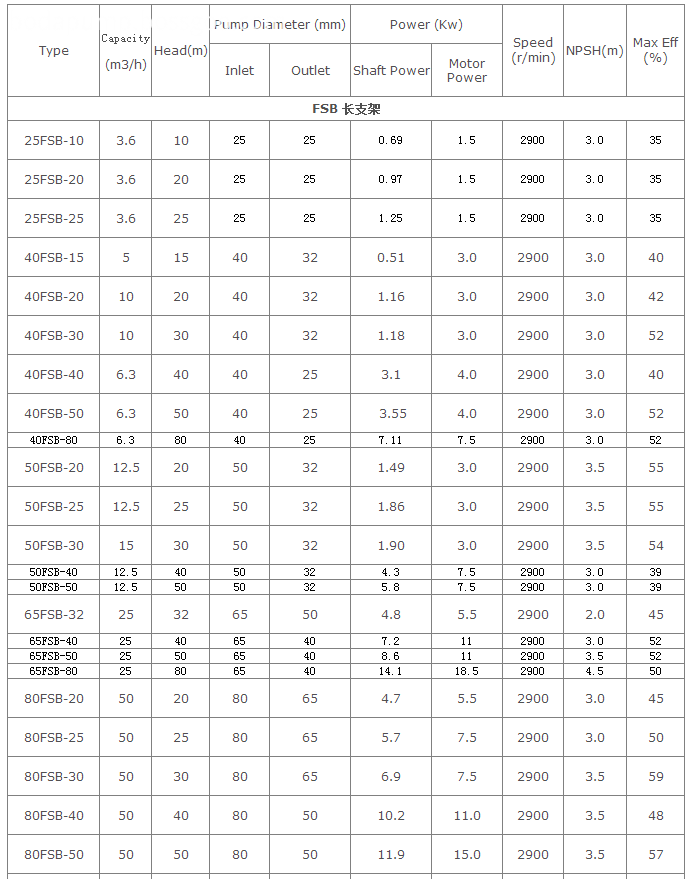

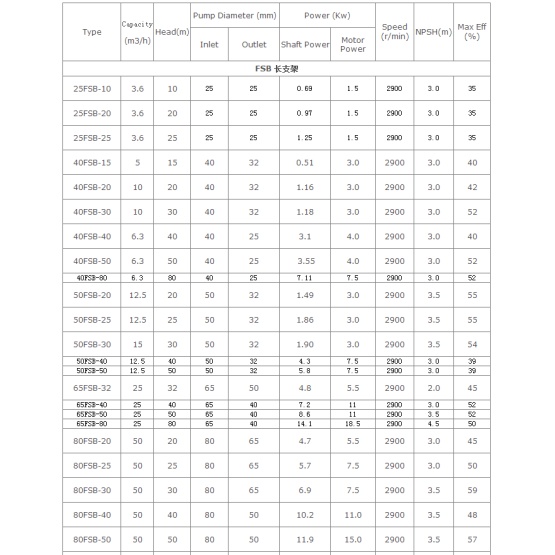

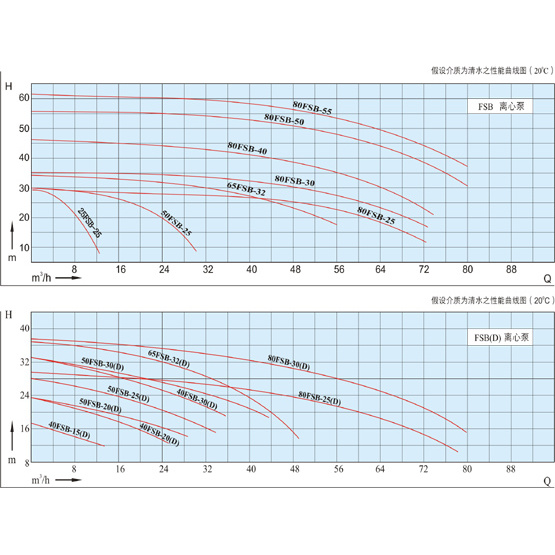

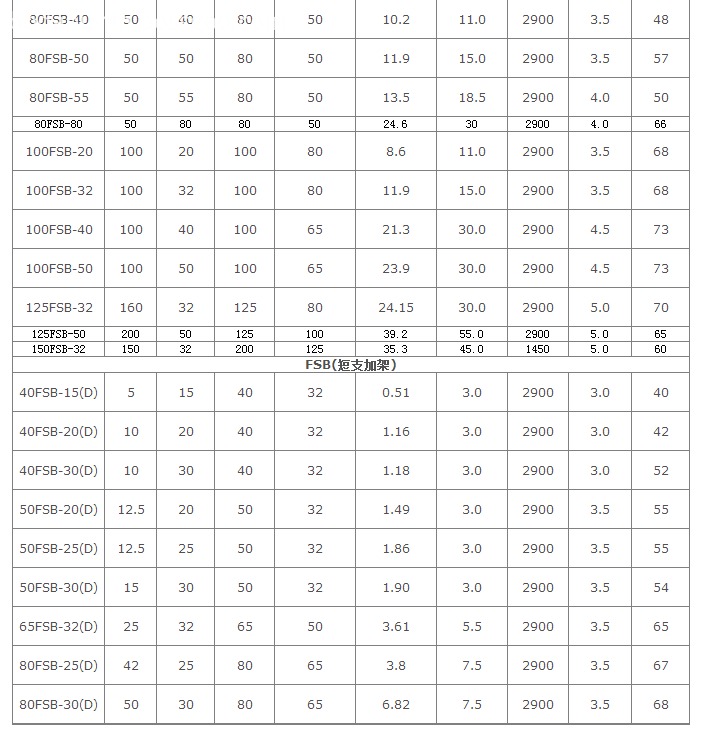

1,FSB type fluoroplastics chemical pump technical parameter

a) Caliber: DN40-DN125mm

b) Flow: 6.3-200m3/hr

c) Head:20-50 m

d) Rotate speed: 2900r/min

e) Motor power:1.5-55 KW

f) Working temperature: -20-100°C

g) System work pressure ≤1.6MPa

2,production overview :

The IHF Series are single-stage, single suction and fluorplastic Alloy centrifugal pumps. The pump has a corrosion-resistant, wear-resistant, high temperature resistant, non-aging, high mechanical strength, non-toxic decomposition. The pump body is made by metal housing and FEP (F46) lining, pump cover, impeller and shaft sleeve are made by integrated sintering and pressure molding of metal insert and Fluor plastic housing, shaft seal is sealed by external bellow mechanical seal.
3,main feature:
a) Has advanced and logical structure

b) Reliable sealing performance

c) Stable operation

d) Low noise and long life-span

4,main usage :
widely used with the chemical, pharmaceutical, petroleum, metallurgy, electricity, electroplating, pickling, pesticide, paper and other industries in the liquid delivery, wastewater treatment and processing acids, etc. process.
