Basic Info

Model No.: BODA-131

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Verticaljoint Surface Pump

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pump

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

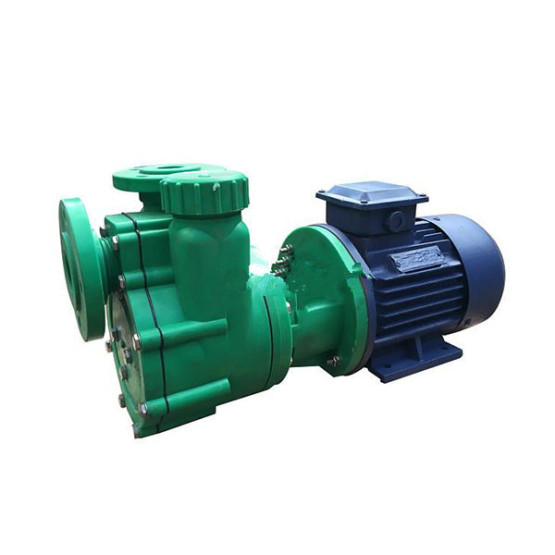

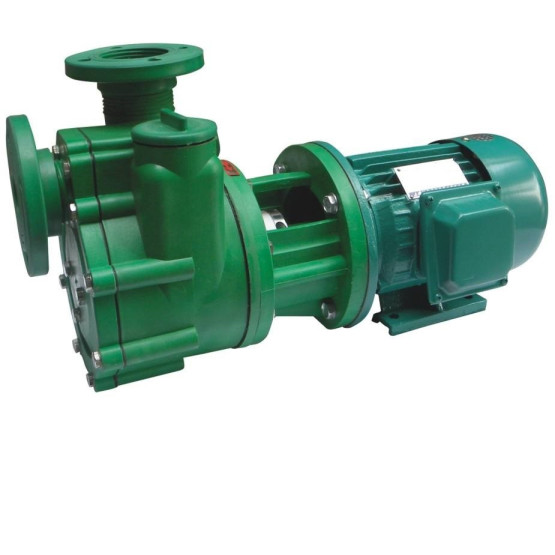

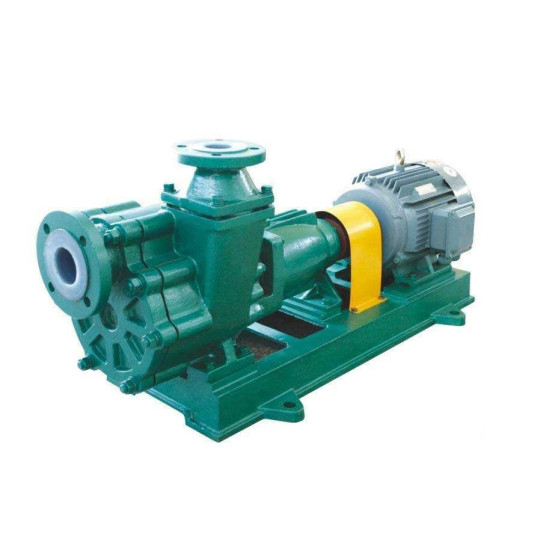

Corrosion-resistant self-priming pump overview

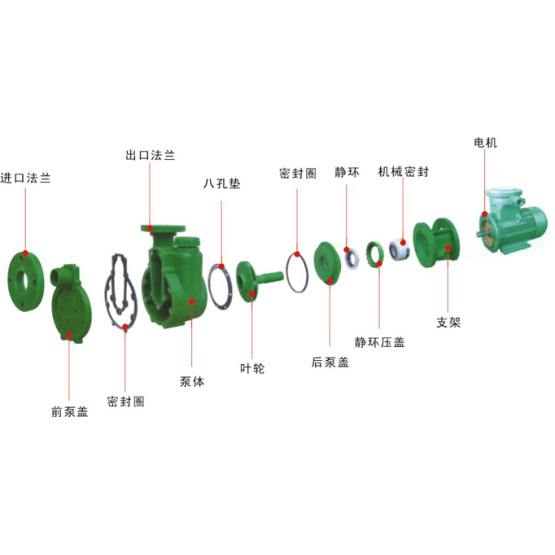

   The FPZ series of corrosion-resistant self-priming pumps are injection molded from polyvinylidene fluoride (PVDF) and reinforced polypropylene (RPP). The machine has high mechanical strength and strong corrosion resistance. The self-priming pump has a unique scientific structure. The pump chamber is provided with a liquid suction chamber, a liquid storage chamber, a liquid return check valve, a gas-liquid separation chamber and a return hole. It is only necessary to infuse the liquid before the first start, and it is not necessary to repeat the infusion after the first start. When the medium is sucked, the liquid can be intermittently stopped, and the liquid can be continuously sucked for 15 minutes, and the mechanical seal does not need additional cooling water. Cooling, easy to operate, safe and leak-free, is a good product to replace the submerged pump. The corrosion-resistant self-priming pump is suitable for the transport of various corrosive media from -40 ° C to +120 ° C (PVDF) and from -40 ° C to +80 ° C (RPP). The main purpose of corrosion-resistant self-priming pump: suitable for petroleum, chemical, pharmaceutical, smelting, food, film and television printing, water treatment and other industries, is an ideal product for environmental protection.
