Basic Info

Model No.: CQB

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Product Name: High Chrome Mineral Processing Slurry Pumping Mach

Additional Info

Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Supply Ability: 300 sets per month

Certificate: ISO

HS Code: 8413709990

Port: Xingang,Ruili,SHANGHAI

Product Description

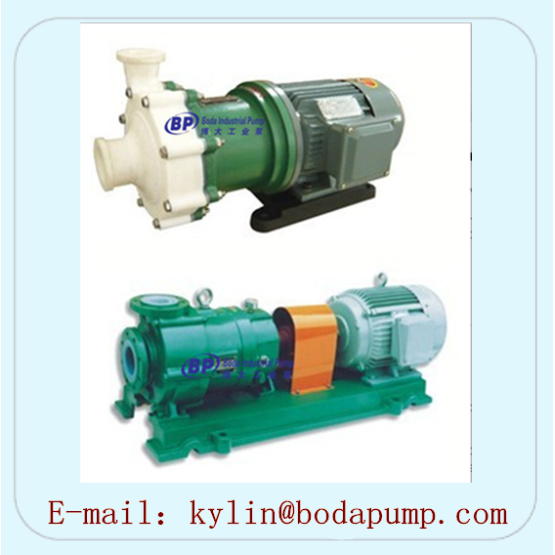

Name:Fluorine Plastic Alloy Magnetic Pump   Magnetic Pump   Fluorine Plastic Pump   CQB

Summarize:
CQB steel fluorine plastic magnetic pump seal removed, the use of indirect magnetic coupling drive, completely eliminating the drip of trouble, not to use contaminated sites.
As part of the pump over current use "fluorine plastic" manufacturing. It can continuously transport the concentration of acids, bases, strong oxidizing agents and other corrosive media, no damage, with fully sealed, no leaks, corrosion resistance and other advantages.

Structure:
CQB steel fluorine plastic magnetic pump to replace the static seal dynamic seal, the use of active magnetic coupling drive directly onto the motor shaft, pump room completely closed, indirect drive shaft through magnetic coupling with a magnet on the impeller rotation, with the structure compact, good looks, safety and energy-saving features.
The pump although the contact with the liquid part of the fluorine plastic, but the pump casing is metal, so the pump enough to withstand the weight of the pipe and mechanical shock.

Application:
Widely used in chemical, rare earth separation, pesticides, dyes, medicine, papermaking, electroplating, electrolysis, pickling, radio, foil, research institutions, industry, defense industry and other transport any concentration of acid, alkaline, oils, rare and precious liquid, toxic liquid, volatile chemical media. Particularly susceptible to leakage, flammable, explosive corrosive liquid.
