Basic Info

Model No.: BODA-054

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Horizontal Split Pumps

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pumps

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

FJX Axial Flow Evaporation Circulating Pump

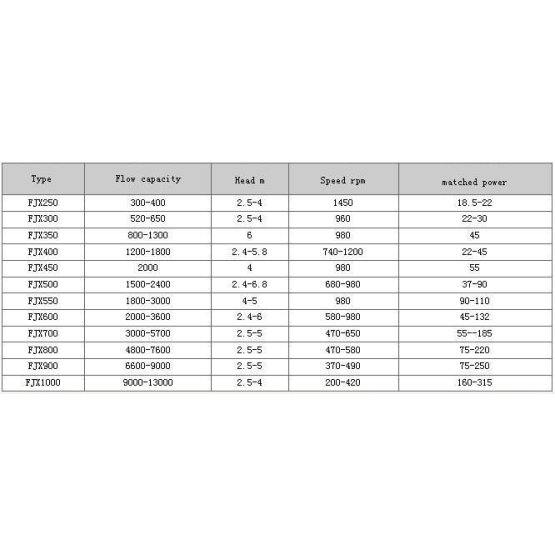

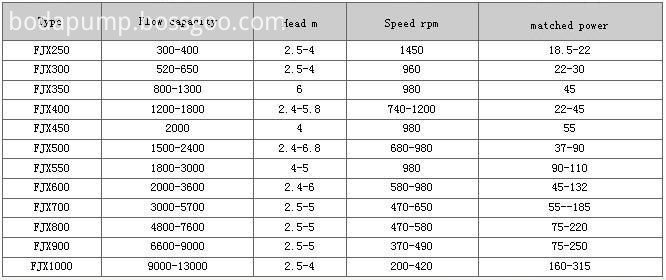

1.FJX Axial Flow Evaporation Circulating Pump

2.Capcity:800-10000m3/h

3.Delivery lift:2-8m

4.Diameter:350-900mm

5.Working pressure:under 0.6MPa

1 Summarize:
Integrated advantages of evaporation circulating pump both at home and abroad, we have developed FJX axial flow evaporation circulating pump, widely applied for evaporation, crystallizing, chemical reaction in the fields of chemical industry, nonferrous metallurgical, salt making, light industry, its typical application is as follows.

* Phosphate fertilizer plant:forced circulation for wet phosphoric acid concentration plant and AP slurry concentration plant.

* Bayer processing Alumina plant:forced circulation for sodium aluminate evaporator.

* Diaphragm caustic soda plant:forced circulation for caustic soda (including NaCl) evaporator.

* Vacuum salt:forced circulation for NaCl crystallizer.

* Mirabilite plat:forced circulation for Na2SO4 crystallizer.

* Hydrometallurgy plant:forced circulation for copper sulfate and nickel sulfate crystallizer.

* Combination soda plant:forced circulation for cold separation crystallizer of ammonia chloride, salting out crystallizer of ammonia mother liquor.

* Pure soda plant:recovery of ammonium waste liquid, forced circulation for CaCl2 evaporator.
