Basic Info

Model No.: BODA-173

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

Flow rate: 3.6 ~ 200m3 / h;

Head: 15 ~ 64m;

Speed: 2900r/min;

Power: 0.75 ~ 55KW;

Import diameter: 25 ~ 150mm;

High working pressure: 2.0Mpa.

Corrosion-resistant chemical pump overview

      FB type corrosion-resistant pump|Corrosion-resistant chemical pump is a single-stage single-suction cantilever type corrosion-resistant centrifugal pump. The factory absorbs the characteristics of various types of pumps in the 1990s, adopts advanced hydraulic model, novel structure and high-strength combined single and double-end mechanical seal. It has the advantages of high efficiency, energy saving, compact structure, stable performance and reliable use. The FB type corrosion-resistant pump is suitable for conveying solid particles and corrosive liquids. The temperature of the medium to be transported is -20 °C ~ 105 °C, the temperature of the double-face sealed cold device can be -20 °C ~ +280 °C, the inlet pressure of the pump can not be greater than 0.2Mpa, FB type corrosion-resistant pump is widely used in petroleum and chemical industry. , metallurgy, synthetic fiber, pharmaceutical, food, brewing, environmental protection, wastewater treatment and other industrial sectors, FB type corrosion-resistant pump | corrosion-resistant chemical pump can also be used for industrial and mining enterprises and urban water supply, drainage.

Pump structure

The direction of rotation of the pump:

It looks clockwise from the suction port to the motor end.

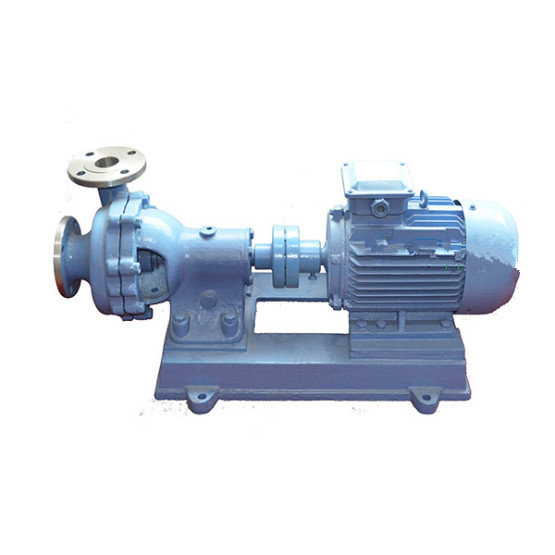

The pump and motor are mounted on the same base via a flexible coupling.

The shaft sealing device of the pump adopts impeller decompression and single or double mechanical seal structure. The bearing body is filled with J30 lubricating oil and equipped with oil mark.

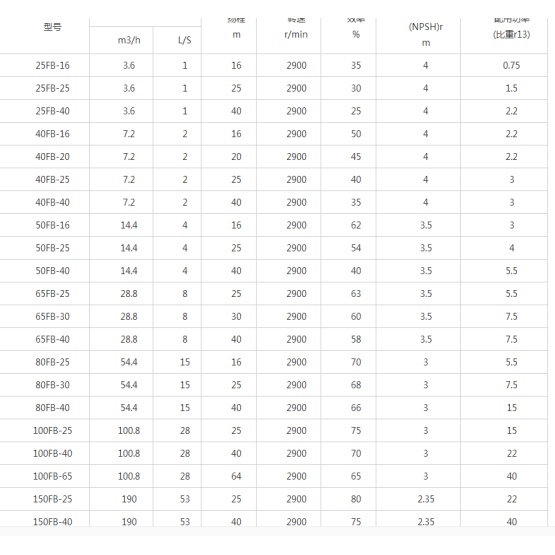

Corrosion resistant chemical pump technical parameters

Flow rate: 3.6 ~ 200m3 / h;

Head: 15 ~ 64m;

Speed: 2900r/min;

Power: 0.75 ~ 55KW;

Import diameter: 25 ~ 150mm;

High working pressure: 2.0Mpa.

Corrosion resistant chemical pump model meaning

Example: 100FB-37A

100-pump suction diameter (mm)

F-single-stage single-stage cantilever type corrosion-resistant centrifugal pump.

The B-pump is in contact with the conveying medium and the overcurrent portion is made of stainless steel 1Cr18Ni9Ti.

37-pump design point lift value (m)

A-the outer diameter of the impeller is cut for the first time.
