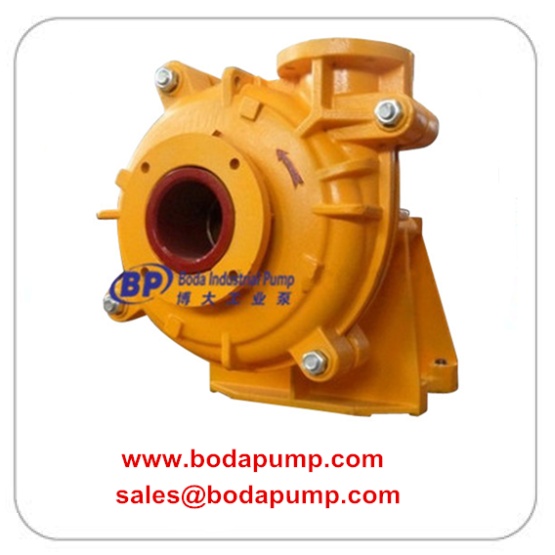

Electric Power Single stage Slurry Pumps
| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: BM BH
Working Pressure: High Pressure Pump
Position Of Pump Shaft: Horizontal Pump
Impeller: Closed
Material: A05 A07 A49
Origin: Shijiazhuang
Drive Type:: CV, DC, Zv, Cr
Color: As Your Requirement
Package: In Woodenc Case Or As Your Requirement
Power: Electric Or Diesel
Model No.: BM BH
Additional Info
Packaging: In Wooden case or as your requirement
Productivity: 300sets/month
Brand: Boda
Transportation: Ocean,Land,Air
Place of Origin: Shijiazhuang
Certificate: ISO
Product Description
Product Description
The high chrome slurry pump discharge outlet of the centrifugal slurry pump can be adjusted with rotation interval of 45 degree, the pumps can be operated in series and driven with belt. The shaft seal can adopt expeller type shaft sealing, gland packing assembly and mechanical sealing.
Features
1. Double casings design centrifugal slurry pump, wide passage for solids;
2. Bearing assembly & frame: Both standard & high capacity type available. A large diameter shaft with a short overhang minimizes deflection and vibration. Heavy duty roller bearing are housed in a removable bearing cartridge. Pump body is fastened with the frame by minimum bolts. Impeller adjustment is provided in a convenient position below the bearing assembly.
3. Impeller & liner material: high chrome white iron, etc.
4. Impeller type: open or closed
5. Interchangeable wet parts material: High chrome alloy metal: PH: 5-12
6. Shaft seal: Packing seal, centrifugal seal, mechanical seal;
7. Discharge branch: 8 positions in each 45°;
8. Driving type: V-belt, flexible coupling, gearbox, hydraulic coupler, etc..
Horizontal Abrasion & Corrosion Resistant Slurry Pump Performance Table:
|
Type
|
Allowable Mating Max.Power(kw)
|
Clear Water Performance
|
Impeller
|
||||||
|
Capacity Q
|
Head
H
(m) |
Speed
n
(r/min) |
Max EFF η(%)
|
NPSH)
(m) |
No of Vanes
|
Impel Dia(mm)
|
|||
|
(m3/h)
|
(L/S)
|
||||||||
|
1.5/1B-BH
|
15
|
12.6-28.8
|
3.5-8
|
6-68
|
1200-3800
|
40
|
2-4
|
5
|
152
|
|
2/1.5B-BH
|
15
|
32.4-72
|
9-20
|
6-58
|
1200-3200
|
45
|
3.5-8
|
5
|
184
|
|
3/2C-BH
|
30
|
39.6-86.4
|
11-24
|
12-64
|
1300-2700
|
55
|
4-6
|
5
|
214
|
|
4/3C-BH
|
30
|
86.4-198
|
24-55
|
9-52
|
1000-2200
|
71
|
4-6
|
5
|
245
|
|
4/3D-BH
|
60
|
||||||||
|
6/4D-BH
|
60
|
162-360
|
45-100
|
12-56
|
800-1550
|
65
|
5-8
|
5
|
365
|
|
6/4E-BH
|
120
|
||||||||
|
6/4D-BH
|
60
|
180-396
|
50-110
|
7-61
|
600-1600
|
55
|
3-8
|
4
|
372
|
|
6/4E-BH
|
120
|
||||||||
|
8/6E-BH
|
120
|
360-828
|
100-230
|
10-61
|
500-1140
|
72
|
2-9
|
5
|
510
|
|
8/6R-BH
|
300
|
||||||||
|
8/6E-BH
|
120
|
360-828
|
100-230
|
7-52
|
400-1000
|
70
|
2.5-6
|
4
|
536
|
|
8/6R-BH
|
300
|
360-828
|
100-230
|
7-52
|
400-1000
|
70
|
2.5-6
|
4
|
536
|
|
10/8ST-BH
|
560
|
612-1368
|
170-380
|
11-61
|
400-850
|
71
|
4-10
|
5
|
686
|
|
12/10ST-BH
|
560
|
936-1980
|
260-550
|
7-68
|
300-800
|
82
|
6
|
5
|
762
|
|
14/12ST-BH
|
560
|
1260-2772
|
350-770
|
13-63
|
300-600
|
77
|
3-10
|
5
|
965
|
|
16/14ST-BH
|
560
|
1368-3060
|
380-850
|
11-63
|
250-550
|
79
|
4-10
|
5
|
1067
|
|
16/14TU-BH
|
1200
|
||||||||
|
10/8E-BM
|
120
|
540-1440
|
150-400
|
14-60
|
600-1100
|
73
|
4-10
|
5
|
549
|
* Dimensionally Interchangeable with:
BM ≈Warman®M
BH≈Warman®AH
Horizontal Abrasion & Corrosion Resistant Slurry Pump Structure:
Horizontal Abrasion & Corrosion Resistant Slurry Pump Application:
