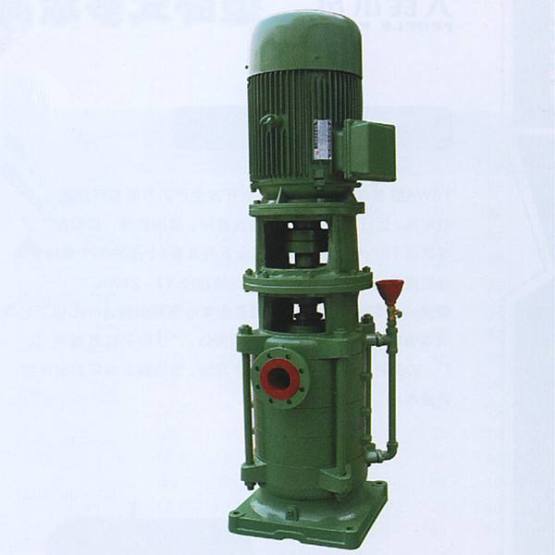

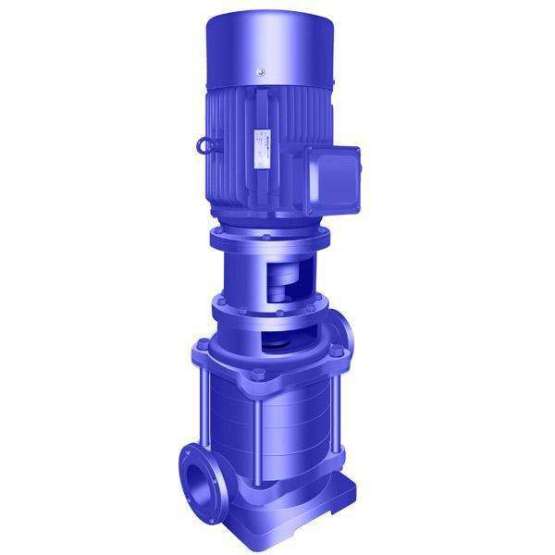

DL vertical multistage centrifugal pump

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: BODA-088

Product Name: S Series Double Suction Pump


Additional Info


Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai


Product Description

DL vertical multistage centrifugal pump 4

Overview of DL Vertical Multistage Centrifugal Pump

      DL vertical multi-stage centrifugal pump is a new product developed by our company according to China's high-rise building water supply and drainage and GB6245-98 standard of the National Fire Protection Bureau. This type of pump is highly efficient because it adopts an excellent hydraulic model with high efficiency and energy saving. The performance range is wide, and the user's use requirements are better met. In addition, the pump adopts vertical and segmented structure, and the operation is safe, stable, long life, small floor space, convenient for safe maintenance. . The DL vertical multistage centrifugal pump is a hydraulic model of the IS-type pump recommended by the state for high-efficiency energy-saving products. It is a vertical multi-stage multi-segment structure. The screw clamps the inlet section, the middle section and the outlet section into one body. Each stage of the pump is equipped with an impeller and a water guide vane. The axial force is solved by the hydraulic balance method, and the residual axial force is received by the ball bearing and lubricated with grease. The shaft seal is made of soft packing or mechanical seal. The product implements JB/T2727-93 "Vertical multistage centrifugal pump type and basic parameters" standard, mainly for sucking diluted, clean, non-corrosive, non-explosive clean water and physicochemical properties similar to water without solid particles Or a liquid of fiber. The company's products are all designed and optimized by computer. The company has strong technical strength, rich production experience and perfect testing methods to ensure the stability and reliability of product quality.

DL type vertical multistage centrifugal pump application range

It is widely used in fire protection, domestic water supply, and air conditioning unit circulation and cooling water transportation in high-rise buildings.

DL vertical multistage centrifugal pump product features

1. Advanced hydraulic model: high efficiency and wide performance range.

2. The structure is novel and the operation is reliable: the balance drum is eliminated, and the axial force is hydraulically balanced, which completely solves the problem that the balance drum is easy to rust, easy to bite and easy to wear, and the operation is more reliable.

3, less operation, maintenance costs: the use of high-quality mechanical seals, wear-resistant, no leakage, long service life, low failure rate, with less operating and maintenance costs.

4. Smooth operation and low noise: The low-speed motor is used to make the pump run smoothly and the noise is lower.

5, vertical structure, small footprint.

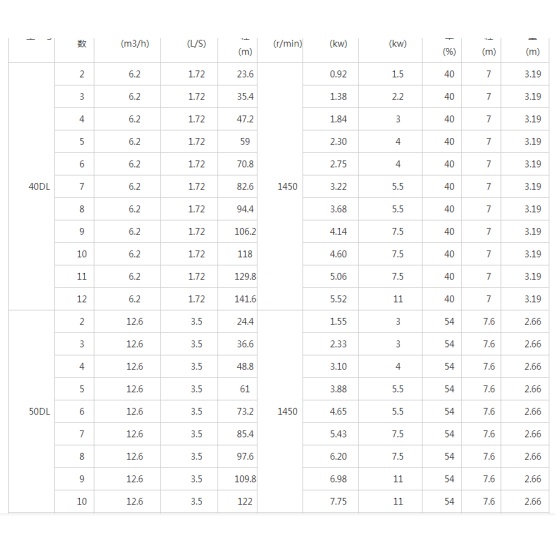

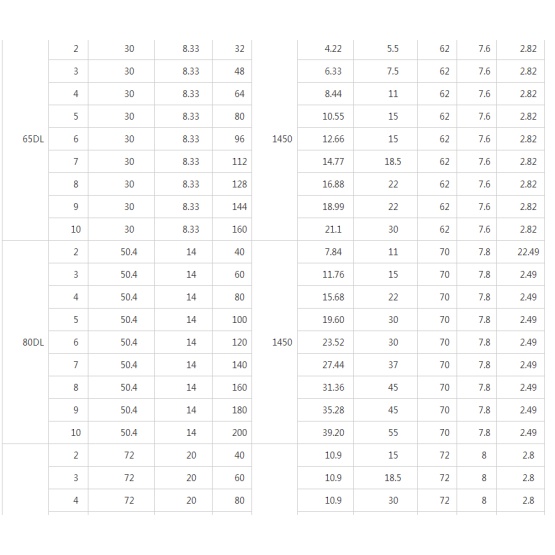

DL vertical multistage centrifugal pump technical parameters

Flow rate: 4.2-504m3/h;

Head: 24-240m;

Power: 1.5-450kw;

Speed: 1480r/min;

Caliber: φ40-φ250;

Temperature range: 0-+90 °C;

Working pressure: ≤2.4Mpa.

DL vertical multistage centrifugal pump product introduction

      DL, DLR vertical multistage centrifugal pump is a new multi-stage pump developed by Yangzijiang Pump Co., Ltd. according to the actual needs of the high-rise building water supply market and the National Fire Bureau GB 6245 "Fire Pump Performance Requirements and Test Methods". DL vertical multistage centrifugal pumps are used to transport media that are free of hard particles and have similar physicochemical properties to water. The flow range is 5 to 360 m3/h, the lift range is 22 to 300 m, the supporting power range is 1.5 to 220 KW, and the aperture range is φ40 to φ200 m. The outlet of the same pump can be set to 1 to 5 outlets, and the low speed is n=1450r/min.

Model meaning of DL vertical multistage centrifugal pump

For example: 80DL (DLR) × 4

80-pump suction port nominal diameter (mm)

DL-vertical multi-stage segmented centrifugal pump

DLR-vertical multi-stage segmented hot water centrifugal pump

4-pump series

DL type vertical multistage centrifugal pump use conditions

1. The medium used should be similar to water, with a kinematic viscosity <150mm2/s, and no hard particles, no corrosive properties;

2. The altitude of the DL vertical multistage centrifugal pump is <1000 meters. When it exceeds the time, it should be put in order, so that the factory can provide you with more reliable products;

3, the medium use temperature -15 ° C ~ 120 ° C;

4. The working pressure of the large system is ≤2.5MPa;

5. The ambient temperature should be lower than 40 °C and the relative humidity should be lower than 95%.

DL vertical multistage centrifugal pump product features

      DL vertical multi-stage centrifugal pump adopts domestic excellent high-efficiency and energy-saving hydraulic model, with high efficiency, smooth performance curve and wide operating range, in line with the relevant regulations of the fire department, to meet the needs of different users; DL vertical multi-stage centrifugal pump It adopts vertical sectional structure and has the advantages of stable operation, low noise, long service life, less floor space, convenient installation and maintenance.

Main use of DL vertical multistage centrifugal pump

      DL vertical multistage centrifugal pump is mainly used for high-rise building life water supply, fire-fighting constant pressure water supply, automatic spray water, automatic water curtain water supply, etc. It can also be used for water supply and drainage of factories and mines, long-distance water supply, and various equipments. Various production process waters, etc. The medium temperature of the DL vertical multistage centrifugal pump does not exceed 80 °C, and the medium temperature of the DLR vertical multistage centrifugal pump does not exceed 120 °C.
