Basic Info

Model No.: BODA-057

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Horizontal Split Pumps

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pumps

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

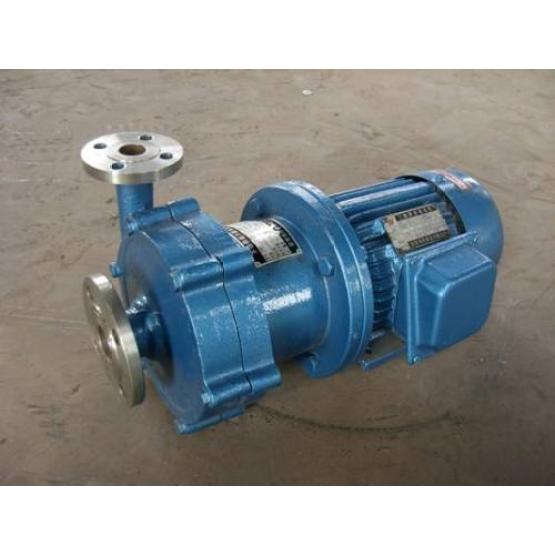

CQB Fluorine Plastic Alloy Magnetic Pump

1.CQB Fluorine Plastic Alloy Magnetic Pump

2. Flow rate up to 100m3/h

3. Delivery head up to 32.0m

4. Power up to 18.5 kw 2900 r/min

5 Static seal replaces active seal, achieving complete Seal

1 Summarize:

CQB steel fluorine plastic magnetic pump seal removed, the use of indirect magnetic coupling drive, completely eliminating the drip of trouble, not to use contaminated sites.

As part of the pump over current use "fluorine plastic" manufacturing. It can continuously transport the concentration of acids, bases, strong oxidizing agents and other corrosive media, no damage, with fully sealed, no leaks, corrosion resistance and other advantages.

2 Structure:

CQB steel fluorine plastic magnetic pump to replace the static seal dynamic seal, the use of active magnetic coupling drive directly onto the motor shaft, pump room completely closed, indirect drive shaft through magnetic coupling with a magnet on the impeller rotation, with the structure compact, good looks, safety and energy-saving features.

The pump although the contact with the liquid part of the fluorine plastic, but the pump casing is metal, so the pump enough to withstand the weight of the pipe and mechanical shock.

3 Application:

Widely used in chemical, rare earth separation, pesticides, dyes, medicine, papermaking, electroplating, electrolysis, pickling, radio, foil, research institutions, industry, defense industry and other transport any concentration of acid, alkaline, oils, rare and precious liquid, toxic liquid, volatile chemical media. Particularly susceptible to leakage, flammable, explosive corrosive liquid.
