Product Description

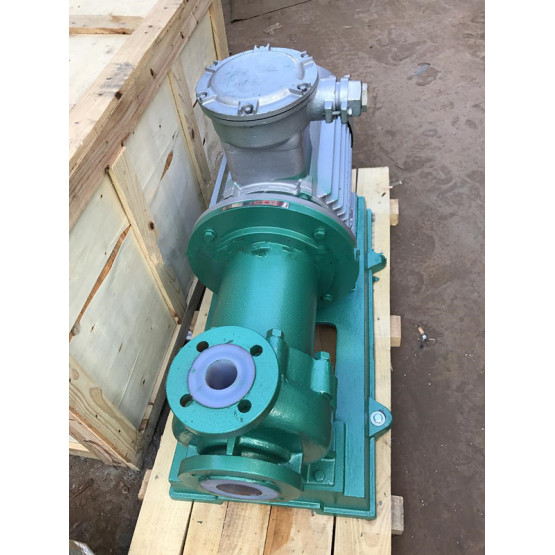

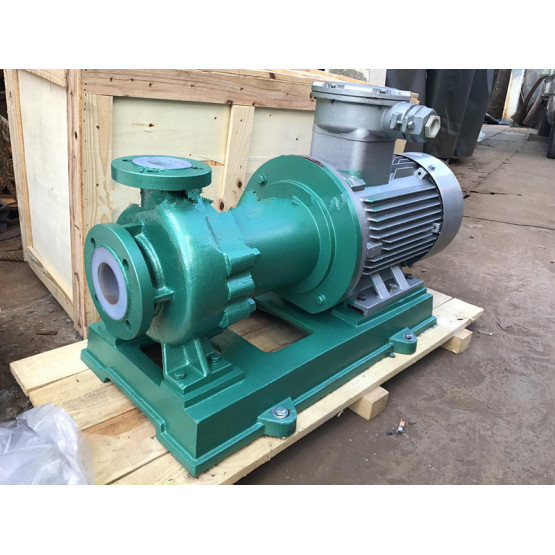

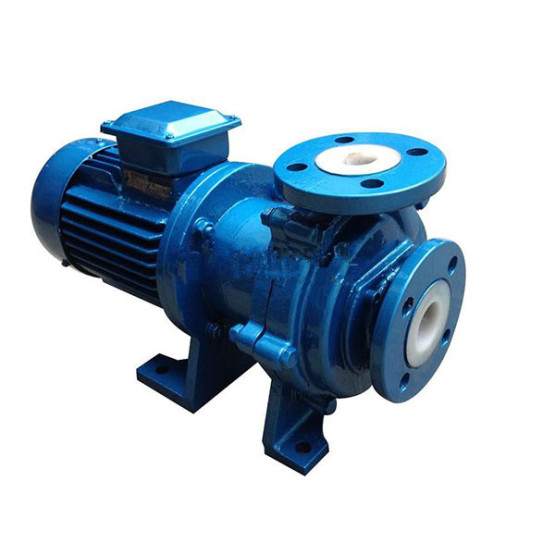

QB-F type fluoroplastic magnetic pump overview

      CQB-F fluoroplastic magnetic pump is a new product developed by the unit. It is also imported from foreign advanced technology and made of polyvinylidene fluoride. This material is the world's excellent corrosion-resistant material. The magnetic pump used in this material is used. Wide range, strong corrosion resistance, high mechanical strength, no aging, no decomposition of toxins.

Features

      The design of the fluoroplastic magnetic pump not only has the advantages of compact structure, beautiful appearance, small size, low hum, and reliable operation, and its overcurrent components all adopt the excellent "plastic king" in the world. Made of fluoroplastic), the isolation sleeve is made of special materials and has high strength mechanical properties, which eliminates the phenomenon of magnetic eddy current in ordinary magnetic pumps. Therefore, the fluoroplastic magnetic pump can transport any concentrated (strong) acid, alkali, oxidant and other corrosive media without damage. The leak-proof design eliminates the shaft seal and uses the magnetic coupling to indirectly drive, completely eliminating the trouble of dripping, and never polluting the use site.

      Classification: At present, the fluorine plastic magnetic pump produced by domestic manufacturers mainly includes: CQB type fluorine plastic magnetic pump, ZMD fluorine plastic self-priming magnetic pump, IMD type fluorine plastic magnetic drive pump and so on. Since the overcurrent portion of the pump is made of "fluoroplastic alloy". It can continuously transport any concentration of corrosive medium such as acid, alkali and strong oxidant without any damage. CQB-F fluoroplastic magnetic pump is unique in design, no mechanical shaft seal is required, absolutely no leakage, liquid over-current parts are made of fluoroplastic, ceramic, fluororubber and other materials. The pump body is fixed with metal material, so the pump body is enough to support the pipeline. The weight, the use of maintenance and convenience.

working principle

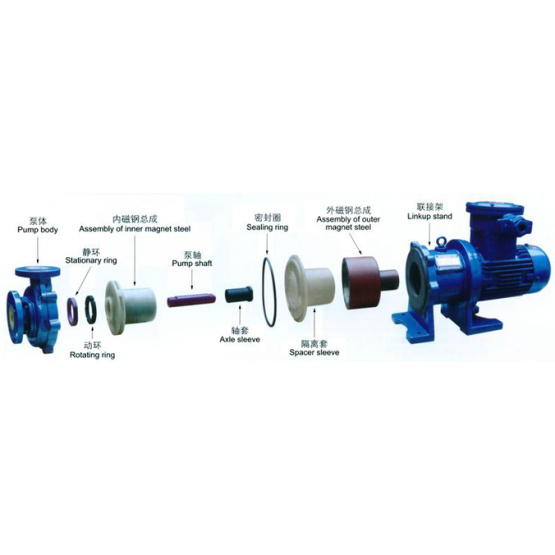

      The driving device is directly mounted on the motor shaft by the active magnet coupling, the pump chamber is completely closed, and the impeller with the magnet on the pump shaft is indirectly driven by the magnetic coupling to be compact, safe and energy-saving. The rugged pump body structure is made of fluoroplastic, but the pump casing is made of metal, so the pump body can withstand the weight of the pipe and resist mechanical shock. The fluoroplastic magnetic pump consists of a pump, a magnetic actuator and a motor. The key component magnetic actuator consists of an outer magnetic rotor, an inner magnetic rotor and a non-magnetic isolation sleeve. When the motor drives the outer magnetic rotor to rotate, the magnetic field can penetrate the air gap and the non-magnetic material, and drive the inner magnetic rotor connected with the impeller to rotate synchronously to realize the non-contact transmission of the power, and convert the dynamic seal into a static seal. Because the pump shaft and the inner magnetic rotor are completely closed by the pump body and the isolation sleeve, the problem of [running, escaping, dripping and leaking" is completely solved, and the flammable, explosive, toxic and harmful medium of the refining and chemical industry is eliminated. The safety hazards have effectively guaranteed the physical and mental health and safe production of employees.

The main purpose

This product is widely used in: petrochemical, acid and alkali, non-ferrous metal smelting, pickling process for automobile manufacturing, rare earth separation, pesticides, dyes, medicine, paper, electroplating, radio and other industries.

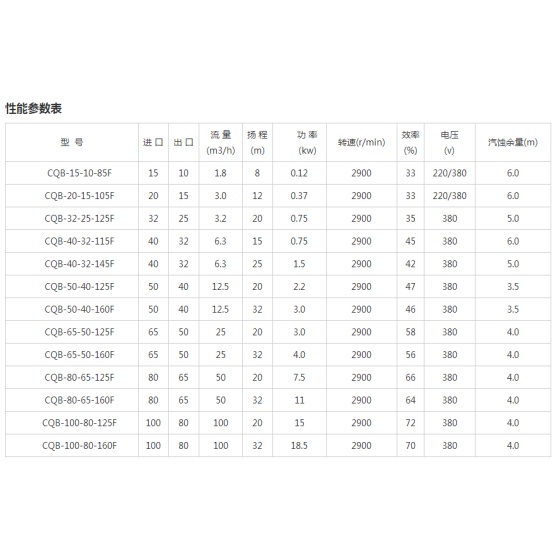

Performance parameter

Flow rate: 1.8-100m3/h

Head: 8-32m

Motor power: 0.12-18.5KW

Speed: 2900r/min

Use temperature: -20 ° C to 100 ° C.

Model meaning

For example: CQB50-32-160F

CQB-magnetic drive centrifugal pump

50-suction port diameter (mm)

32-outlet diameter (mm)

160-impeller nominal diameter (mm)

F-fluoroplastic
