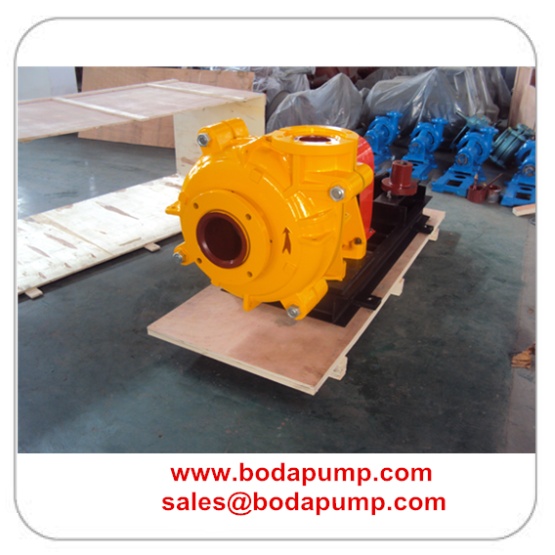

Centrifugal Slurry Pump with 3 inch

Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Min. Order:	1 Set/Sets
Delivery Time:	20 Days

Contact Now

Basic Info

Model No.: BM BH

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Model No.: BM BH

Additional Info

Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Certificate: ISO

Product Description

Product description:

Ductile iron frame and cover plate
High chromium alloy and rubber impeller/ cover and frame plate liner/throat bushing
Highly wear resistant and abrasive resistant rubber parts
Gland seal with packing/centrifugal seal with metal/rubber expeller ring/mechanical ring
Transferring slurries with high erosion and in high density in industrial sectors such as of metallurgy, mining, coal, power generation and building materials.
Our engineers available overseas
Used in many state owned enterprises and major international companies
Advanced means of design: CFD calculation and full 3D design.

Material:

Parts	Material	Specification
Volute Liner,Impeller,Throatbush,FPL insert	Hard Metal	A05:23~30% A07:14~18% A12:30% A49:27~29%A33:33~37% Chrome White Iron
	Rubber	R26 R08 R55 R38 R33 Natural Rubber; S01 EPDM Rubber; S21;Butyl;S31;Hypalon; S44; Neoprene
Expeller&Expeller Ring	Metal	A05 23~30% High Chrome Iron G01: Grey Iron
	Rubber	R26 R08 R55 R38 R33 Natural Rubber
Stufing Box	Metal	A05 23~30% High Chrome Iron G01: Grey Iron
Frame Plate,Cover Plate,Base Bearing housing	Metal	G01 Grey Iron D21 Ductile Iron
Shaft	Carbon Steel	Type 1045(ASTM)
Shaft Sleeve,Lantern Rings,Restrictor ,Neck Ring,Gland Bolts	Stainless Steel	3Cr13,304SS,316SS
Joint Ring&Seals	Rubber	R26 R08 R55 R38 R33 Natural Rubber; S01 EPDM Rubber; S21;Butyl;S31;Hypalon; S44; Neoprene

Horizontal Abrasion & Corrosion Resistant Slurry Pump Performance Table:

Type	Allowable Mating Max.Power(kw)	Clear Water Performance						Impeller
		Capacity Q		Head H (m)	Speed n (r/min)	Max EFF η(%)	NPSH) (m)	No of Vanes	Impel Dia(mm)
		(m3/h)	(L/S)
1.5/1B-BH	15	12.6-28.8	3.5-8	6-68	1200-3800	40	2-4	5	152
2/1.5B-BH	15	32.4-72	9-20	6-58	1200-3200	45	3.5-8	5	184
3/2C-BH	30	39.6-86.4	11-24	12-64	1300-2700	55	4-6	5	214
4/3C-BH	30	86.4-198	24-55	9-52	1000-2200	71	4-6	5	245
4/3D-BH	60
6/4D-BH	60	162-360	45-100	12-56	800-1550	65	5-8	5	365
6/4E-BH	120
6/4D-BH	60	180-396	50-110	7-61	600-1600	55	3-8	4	372
6/4E-BH	120
8/6E-BH	120	360-828	100-230	10-61	500-1140	72	2-9	5	510
8/6R-BH	300
8/6E-BH	120	360-828	100-230	7-52	400-1000	70	2.5-6	4	536
8/6R-BH	300	360-828	100-230	7-52	400-1000	70	2.5-6	4	536
10/8ST-BH	560	612-1368	170-380	11-61	400-850	71	4-10	5	686
12/10ST-BH	560	936-1980	260-550	7-68	300-800	82	6	5	762
14/12ST-BH	560	1260-2772	350-770	13-63	300-600	77	3-10	5	965
16/14ST-BH	560	1368-3060	380-850	11-63	250-550	79	4-10	5	1067
16/14TU-BH	1200
10/8E-BM	120	540-1440	150-400	14-60	600-1100	73	4-10	5	549
