Basic Info

Model No.: BODA-188

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

1. A non-explosive liquid that is thin, clean, free of solid particles and fibers, and can transport water and cooling aqueous solutions and cutting lubricating fluids.

2, liquid temperature: normal temperature type -15 ° C ~ +70 ° C

3, hot water type +70 ° C ~ +120 ° C

Description

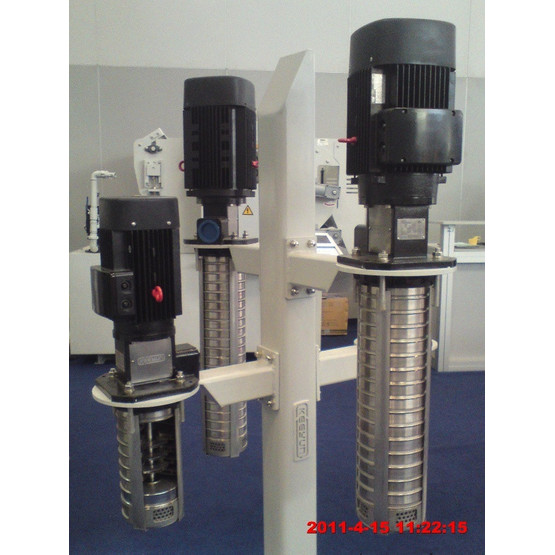

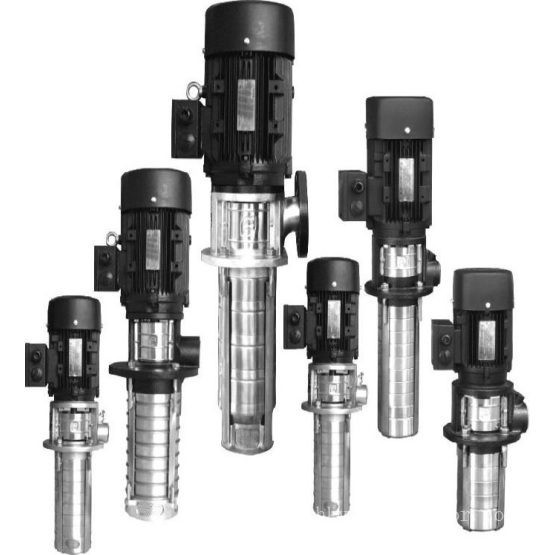

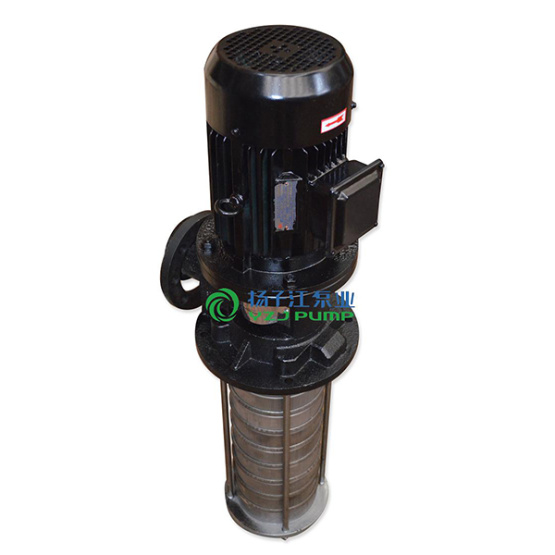

       CDLK/CDLKF is a self-priming vertical multi-stage centrifugal liquid pump with standard motor. The motor shaft is directly connected to the pump shaft through the pump head. The pump can be equipped with intelligent protector according to the need, dry and lack of phase. , overload, etc. for effective protection. In order to meet the installation depth of the sink or container, the cavity can be installed to change the length of the pump itself. For different lengths of the series, see the size and weight table and the available product range table.

Application range

       CDLK/CDLKF is used for conveying machine coolant, lubricating fluid, condensate transfer, industrial cleaning equipment and other suitable immersion pumps. Suitable for different temperature, flow and pressure ranges, CDLK is suitable for non-corrosive liquids, CDLKF is suitable For mildly corrosive liquids.

       Specifically used in electric sparks, lathes, grinding machines, machining centers, cooling devices, industrial cleaning equipment, filtration systems, etc.

Motor

The motor is a fully enclosed, air-cooled two-pole standard motor.

Protection level: IP55

Insulation class: F

Standard voltage: 50HZ: 1*220-230/240V

                    3*200/346V

                    3*220-240/380-415V

                    3*220-225/380-440V

Motors of other voltages are available on request.

Single-phase voltage is available from 0.37-2.2kw.

Operating conditions

A non-explosive liquid that is thin, clean, free of solid particles and fibers, and can transport water and cooling aqueous solutions and cutting lubricants.

Liquid temperature: normal temperature type -15 °C ~ +70 °C hot water type +70 °C ~ +120 °C

Performance curve

1. All curves are based on measurements of the motor at a constant speed of 2900 r/min.

2. The curve tolerance is in accordance with ISO9906, see the performance graph.

3. Test with 20 ° C air-free water, kinematic viscosity of 1mm2 / s.

4. The use of the pump refers to the performance range of the thickening line to prevent overheating of the flow of excess water and excessive flow to overload the motor.
