Basic Info

Model No.: BODA-080

Product Name: S Series Double Suction Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

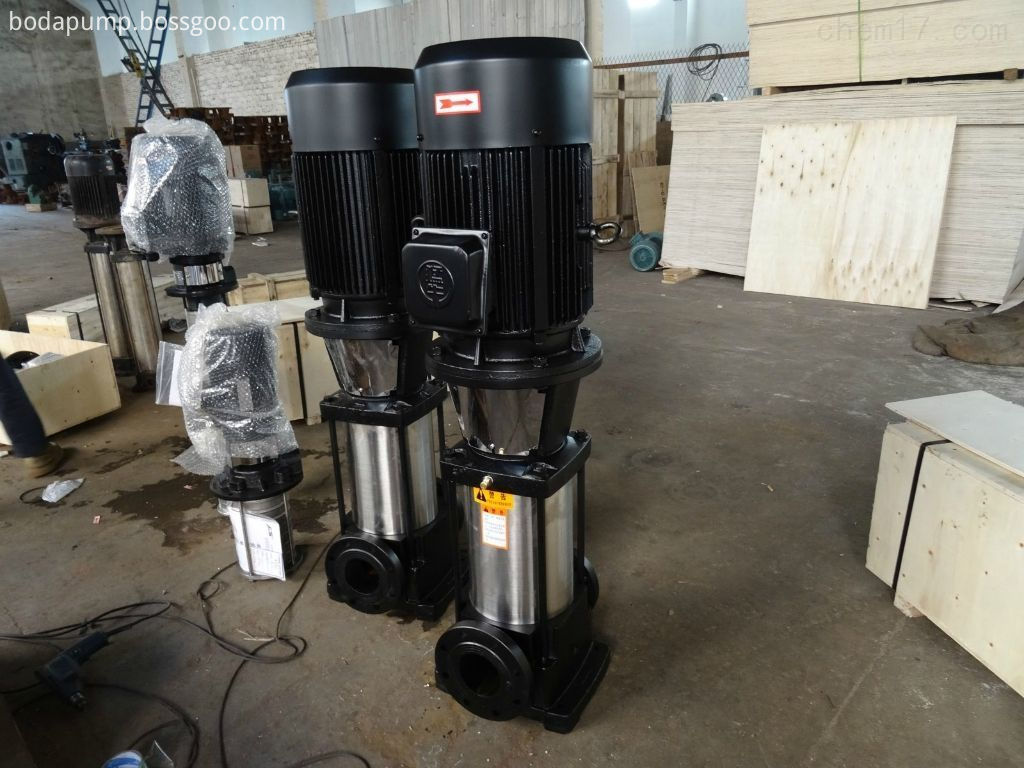

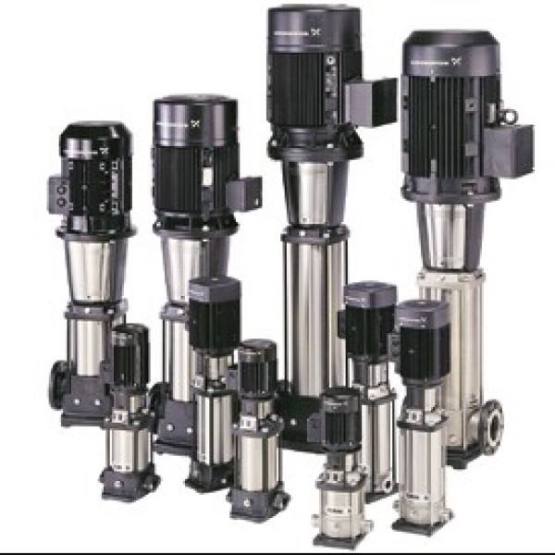

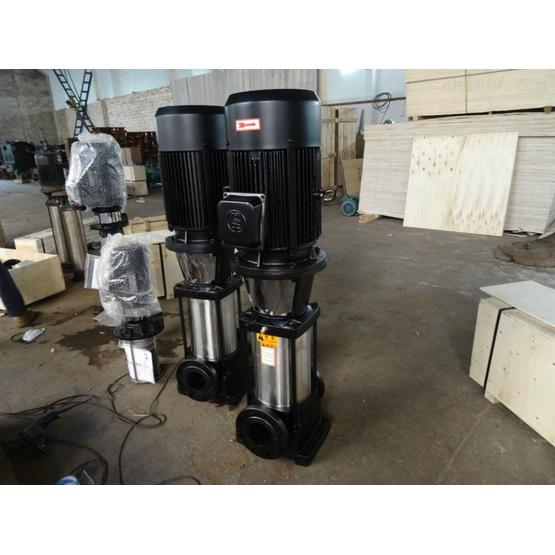

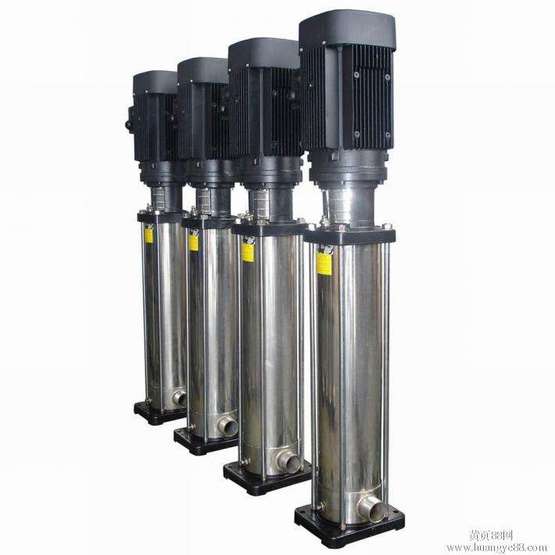

CDLF vertical stainless steel multistage centrifugal pump product overview

      CDLF series light vertical stainless steel multi-stage centrifugal pump (hereinafter referred to as pump) is a non-self-priming vertical multi-stage centrifugal pump designed and manufactured by drawing on advanced technology at home and abroad. It adopts standard vertical motor and quick-loading mechanical seal. Convenience. The over-flow section of the pump is made of stainless steel (304\316) and is suitable for mildly corrosive media. This product can replace foreign CR, CRN and other similar products. After the products are put on the market, they are highly loved by users because of their high efficiency, energy saving, reliable quality and wide range of use.

CDLF vertical stainless steel multistage centrifugal pump product features

1. Adopt excellent hydraulic model and advanced manufacturing process to greatly improve the performance and service life of the pump.

2. Since the shaft seal is made of a mechanical seal of cemented carbide and fluororubber, the reliability of the pump operation and the temperature of the transport medium can be improved.

3. The over-flow part of the pump is stamped and welded with stainless steel plate, which makes the pump suitable for mild corrosive media.

4. The overall structure is compact, small in size, light in weight, low in noise, remarkable in energy saving effect, and convenient in maintenance.

5. The water inlet and outlet of the pump are located on the same horizontal line of the pump seat and can be directly used in the pipeline.

6, using a standard motor, the user can easily equip the motor as needed.

7. It can be equipped with intelligent protector according to the needs of users to effectively protect the pump from dry running, phase loss and overload.

CDLF vertical stainless steel multistage centrifugal pump product use

Water supply: water plant filtration and transportation, water plant district water supply, supercharged supercharged, high-rise building supercharged.

Industrial pressurization: process water system, cleaning system, high pressure flushing system, fire fighting system.

Industrial liquid transport: cooling and air conditioning systems, boiler feed water and condensing systems, machine tool packages, and acidic and alkaline media delivery.

Water treatment: water treatment systems for ultrafiltration systems, reverse osmosis systems, distillation systems, separators and swimming pools.

Irrigation: irrigation, sprinkler irrigation, drip irrigation.

CDLF vertical stainless steel multistage centrifugal pump conveying medium

1. A non-flammable and explosive medium that is thin, clean, and free of solid particles or fibers.

2. Such as mineral water, softened water, pure water, clear oil and other light chemical media.

3. The main material of the pump is stainless steel, which can be used to pump mild corrosive media.

CDLF vertical stainless steel multistage centrifugal pump technical parameters

Flow rate: 4.2-504m3/h;

Head: 24-240m;

Power: 1.5-450kw;

Speed: 1480r/min;

Caliber: φ40-φ250;

Temperature range: 0-+90 °C;

Working pressure: ≤2.4Mpa.
