Basic Info

Model No.: BODA-026

Impeller Number: Single-Stage Pump

Working Pressure: High Pressure Pump

Influent Type of Impeller: Single Suction Pump

Position of Pump Shaft: Horizontal Pump

Pump Casing Combined: Horizontal Split Pumps

Mounting Height: Since Irrigation Centrifugal Pumps

Impeller: Open

Usage: Pumps

Product Name: DT Series Desulphurization Pump

Additional Info

Packaging: wooden box

Productivity: 500

Brand: BODA

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 500

Certificate: ISO9901

HS Code: 4101201190

Port: Tianjin,Qingdao,Shanghai

Product Description

we  are  Shijiazhuang Boda Industrial Pump Co.,Ltd  from  china .

we mainly operates pump & pump driven equipments, pump parts & resistance wearing castings, others hydraulic machinery, accessories etc. The products contain slurry pumps, API 610 petrol-oil & chemical pumps, waters pumps which have tens of series , more than one hundred varieties , thousands of models. They are widely used in mining, metallurgy, coal mining, electric power, petroleum, chemical , water supply and drainage industry and so on. Our company have senior engineers and classic technicians, have one slurry pump factory in shijiazhuang city , one API610 pump factory in Shenyang city, one chemical pumps factory in Dalian city .

if you have any needing on pump ,or have any needing on pump Components ,please feel free contact with us . we like to offer your our best price and best service for you .

Looking forward to cooperate with you .

Product Description

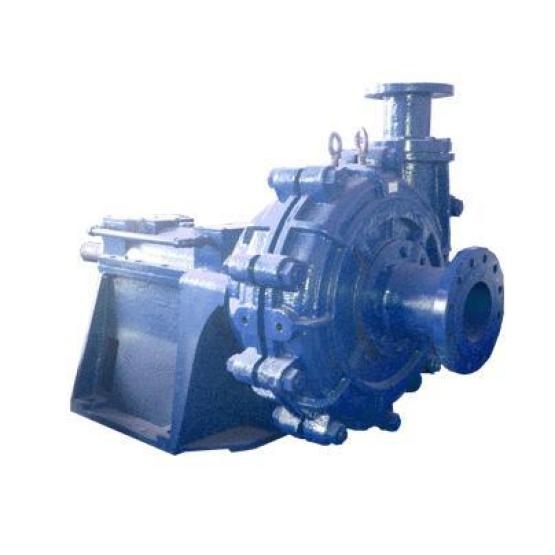

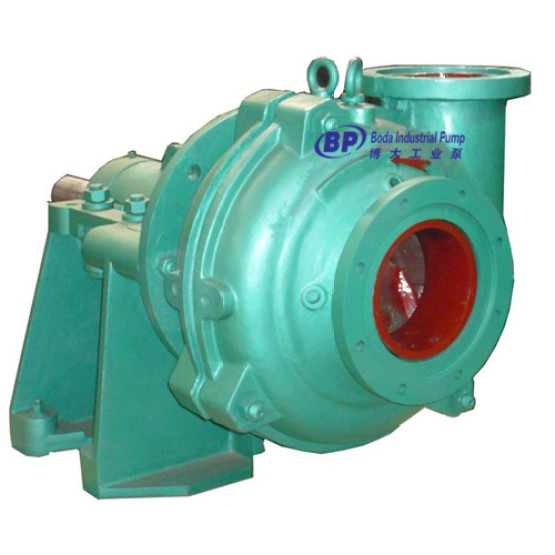

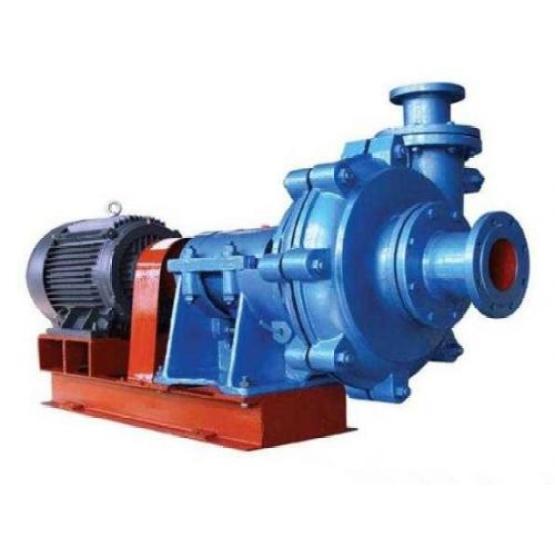

Type BL pumps are cantilevered, horizontal, centrifugal slurry pumps.They are suitable for delivering low abrasive, low density slurries for metallurgical, mining, coal and build material departments.The shaft seal is adopted both gland seal and centrifugal seal.

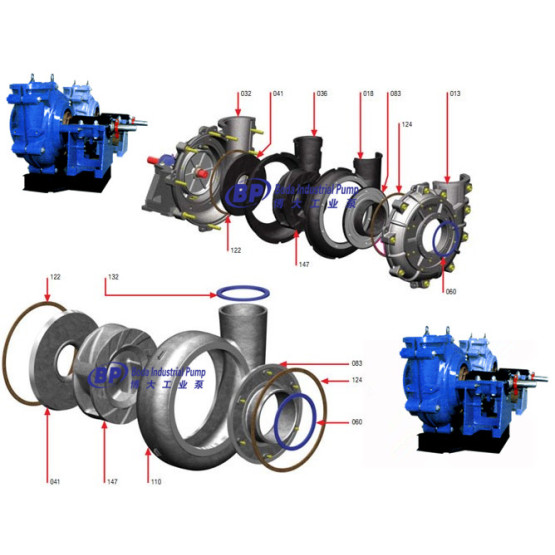

Type BL pumps are adopted high speed operating and so they have small volumes saving floor area.The frame plates have changeable, wear-resistant, metal liners or rubber liners and the impellers are made of wear-resistant metal or rubber (Rubber for frame plates, impellers of pumps with discharge dia. above 550mm.) The discharge position by request may be rotated 8 different angles at internal of 45 degrees for installation and application.

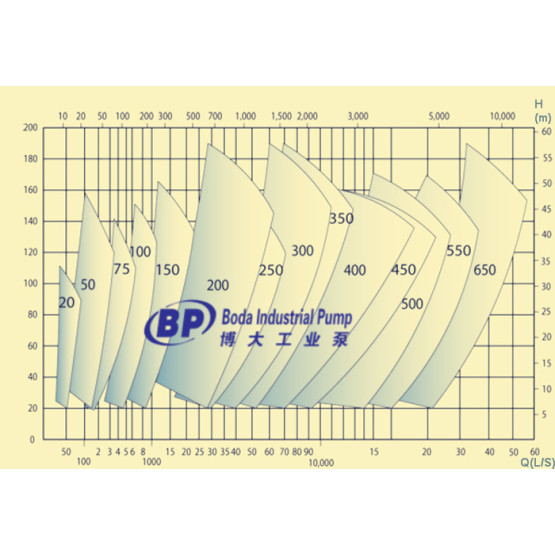

The pump type should be selected by reference to its performance curves and the selection of capacity range is between 40%~100%.(The corresponding capacity against the max.efficiency point at one speed is 100%.)
