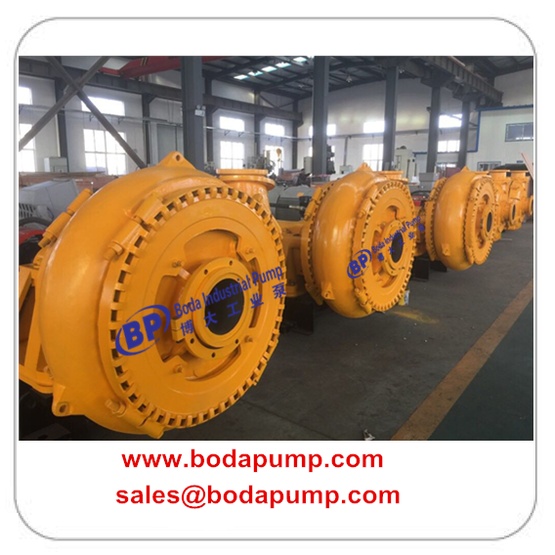

Barge Loading Usage Dredge Pump

Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Min. Order:	1 Set/Sets
Delivery Time:	20 Days

Contact Now

Basic Info

Model No.: TZG(H)

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Model No.: TZG(H)

Additional Info

Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Certificate: ISO

Product Description

Product Description:

The sand gravel pumps are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in Mining, explosive sludge in metal melting, Dredging in dredger and course of rivers, and other fields.

Gravel dredge pump is of single casing connected by means of clamp bands and wide wet-passage. The wet parts are made of Ni-hard and high chromium abrasion-resistance alloys. The discharge direction of pump can be oriented in any direction of 360 degree. This type of pump possesses the advantages of easy installation and operation, good performance of NPSH and abrasion resistance. Type TZGH pumps are high head ones.

Features:

Type TZG(H) pump is designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in tunnel shield and pipe-jacking.

Product Features:

-Wide Passage

-Single casing

- Discharge direction can be oriented at any degrees

Gravel Slurry Pump Structure:

Gravel Slurry Pump Performance Table:

Type	Capacity (l/s)	Head (m)	Speed (r/min)	Efficiency (%)	NPSHr (m)	Inlet Size (mm)	Outlet Size (mm)	Max.Diameter of flowed particle (mm)
100TZG-PD	10-70	3.5-51	600-1400	30-50	2.5-3.5	150	100	82
150TZG-PE	38-160	10-48	800-1400	50-60	3-4.5	200	150	127
200TZG-PS	60-272	13-50	500-1000	45-65	3-7.5	250	200	178
200TZGH-PS	100-360	28-80	500-950	60-72	2-5	250	200	180
250TZG-PF	100-420	11-58	400-850	50-70	2-4.5	300	250	220
250TZGH-PG	170-620	28-78	350-700	60-73	2-8	300	250	210
300TZG-PG	140-880	6-66	300-700	60-68	2-8	350	300	241
400TZG-PT	240-1060	9-48	250-500	60-72	3-6	450	400	254
