4 Inches Industry Mining Slurry Pump from China

Location: Home >Centrifugal Slurry Pump > 4 Inches Industry Mining Slurry Pump

4 Inches Industry Mining Slurry Pump

Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Min. Order:	1 Set/Sets
Delivery Time:	20 Days

Contact Now

Basic Info

Model No.: BM BH

Working Pressure: High Pressure Pump

Position Of Pump Shaft: Horizontal Pump

Impeller: Closed

Material: A05 A07 A49

Origin: Shijiazhuang

Drive Type:: CV, DC, Zv, Cr

Color: As Your Requirement

Package: In Woodenc Case Or As Your Requirement

Power: Electric Or Diesel

Model No.: BM BH

Additional Info

Packaging: In Wooden case or as your requirement

Productivity: 300sets/month

Brand: Boda

Transportation: Ocean,Land,Air

Place of Origin: Shijiazhuang

Certificate: ISO

Product Description

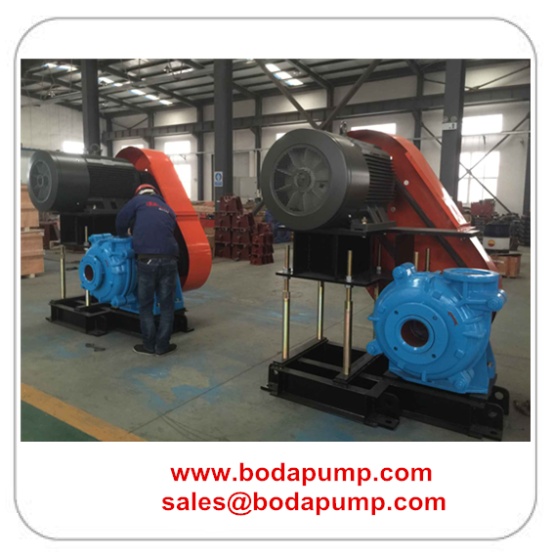

6/4 inch centrifugal slurry pump series BH(R) for gold mining
Widely used for delivering slurry with strong abrasion and high concentration for metallurgy, mines, coal and power plant, etc
Mining slurry pump

BH(R) series slurry pumps
Thicker wear parts
handling tough mining slurry
wear resistance
equivalent with world famous slurry pumps

Material:
high chrome A05 , A31 , A33 , A49 , Natural rubber etc
A49---used for lower PH condition especially for flue gas.(PH ≥ 4)
A33---transport plaster,nitric acid,vitriol,phosphate,etc. .(PH ≥ 1)
A05---used for higher wear condition with PH between 5-12.
Natural rubber---great wear resistance and corrosion resistance.

Advantages:
1.Our corrosion resistant slurry pump is heavy duty product,wet parts of which are mainly composed of natural rubber. It is characterized by great wear resistance,outstanding corrosion resistance and long service life.

2. It is flexible to select over current component materials .Except for natural rubber,customers can also choose other synthetic adhesive for special conditions according to their requirement .

3.With double casing structure ,our product is easy to replace the components and dismantle as well as cheap to maintain .

Sphere of applications:

Our corrosion resistance slurry pump is cantilevered centrifugal,suitable for conveying abrasive or corrosive

slurry ,extensively applied to metallurgy,mint,petroleum ,chemicals ,coal washing ,electric power ,

transportation ,river dredging ,building materials ,building materials,municipal works and so on .

Note:

1. The drive type can be classified into direct connection ,v-belt drive,gearbox reducer,fluid coupling drive,
variable frequency drive and more .

2. The discharge direction of our corrosion resistance slurry pump is oriented in any direction of the eight in accordance with the requirement in the specific working conditions. The discharge is settled upside usually if there is no requirement .

3. Three seal types are available , including packing seal , expeller seal and mechanical seal. The expeller seal is often used. Customers can also raise their requirement before placing the order.

Horizontal Abrasion & Corrosion Resistant Slurry Pump Performance Table:

Type	Allowable Mating Max.Power(kw)	Clear Water Performance						Impeller
		Capacity Q		Head H (m)	Speed n (r/min)	Max EFF η(%)	NPSH) (m)	No of Vanes	Impel Dia(mm)
		(m3/h)	(L/S)
1.5/1B-BH	15	12.6-28.8	3.5-8	6-68	1200-3800	40	2-4	5	152
2/1.5B-BH	15	32.4-72	9-20	6-58	1200-3200	45	3.5-8	5	184
3/2C-BH	30	39.6-86.4	11-24	12-64	1300-2700	55	4-6	5	214
4/3C-BH	30	86.4-198	24-55	9-52	1000-2200	71	4-6	5	245
4/3D-BH	60
6/4D-BH	60	162-360	45-100	12-56	800-1550	65	5-8	5	365
6/4E-BH	120
6/4D-BH	60	180-396	50-110	7-61	600-1600	55	3-8	4	372
6/4E-BH	120
8/6E-BH	120	360-828	100-230	10-61	500-1140	72	2-9	5	510
8/6R-BH	300
8/6E-BH	120	360-828	100-230	7-52	400-1000	70	2.5-6	4	536
8/6R-BH	300	360-828	100-230	7-52	400-1000	70	2.5-6	4	536
10/8ST-BH	560	612-1368	170-380	11-61	400-850	71	4-10	5	686
12/10ST-BH	560	936-1980	260-550	7-68	300-800	82	6	5	762
14/12ST-BH	560	1260-2772	350-770	13-63	300-600	77	3-10	5	965
16/14ST-BH	560	1368-3060	380-850	11-63	250-550	79	4-10	5	1067
16/14TU-BH	1200
10/8E-BM	120	540-1440	150-400	14-60	600-1100	73	4-10	5	549
